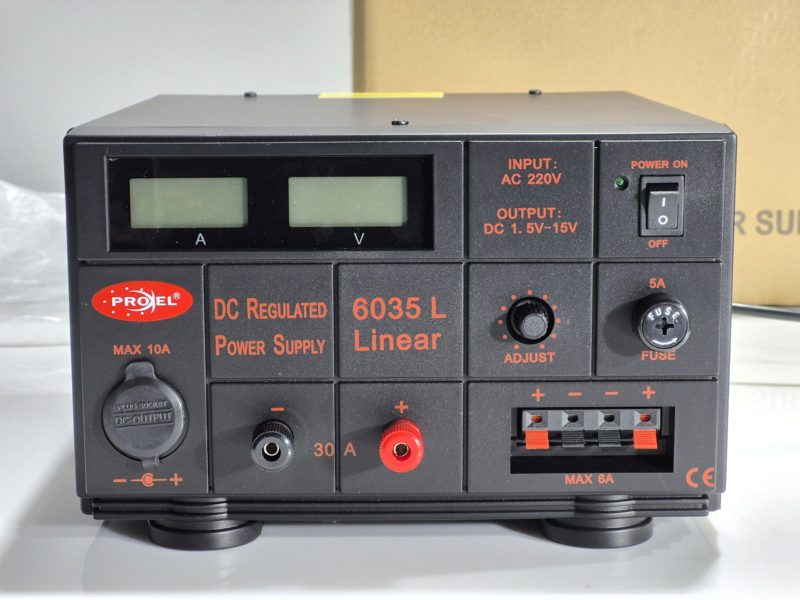

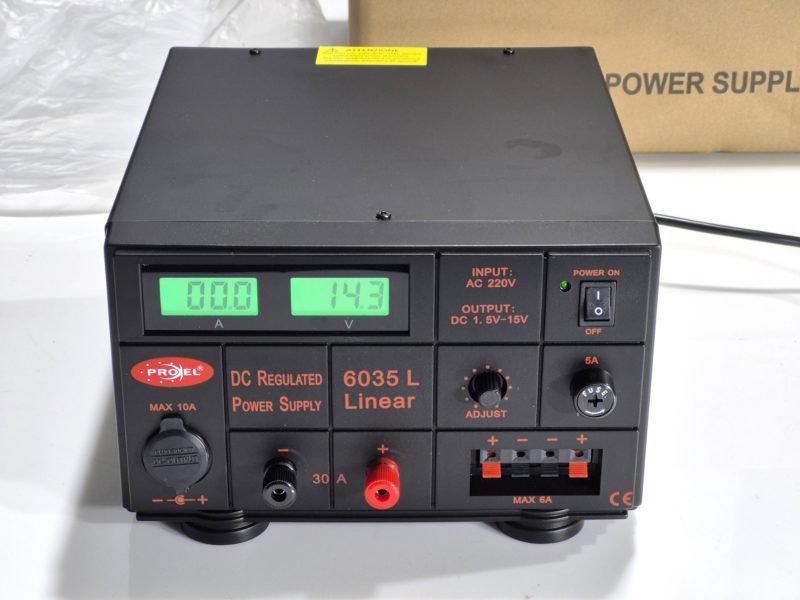

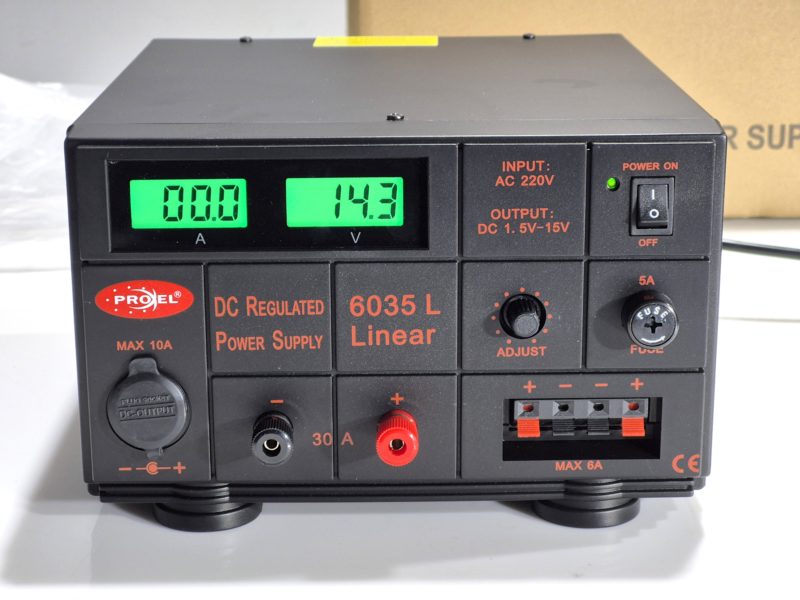

Proxel 6035-L Linear Power Supply



6035-L: This is a high quality linear transformer power supply, particularly suitable as a power source for professional radios, to exclude any disturbances generated by switching. The voltage is adjustable, and the new digital instrument allows you to always keep both the voltage and the absorption of the connected device under control, to maximize safety of use.

Traditional stabilized transformer power supply with 2 x digital LCD instruments.
It is equipped with current protection which intervenes when it exceeds the limit value, including in the case of short circuit

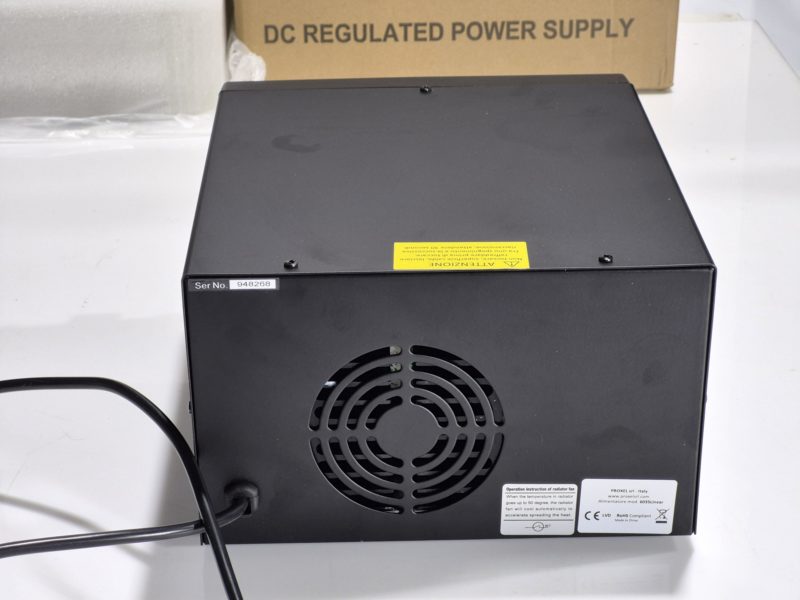

It contains a fan to improve heat exchange, it also has a cigarette lighter socket max 10 Ampere and convenient terminals for low absorption.
The potentiometer for regulating the output voltage is equipped with a convenient click at the value of 13.8 Volt.

Proxel 6035-L: Transformer Power Supply
Technology Type: Linear
Input: 220 Vac (50HZ)
Output Ampere: 25 Amp 13,8 Vcc cont. / 35 Amp Max
Output Voltage: 1.5 -15 Vdc adjustable
Stability: 1% from unloaded to full load
Ripple: 10 mV pp
Dimensions: mm W x H x D / 240 x 300 x 150
Weight: 8.4 KG
