Description

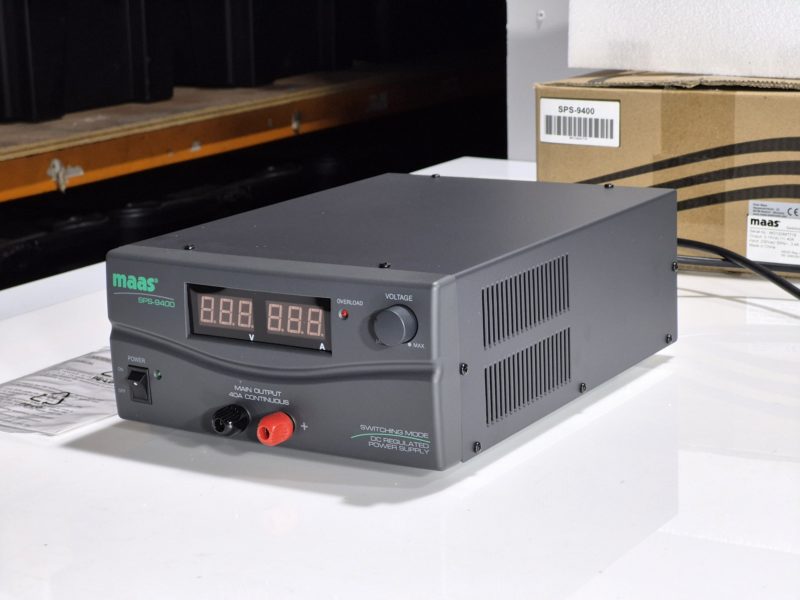

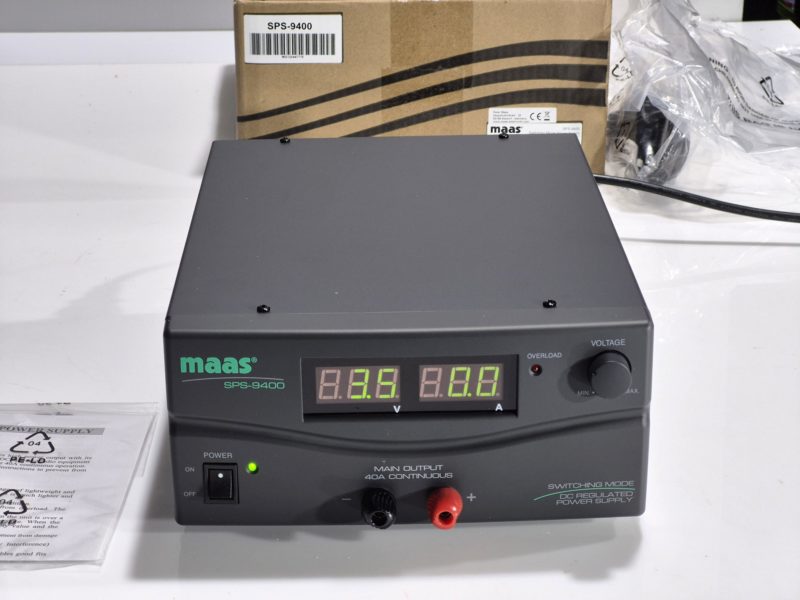

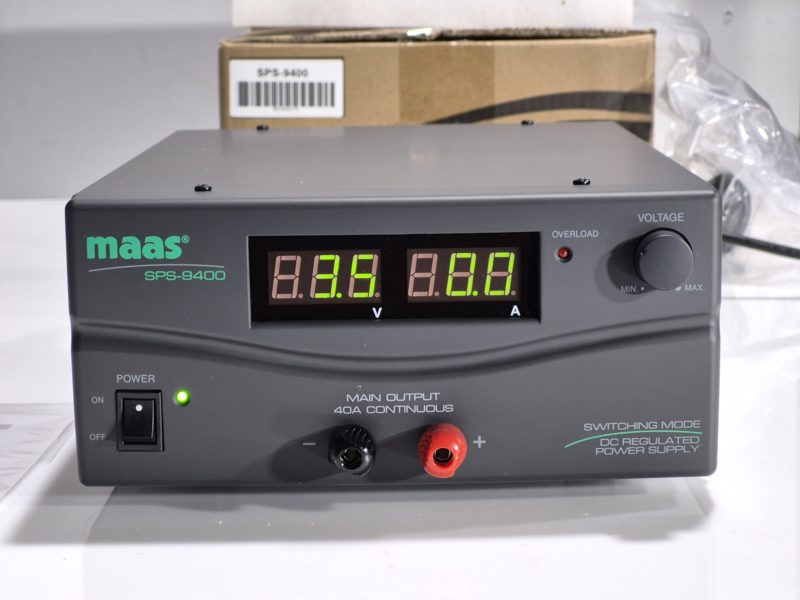

SPS-9400: This series of high power switching mode DC regulated power supplies provides high current 40-Amps output in a lightweight and compact size case. They are suitable for a wide range of uses, such as radio equipment, and are ideal for high power car stereo work. In addition to variable output from 3 to 15VDC, a fixed 13.8VDC can be selected. Overload, over temperature, and over voltage protection are standard.
Specifications:
Variable Output Voltage: 3-15 VDC
Fixed Output Voltage Mode: 13.8 VDC
Rated Output Current: 40A
Ripple and Noise (P-P): 50mV
Load Regulation: 200mV
Line Regulation: 50mV
Input Voltage: 230VAC / 50Hz
Efficiency: > 78%
Overvoltage protection; 16.5V
Meter Type: LED Meter
V meter Range: 3 digit display
A meter Range: 3 digit display
Meter Accuracy: 1% 2 Digits
Protection Devices: Overload, Short Circuit, Over Temperature, OVP
Cooling System: Variable Speed Thermally Control Fan
Highly stable and highly resistant to RFI intrusion
Dimensions: (W x H x D) 220 x 110 x 300 (mm)
Weight: 3.5 Kg
Remarks Power factor correction > 0.95 at optimal load
