Description

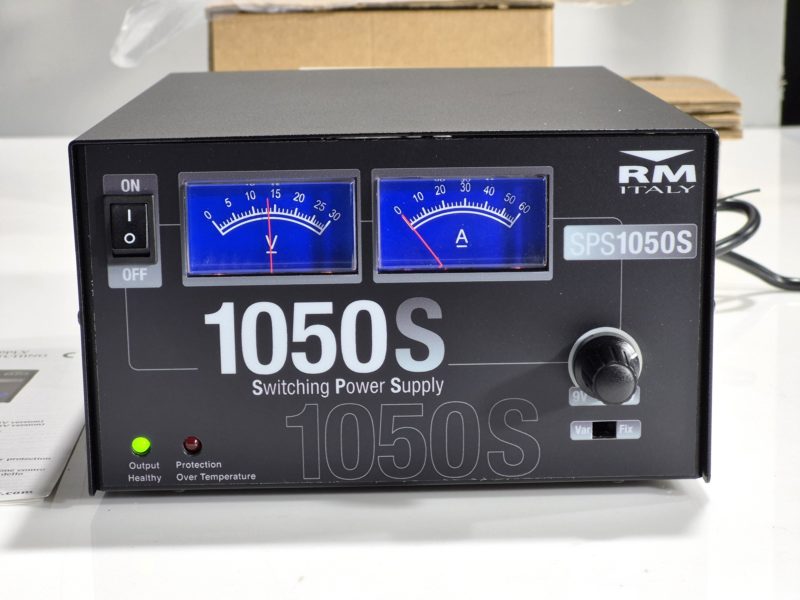

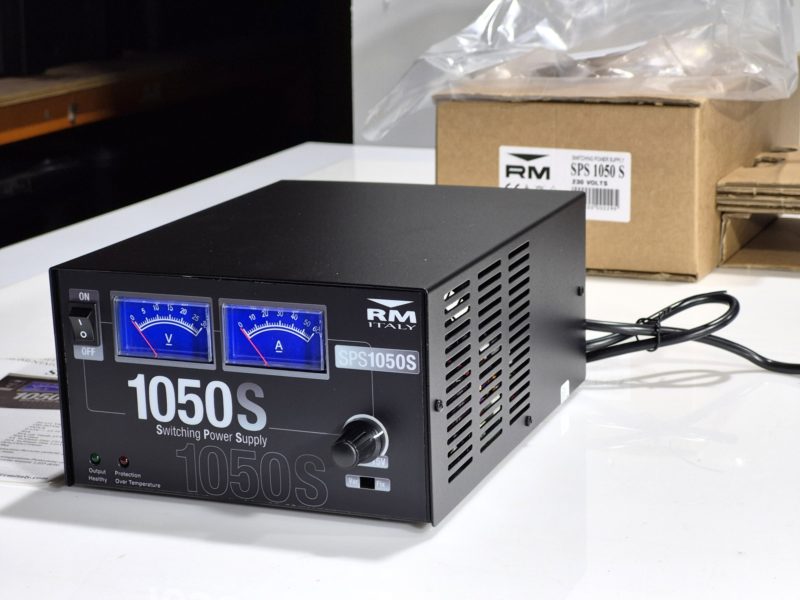

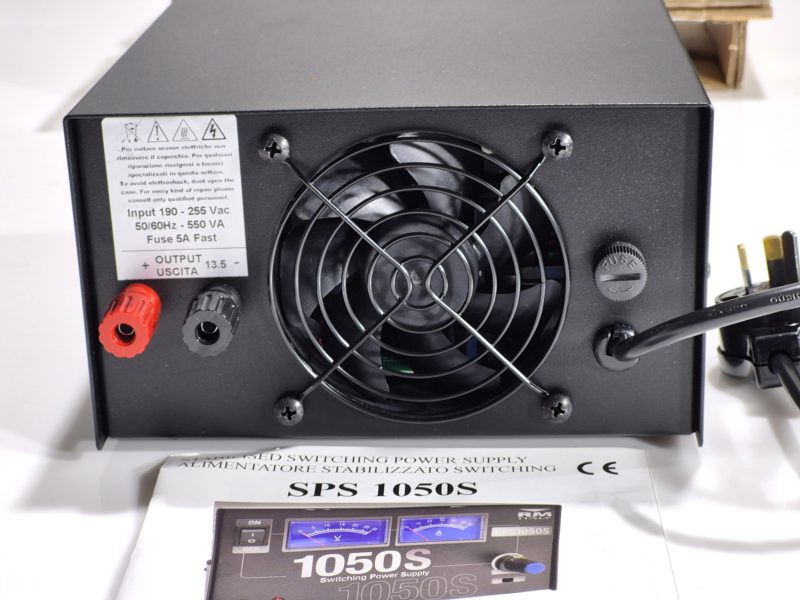

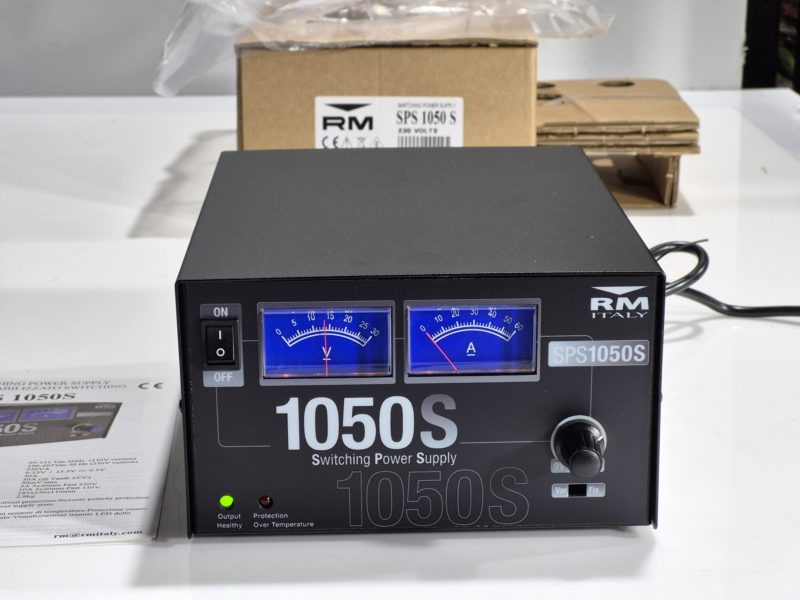

SPS-1050S: Powerful switching power supply for amplifiers or the entire radio station.
The SPS-1050S is a switching power supply with a max. output current of 50A, manufactured by RM Italy. The continuous load is 50A, which makes it particularly suitable for the supply of amplifiers or other large loads.
The SPS-1050S can either be set to a fixed output voltage of 13.5V or to a adjustable voltage of 9 to 15 Volt
Output short circuit protection • Over output voltage protection • Switching technology • Automatic forced ventilation • Adjustment output tension.
Features / Specifications:
Supply: 230/240
Input energy/power: 980 VA
Output Voltage: 9-15 V
Max load: 55 A
Continuous load: 50 A
Ripple: 50 mV max
Fuse: (230V) 5 A
Size: 185 x 113 x 285
Weight: 2,8 Kg
Output short circuit protection
Over output voltage protection
Switching technology
Automatic forced ventilation
Protection against short circuit current, over output voltage and polarity inversion.
