TX-102: This SWR / Watt meter is a highly accurate RF meter for measuring Forward Power, Reversed Power, and VSWR by using large (104mm) cross needle analog meter.
Features:
DC Grounded Antenna connector prevents electrostatic buildup.
True Directional Coupler for increased accuracy over frequency.
Low Bias Schottky Diode Detectors for increased linearity.

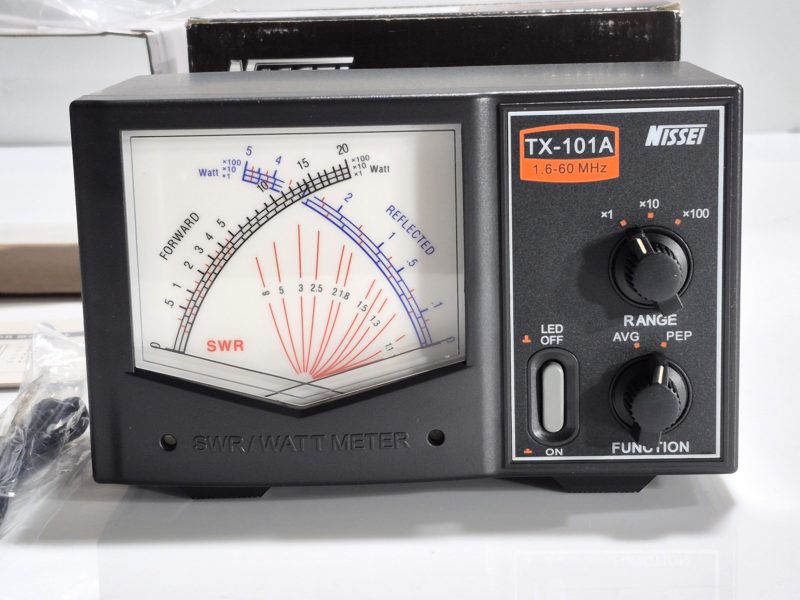

Precision, large (104mm) Cross Needle Meter simultaneously displays FWD and REV power with SWR.
Individual Meter Scales for each power range increase reading accuracy.
LED backlighting provides smooth, even illumination.
Three Color Scale for improved readability.
Rugged metal cabinet with speckled black finish and designer style grey injection molded front panel aesthetically complements modern transceivers.
Specifications:
Frequency Range: 1.6 – 200 MHz
Center Calibrated: 28.5/145 MHz
Power Range: 0 – 200W
Power Scale: 2/20/200W
Accuracy: ± 10% of Full Scale or better
Insertion loss: Less than 1.2 : 1
Min. Power: 1W
Testing Function: Power, SWR, PEP
Input/Output Impedance: 50 Ohms

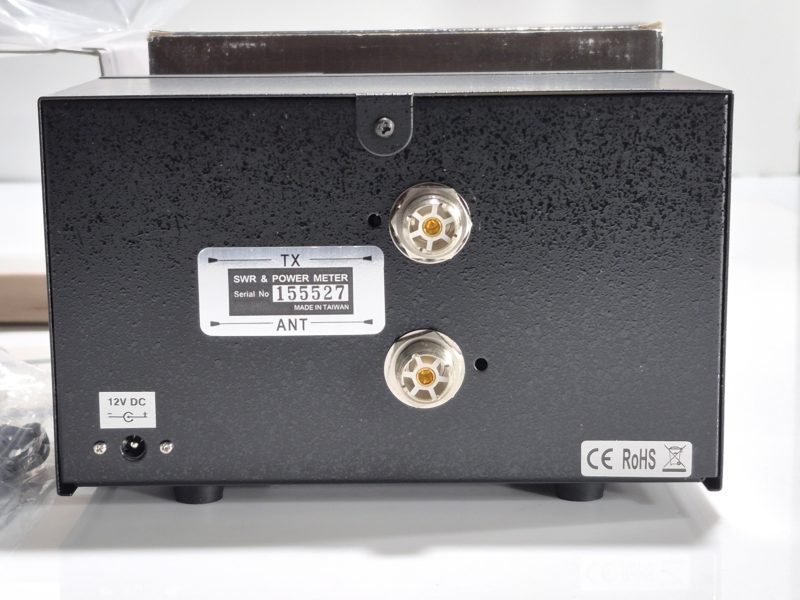

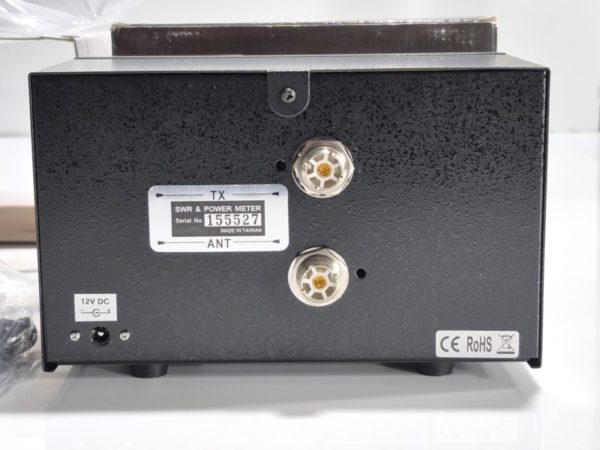

Connectors: M type SO-239
Input power: 9-14 VDC 200 mA maximum
Dimension: 184(W) x 118(H) x 131(D) mm
Weight: 910g
