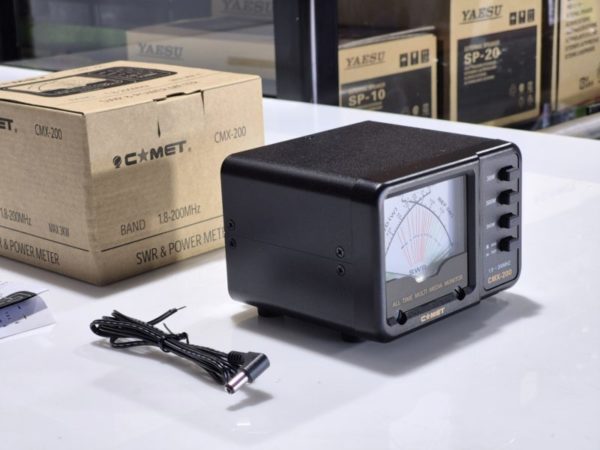

Comet CMX-200 High Power SWR Meter

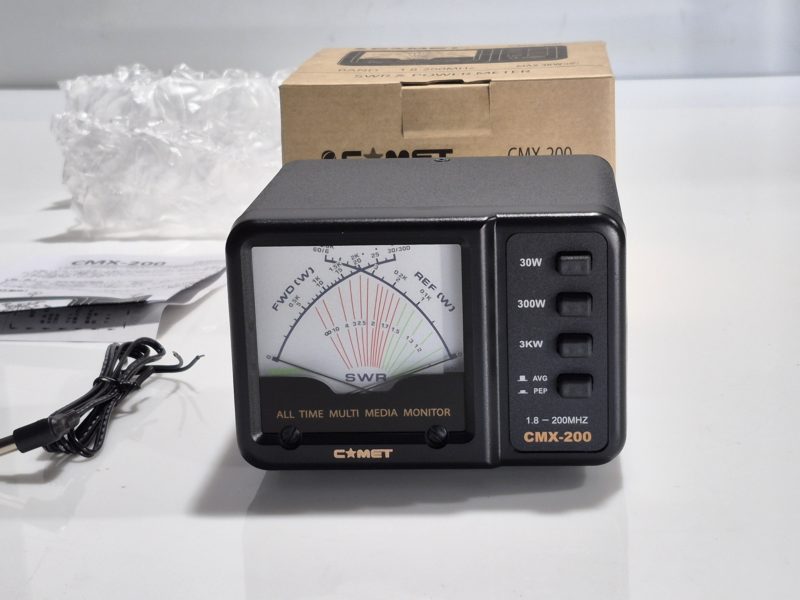

CMX-200: A brand new SWR Power meter from Comet, the CMX-200 will cover from 1.8Mhz up to 200Mhz, and has 3-range settings 30/300/3kW, and needs just about 6 watts minimum power for SWR measurement. PEP reading feature, and the meter has a very smart cross needle design, easy to read display, and supplied with 12v lead for meter illumination.

Frequency range: 1.8-200Mhz
Measurable range: 0-3kW HF, 0-1kW VHF
Power range: 30 / 300 / 3Kw
Impedance: 50 Ohms
VSWR”: 1 1:2 or Less

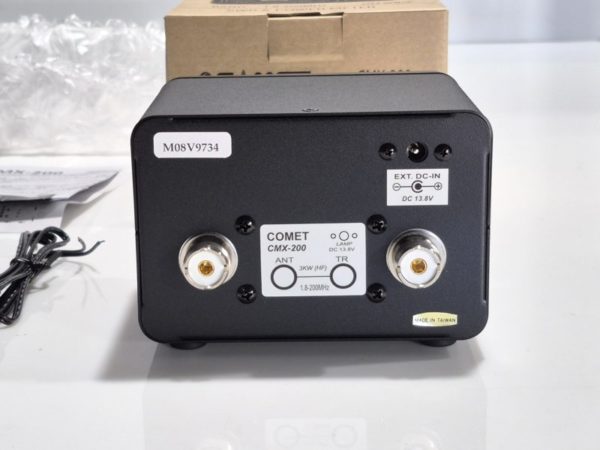

Connectors: SO-239
Power for illumination: 11-15 volts
Dimensions: 120 x 80 x 105 WHD
Weight: Approx. 630g.
