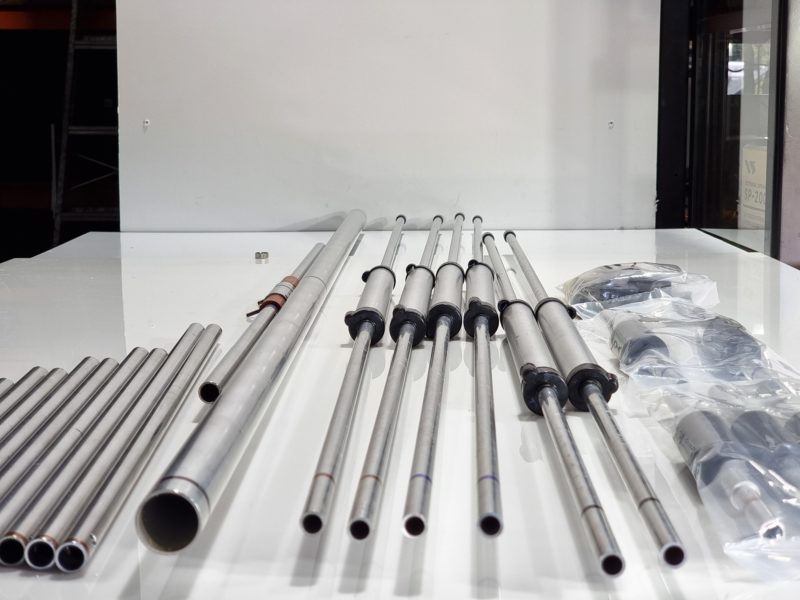

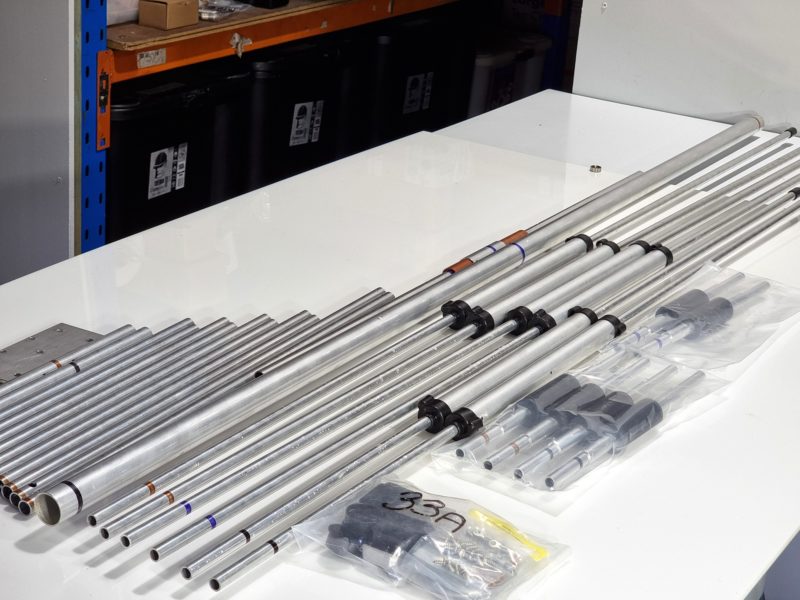

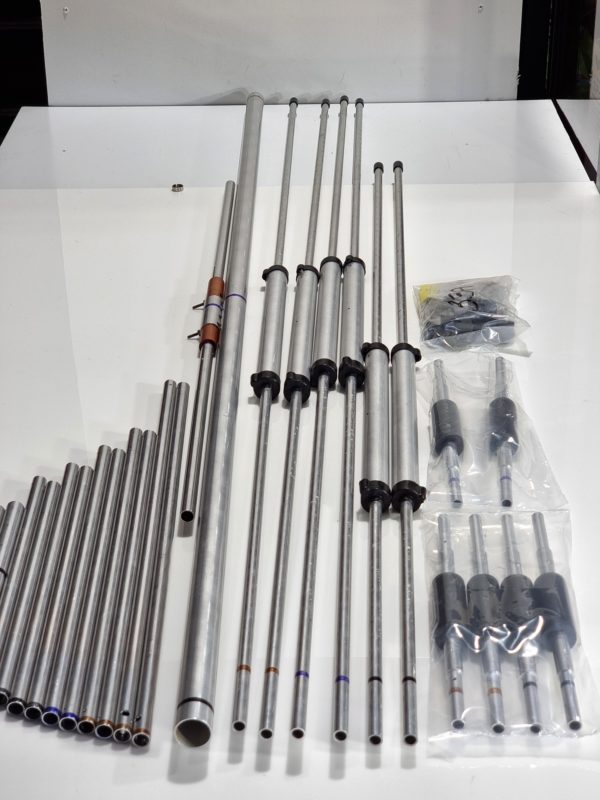

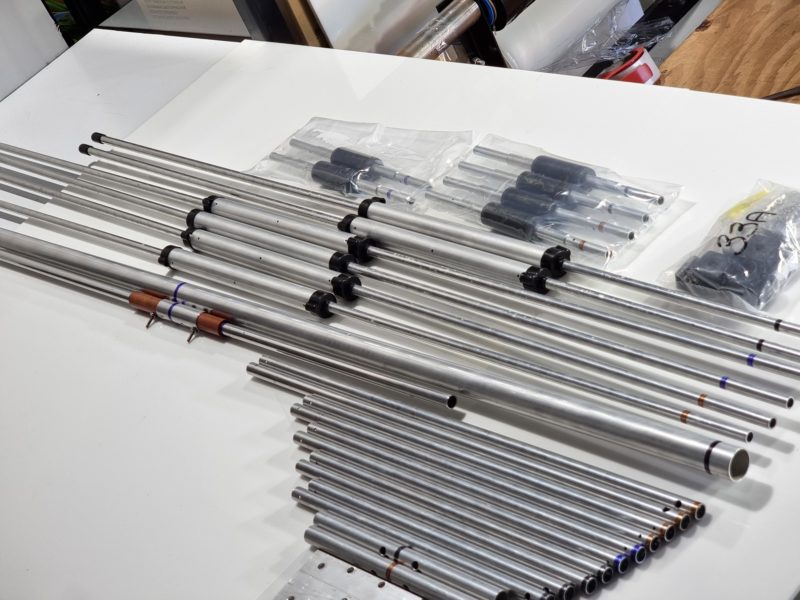

Mosley Electronics Inc MINI-33-A Compact Beam

$1,800.00

Description

MINI-33-A: The MINI antennas offer an ultra light weight design, a small foot print, with good all-around performance, & Mosley ruggedness.
Our hardware is made of the best grade of stainless steel and our tubing is aircraft grade drawn aluminum. Despite the smaller size of the antennas these can compete with bigger versions!
The Mosley Mini is the answer to the antenna space problem while giving you great performance and durability!
Specifications:
Frequency: 28, 21, 14MHz
Forward Gain, dBd / 10 meters, 3 – element; 6.1
Forward Gain, dBd / 15 meters, 3 – element; 4.2
Forward Gain, dBd / 20 meters, 3 – element; 3.5
Front to Back Ratio, dB 10 meters; 16
Front-to-Back Ratio, dB 15 meters; 13
Front-to-Back Ratio, dB 20 meters; 12
Power Rating, watts CW: 500
Power Rating, watts SSB; 1000
Power Rating, watts AM/FM; 250
Power Rating, watts RTTY/AMTOR; 250
Boom Length: 6 ft / 1.83 m
VSWR at frequency; 1.0/1 to 2.0/1
Maximum Element Length; 19.6875 ft / 6 m
Turning Radius, ft.; 10.29 ft / 3.14 m
Mast Size, in. hardware equipped; 1.5 in / 3.81 cm
Maximum Element Length, ft. ; 19.6875 ft / 6 m
Assembled weight, lbs. ; 12.5 lbs / 5.67 kg
Wind Surface Area, sq. ft.; 2.5 sq ft / 0.232 sq m
Wind Load, EIA 80 MPH; 38 lbs / 17.24 kg
