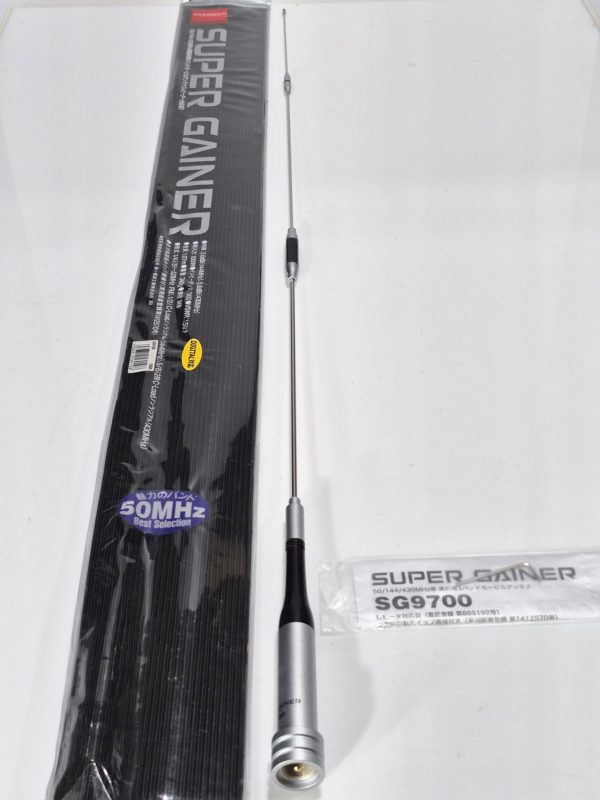

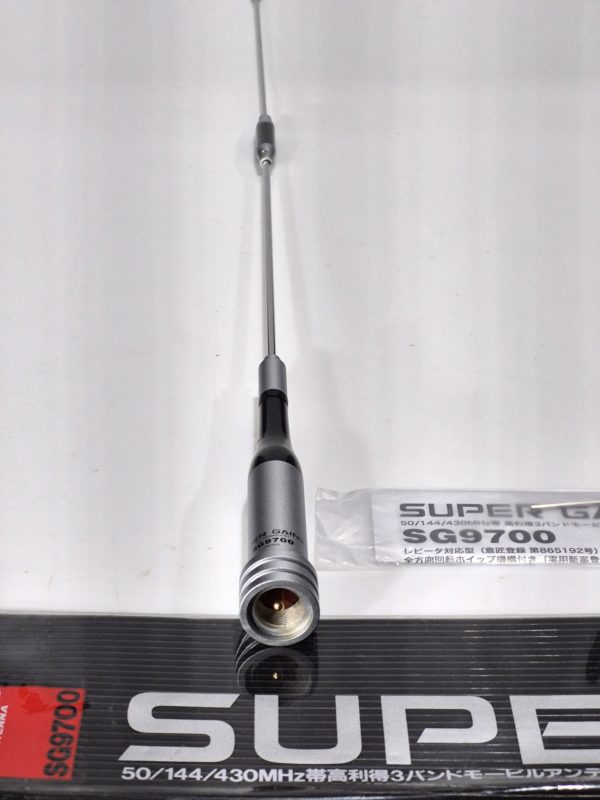

Diamond SG-9700 Tri-Band 6/2/70cm Mobile Antenna.



SG-9700: Super Gainer mobile antenna operates in three ranges 6/2/70cm bands. The antenna can be bent to a level (above the bulge at the base) in a special spring hinge which is useful when entering the garage.

Gain: 3.0dBi (144MHz), 5.8dBi (430MHz)
Max. power rating: 100W FM (Total)
Impedance: 50 Ohms
VSWR: Less than 1.5:1
Length: 1.07m
Weight: 340g

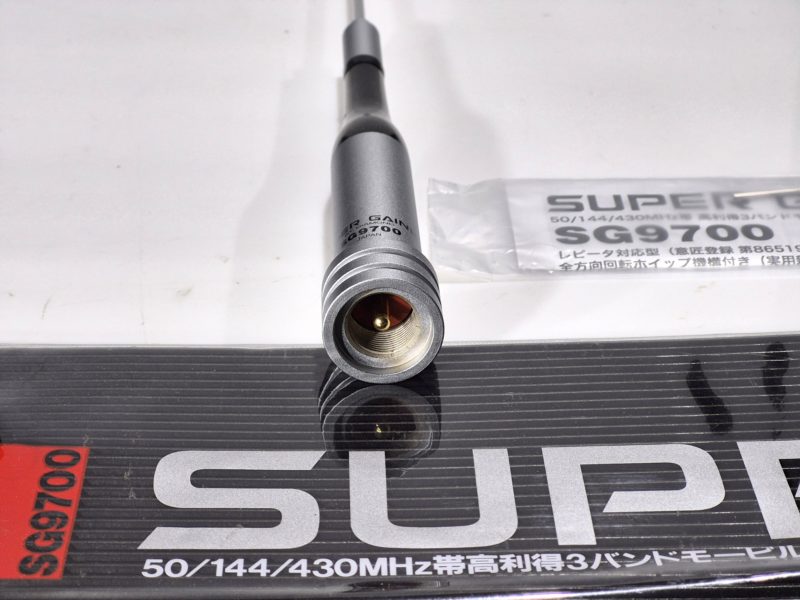

Connector: MP
Type: 1/4wave (51 to 52MHz FM), 1/2wave C-Load radial less (144MHz), 2 x 5/8 wave C-Load radial less (430MHz).
