Description
M80-1AS: Is a heavy duty solid fiberglass antenna that is 13mm thick and wound with .315 mm enameled wire, wound in such a way that the individual turns are spaced that they do not touch each other and so still providing a very low SWR but a much wider bandwidth and a much higher power rating of around 300Watts +.

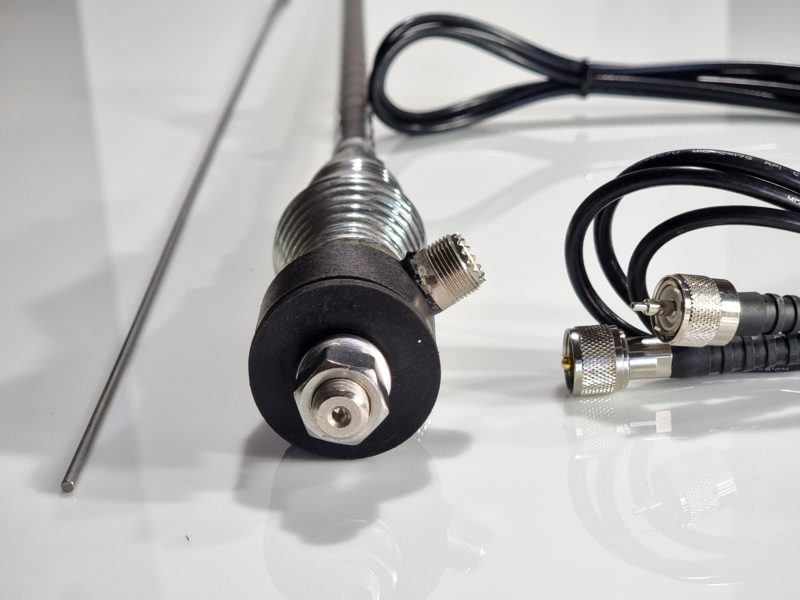

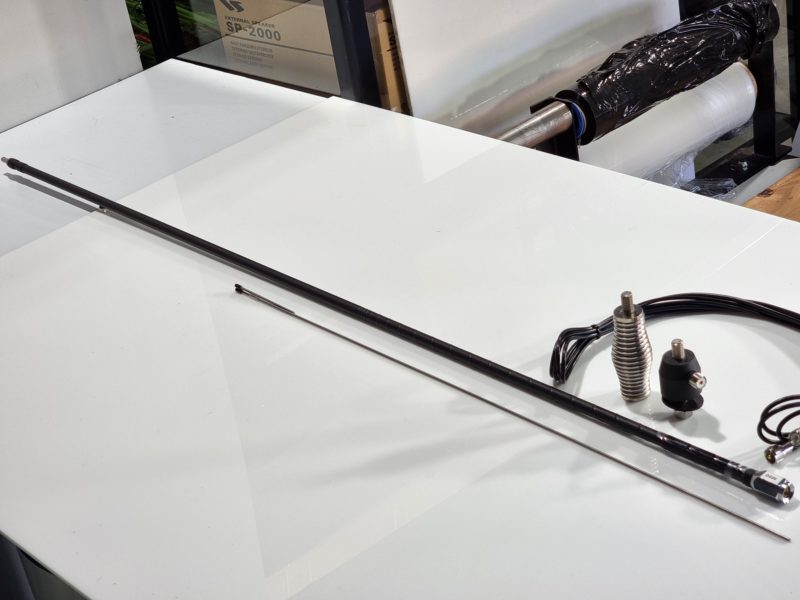

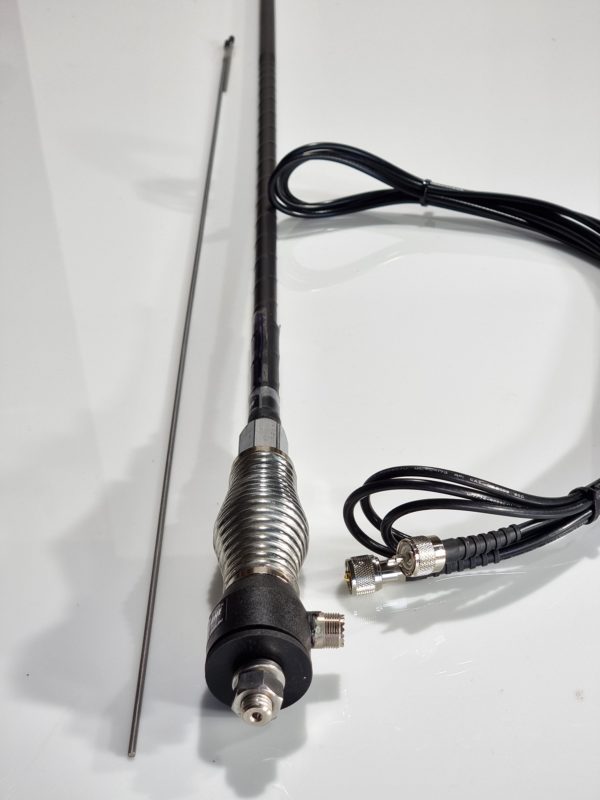

Kit includes: SSL Spring – SAM Base Mount – C3.6PL, RG-58U coaxial cable.
Specifications:
Base Size: 1/2″ BSW
Length: 1800mm
Frequency: 3.5 to 3.80MHz
Bandwidth: 90kHz < 1.5:1 SWR
Power Rating: 300Watts
Solid base mounting of antenna recommended.
