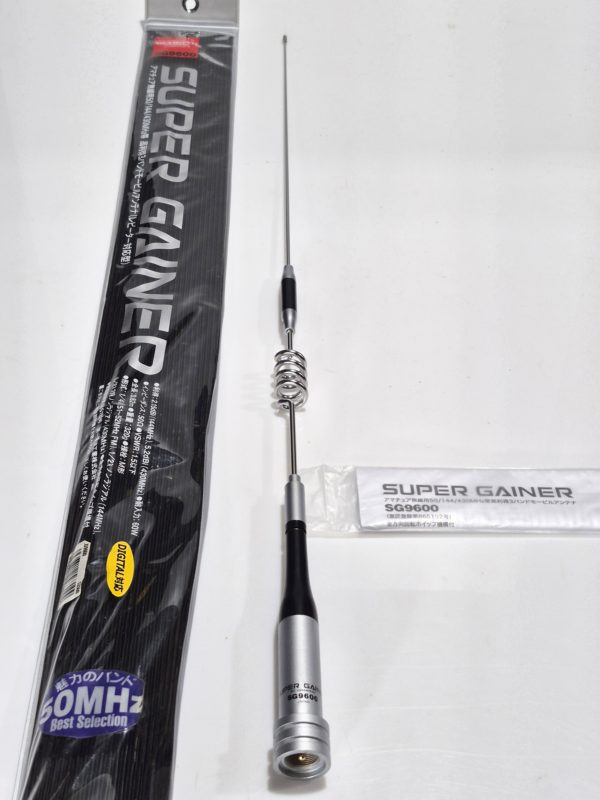

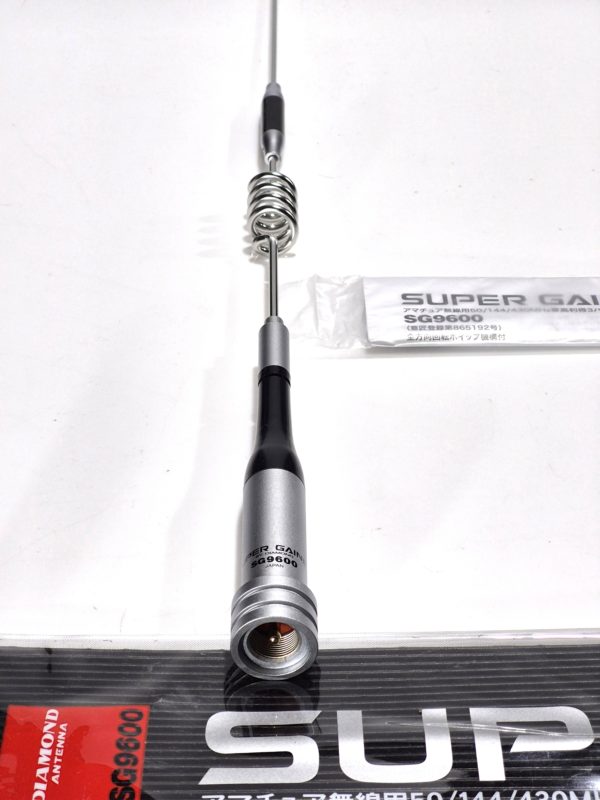

Diamond SG-96OO Tri Band 6/2/70cm Mobile Antenna.



SG-9600: Diamond car antenna, model “Super Gainer”, 82 cm long and FOS system. The antenna accepts power up to 60 W and is equipped with a standard M (or UHF) connector.

SG-9600: Tri-Band mobile antenna. 50/144/430MHz (6m/2m/70cm)
Gain: 2.15dBi (144MHz), 5.2dBi (430MHz)
Max. power rating: 60W
Impedance: 50 Ohms
VSWR: Less than 1.5:1
Length: 0.82m
Weight: 320g

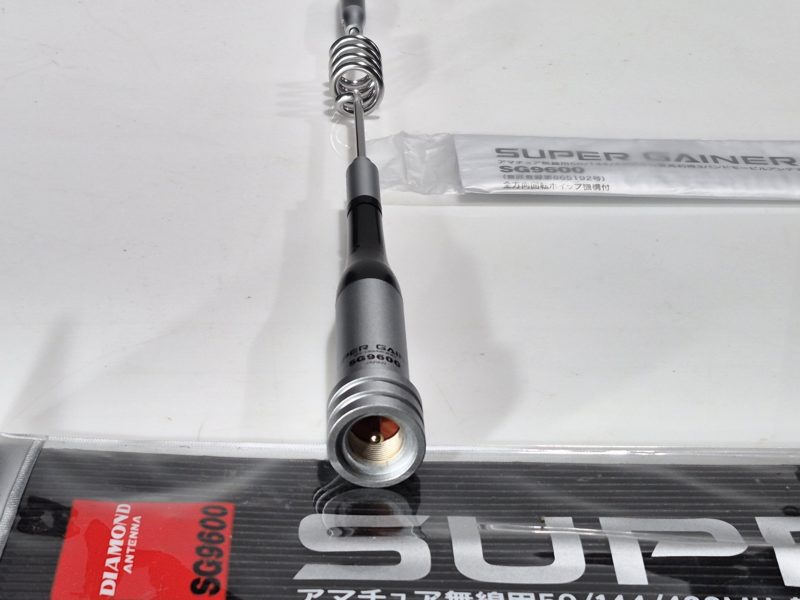

Connector: PL-259 Plug
Antenna Design: 1/4wave (51 to 52MHz FM), 1/2wave radial less (144MHz), 2 x 5/8wave radial less (430MHz).
