Description

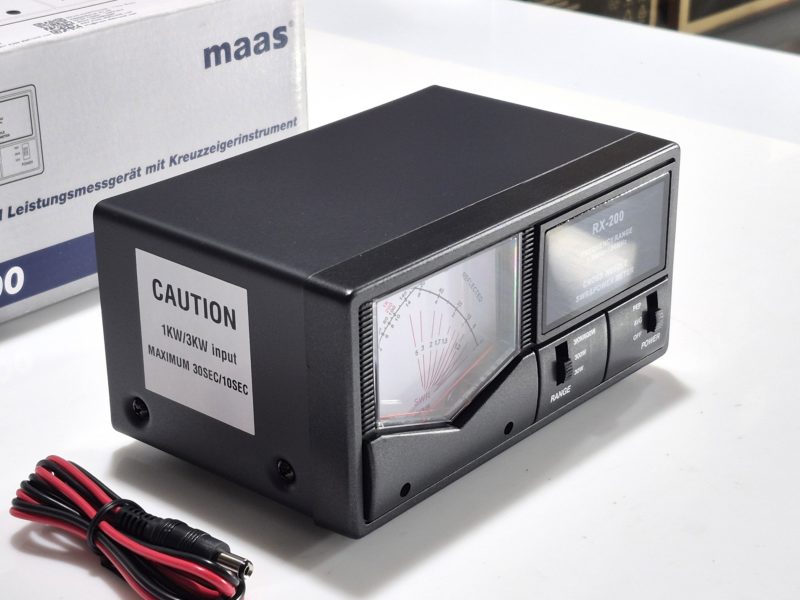

RX-200: The RX-200/400 Power & SWR meter is the most efficient instrument in a wide range of semi-professional measuring and control instruments.
The measured values are easy to read in the large-scale instruments. The RX-200/400 are plug-in type RF wattmeter’s and can be permanently mounted in a transmission system for continuous monitoring of the station’s operating condition. The unit can operate without external power supply.
Features:

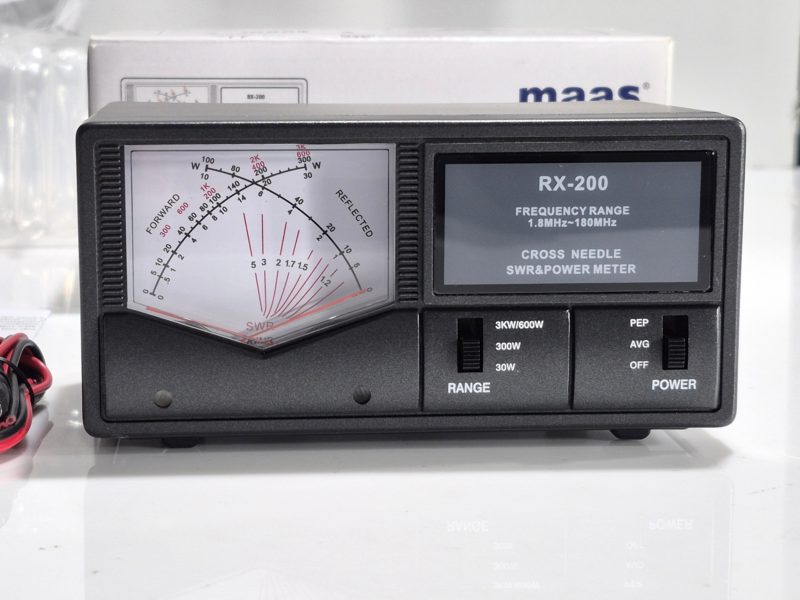

Power/SWR reading gauge
Adjustment indicator
Power range switch
Function switch (lamp on/off, peak/average power)

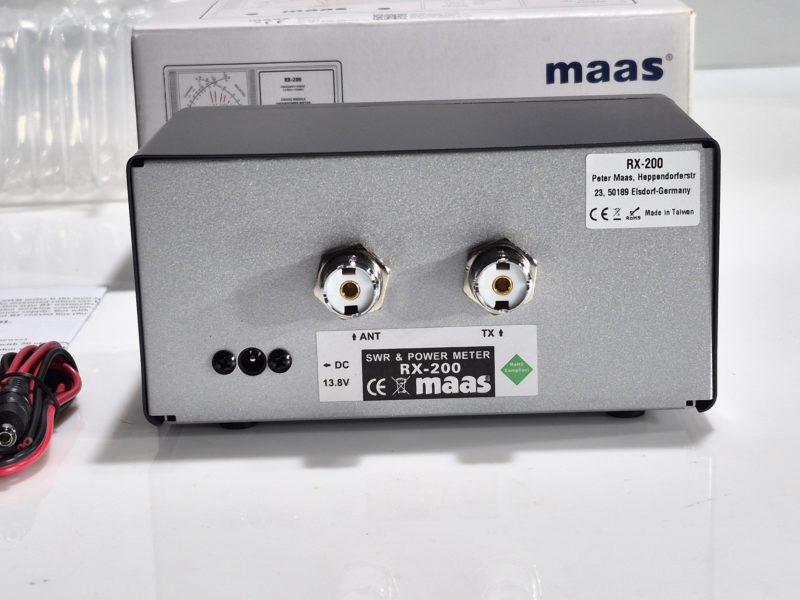

Antenna connector (connect to the antenna with a 50 ohm coaxial cable)
TX connector (connect to the radio with a 50 ohm coaxial cable)
Power connector (13.8 VDC) illuminates the meter
Specifications:
Frequency range: 1.8 – 180MHz
Performance: 0.5W – 3KW (switchable 30 W / 300 W / 3 KW)
Measurement accuracy:
@ 30W Range: +/-5%
@ 300W Range: +/-5%
@ 3KW Range: +/-7.5%
Equipment:
Illuminated display instrument (13.V DC for illumination)
AVG / PEP switching
DC cable included
Connections: UHF (PL) female
Insertion Loss: 0.2dB
Dimensions: (W x H x D in mm) 150 x 65 x 100 (without protruding parts)
Weight: approx. 630g
