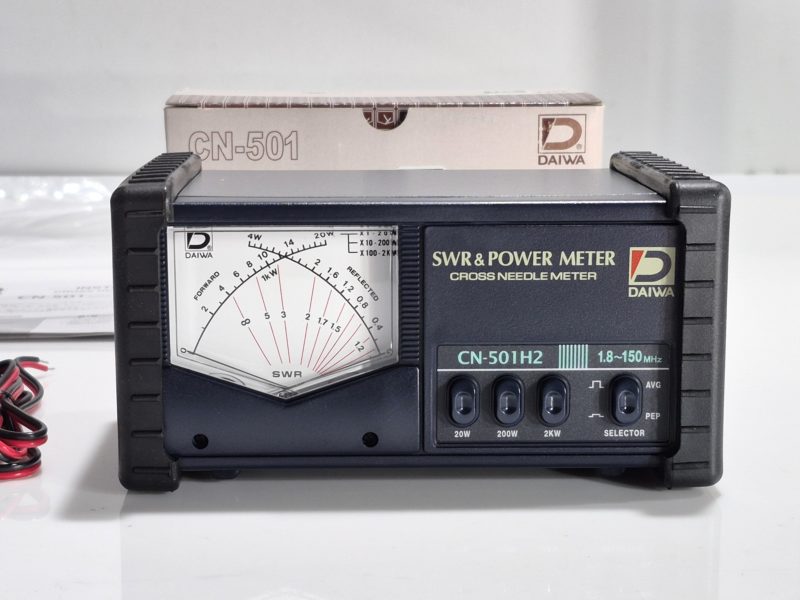

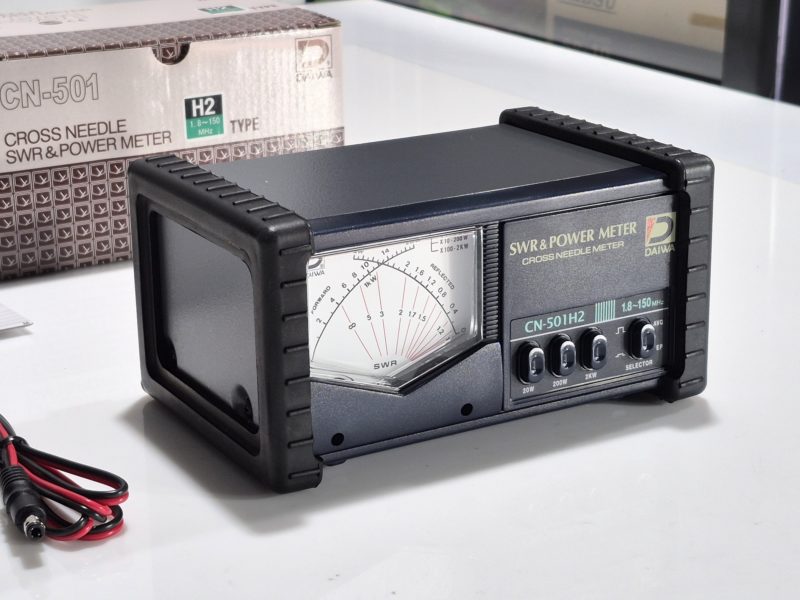

Daiwa CN-501H2 SWR Power Meter




CN-501H2: Daiwa 501 Series VHF/UHF Bench Meters offer high quality and are value-priced.
These SWR power meters will be right at home in any ham shack.
Their unique features make tedious measurements of SWR and power during antenna testing and tuning a much easier task.
You’ll be able to match your transmitters with ease! Daiwa CN-501H2 HF/VHF Bench Meters offer many fine features.

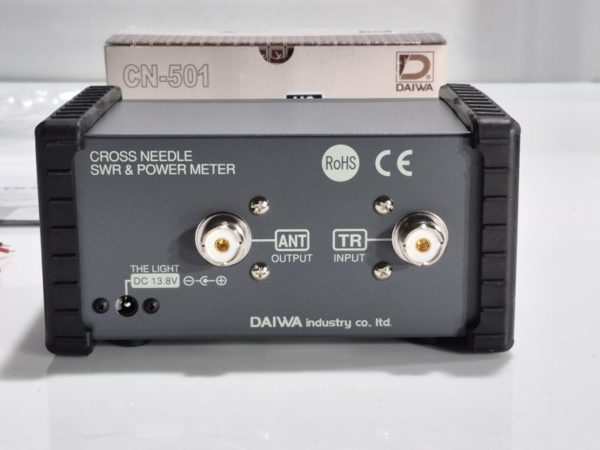

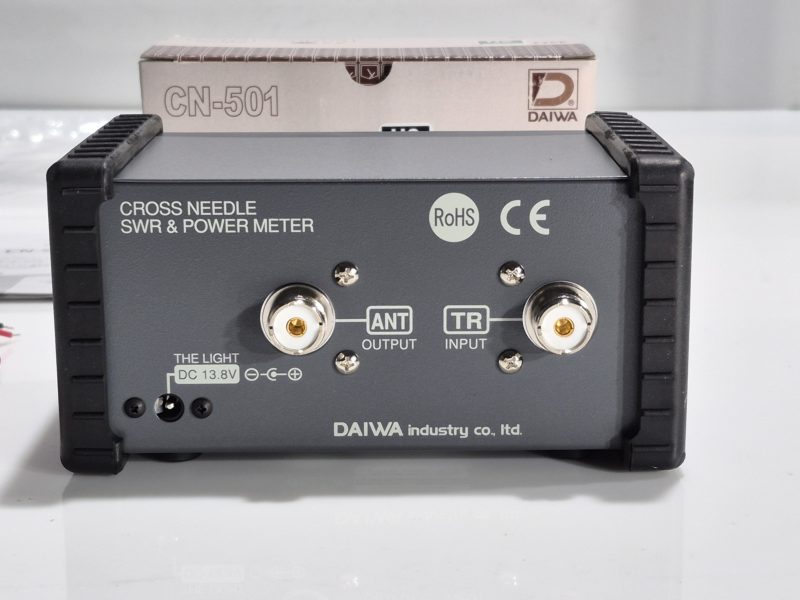

Connectors: Model CN-501H2 = Type UHF (SO-239)
Frequency range: 1.8-150MHz
Forward Power: 20 / 200 / 2000 Watts
Power Rating: 2000 W (1.8-60MHz) – 1000 W (144MHz)
Accuracy: Plus / minus 10% (at full scale)
SWR Detection Sensitivity: 4W min
Input / Output Impedance: 50 Ohm
Dimensions in inches: 5 W by 3 H by 4 D = 155(W) × 80(H) × 100(D) mm
Weight: 1 lb. 8 oz. = 670 g
LED Lighted
2.5mm DC input jack – 12-14 V
