Description

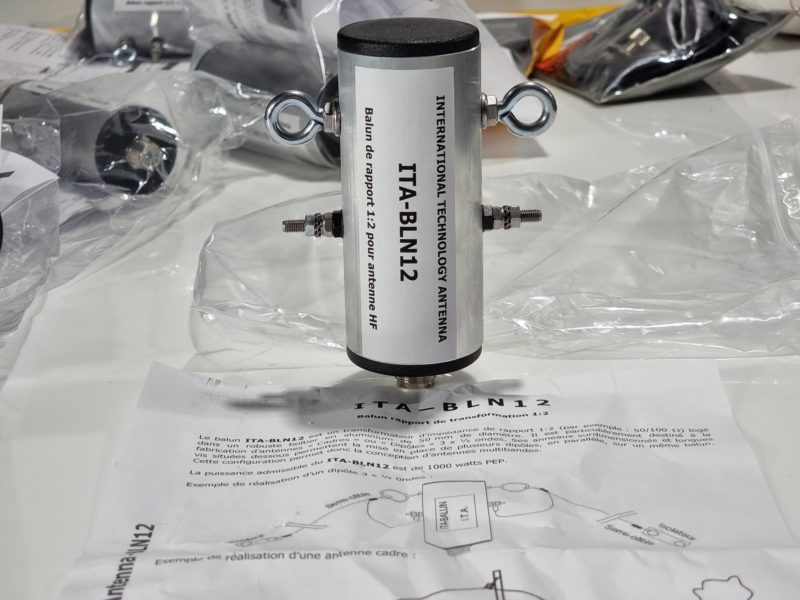

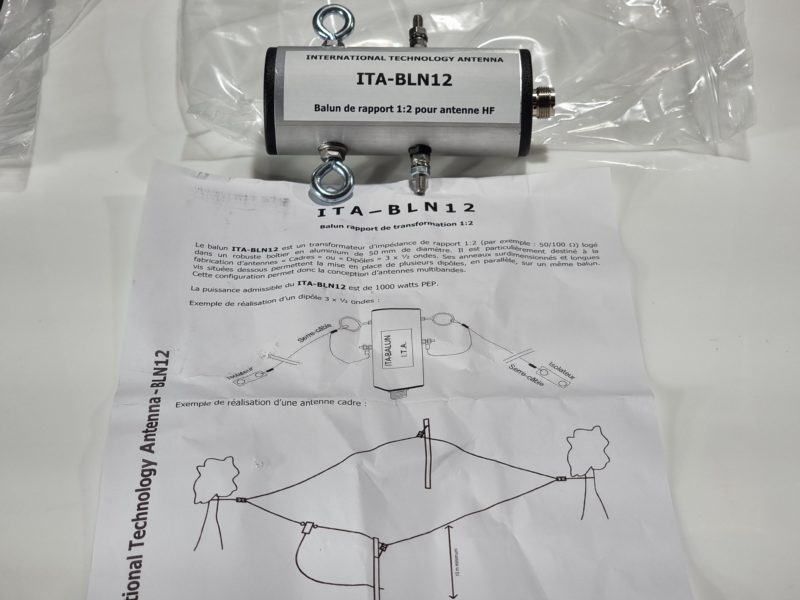

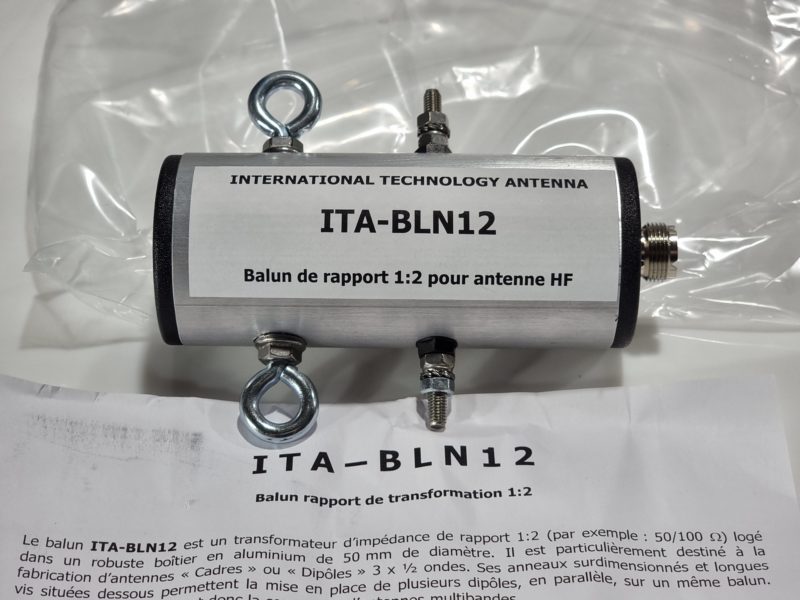

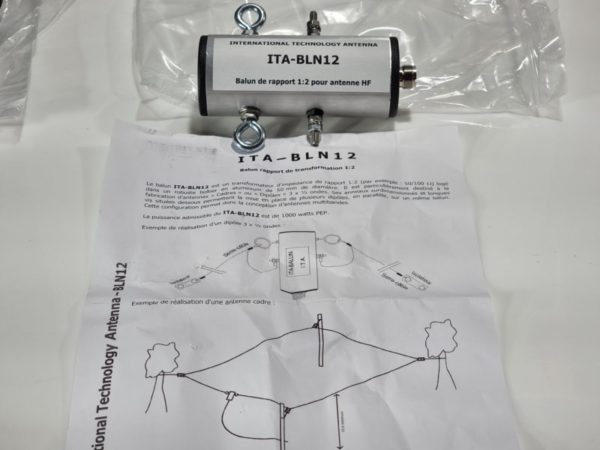

BLN12: EAntenna baluns are of excellent quality, using the best materials available on the market to provide optimal performance. Baluns are weatherproofed in an aluminium tube. All other metal components such as clamps and screws are made of stainless steel.
Voltage Balun ratio 1:2 (ex: 50 => 100 ohms). Maximum power: 1000 W PEP, to make 3×1/2 wave dipole and loop antennas. Robust aluminum body diameter: 5 cm (thickness: 2mm), real HF ferrite toroid and SO-239 connector.
Specifications:
Frequency: 1.5 / 30MHz
Ratio 1:1 (ex: 50 => 50 Ohms)
Maximum power: 1000 Watt PEP
Connector: SO-239 (PL) Amphenol with ceramic insulator
Case: Aluminum
Weight: 250 g
Size W x H x D 110 x 50 x 50 mm
