Diamond MX-3000N Antenna Triplexer.



MX-3000N: Diamond antenna triplexers are used to split or combine HF, VHF, and UHF signals. These triplexers may be used for combining three transceivers or transceiver connectors with different band ranges onto one coax feed line.
Diamond triplexers feature a high-quality aluminum case with a black finish.

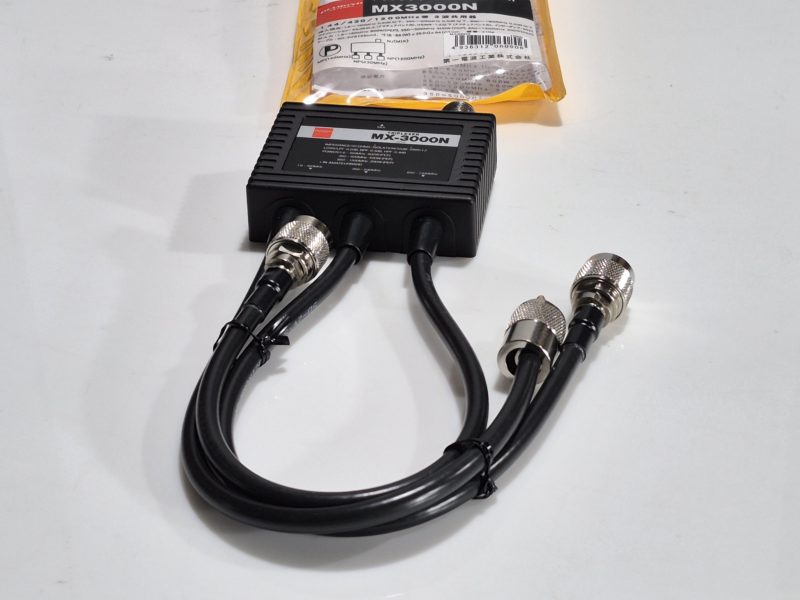

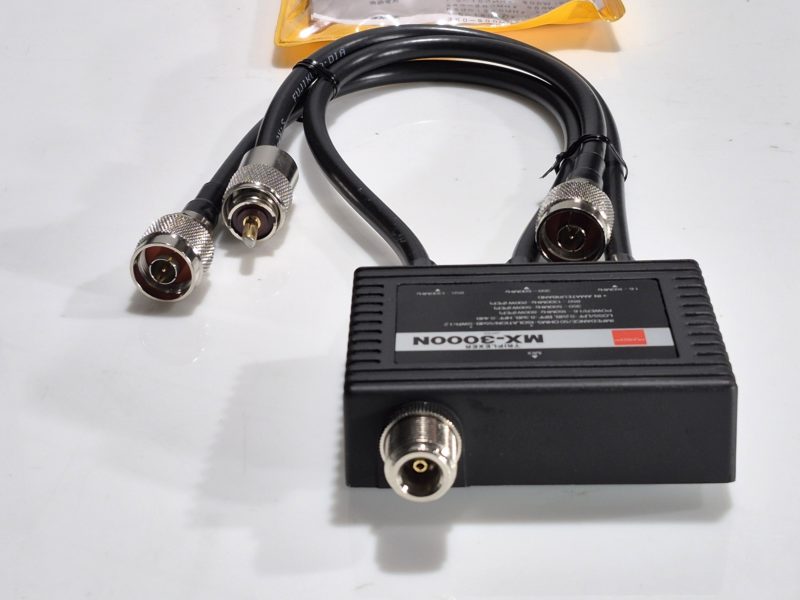

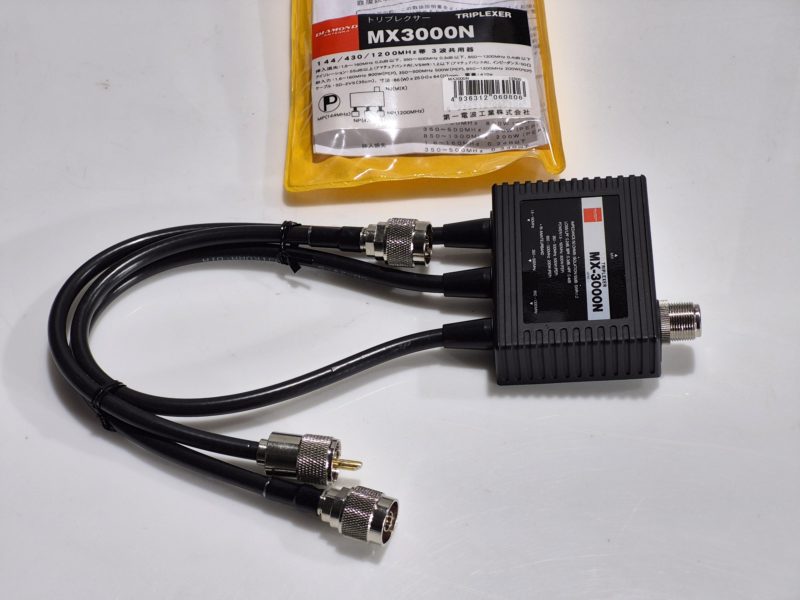

The Diamond MX-3000 is a mobile triplexer with a single SO-239 input into three outputs connected to 14 inch cable with various outputs of 2m, 70cm and 23cm.

Frequency: HF 144 / 430 / 1200 MHz
Frequency Range: 1.6-160 MHz, 350-500 MHz, 850-1300 MHz
Input: 1.6 – 160 MHz: Cable with UHF-Male (PL-259)
Input: 350 – 500 MHz: Cable with N-Male
Input: 850 – 1300 MHz: Cable with N-Male
Mix: N-Female
Passband width: LPF/1.6 to 160 MHz, BPF/350 to 500 MHz, HPF/850 to 1300MHz
Power rating: LPF/800W(PEP), BPF/500W(PEP), HPF:200W(PEP)
Isolation loss: LPF/Less than 0.2dB, BPF/Less than 0.3dB, HPF/Less than 0.4dB
Isolation: More than 55 dB
Impedance: 50 Ohms / VSWR: Less than 1.2:1
Connector: (MIX) N-J / (144) M-P / (430) N-P / (1200) N-P
Coaxial cable: 5D-2VS (35cm).
