Description

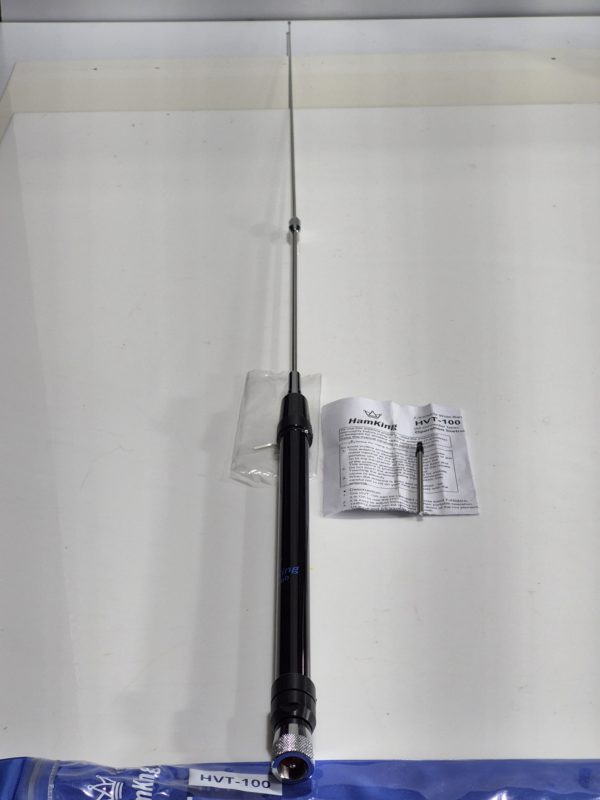

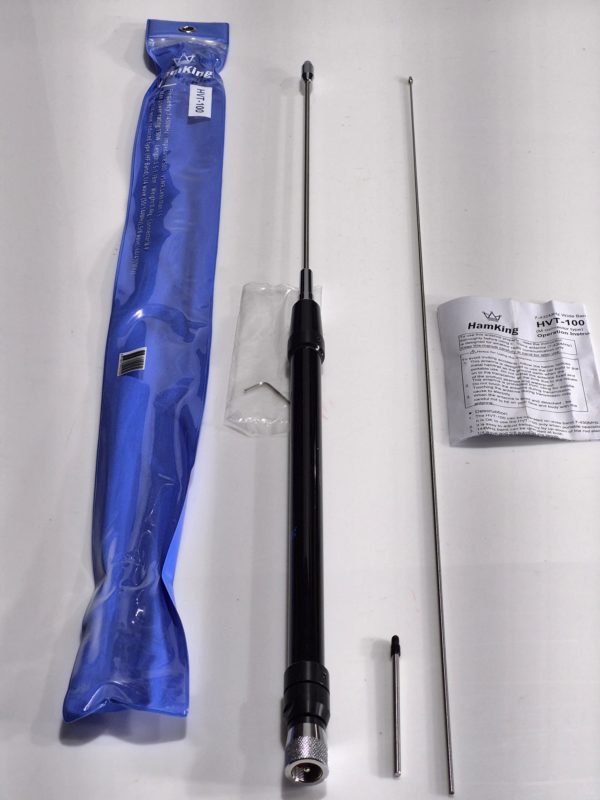

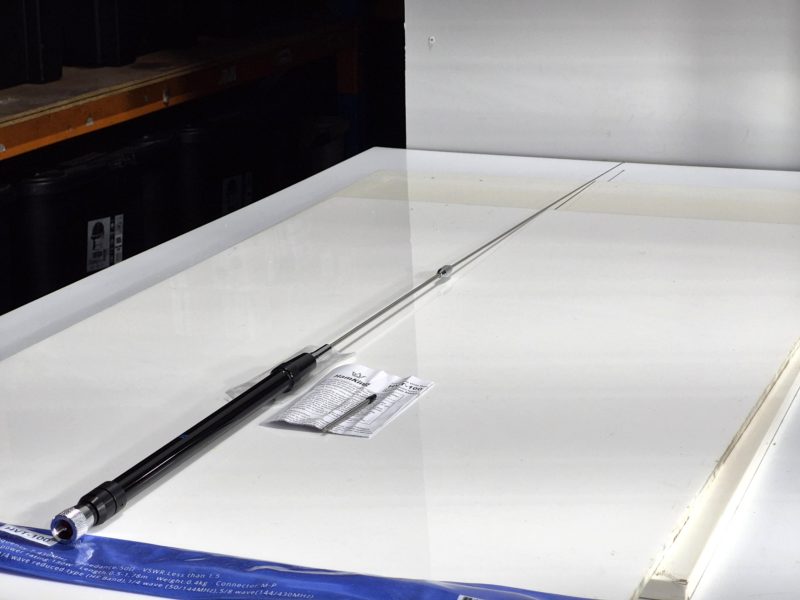

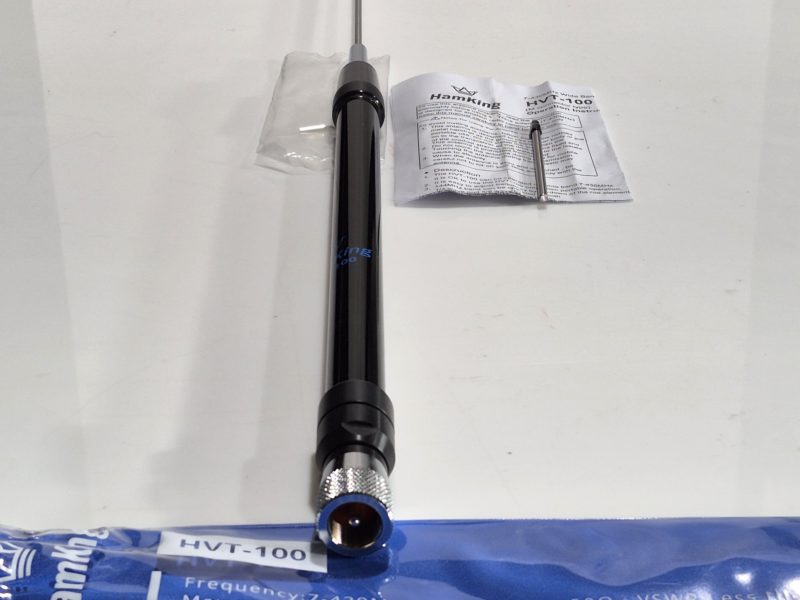

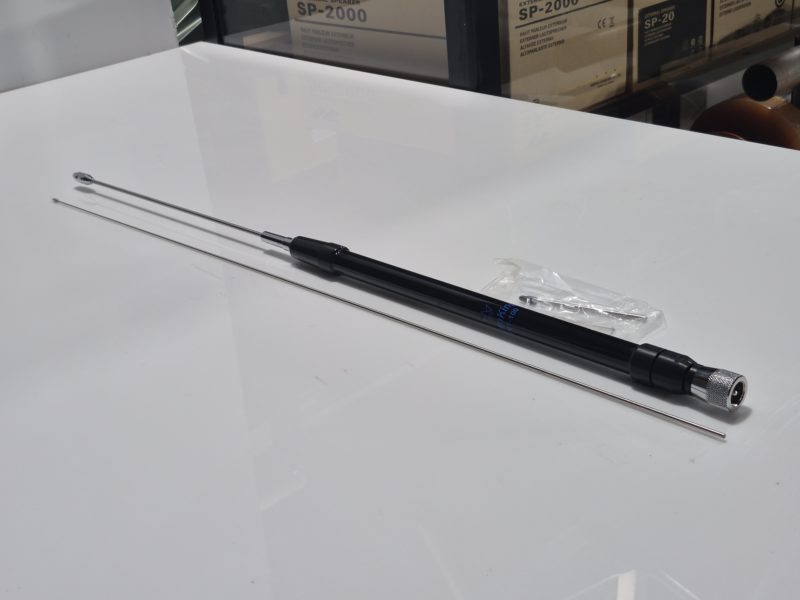

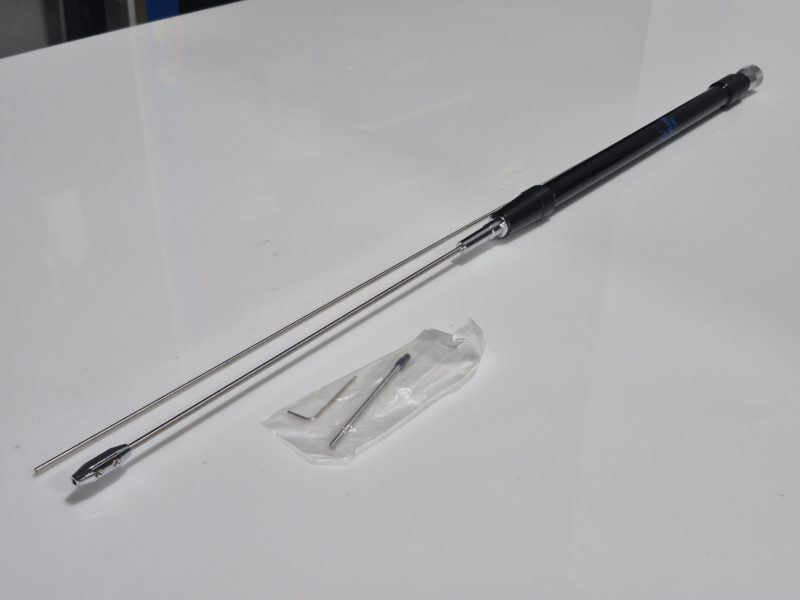

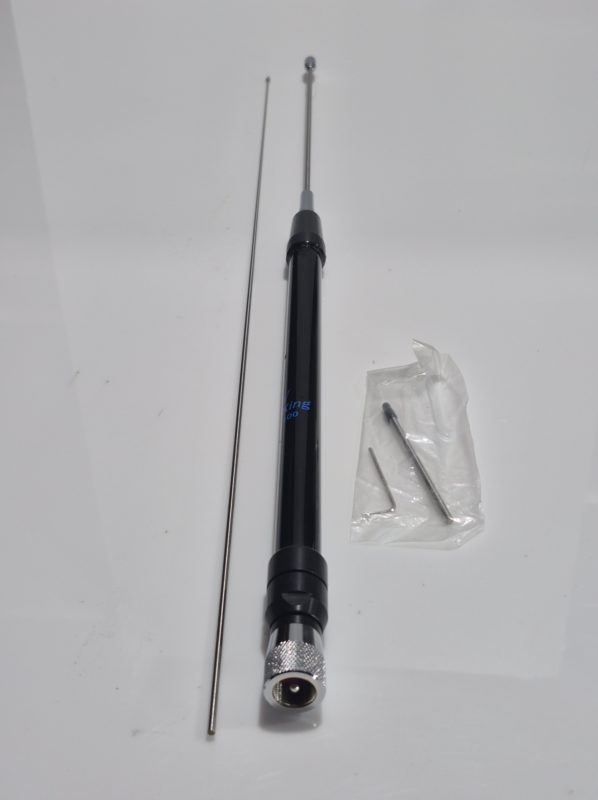

HVT-100: Comprises a base loaded electronically tuned “screwdriver” antenna with a flexible whip.
This mobile antenna is designed for best performance on frequencies between 7 thru 430 MHz. A schematic diagram is provided for the correct adjustment on the different bands.
Specifications:
Frequency band: HF/VHF/UHF
Frequency: 7 thru 430 MHz
VSWR: <1.5
Power rated: 130 watts
Impedance : 50 Ohms
Type: 1/4 wave reduced type (HF Band), 1/4 wave (50/144MHz), 5/8 wave (144/430MHz)
Radiation: Omnidirectional..
Mechanical Data:
Weight: 400 gram
Lenght: 50 – 178 cm
Connector: UHF male
