Chameleon CHA Hybrid Micro HF Portable Antenna



CHA Hybrid Micro 60″: The CHA HYBRID-MICRO is a lightweight highly portable broadband antenna system designed to offer maximum portability and performance. The antenna weights about 1 lb.
The antenna will operate at all frequencies in the 1.8-54 MHz band without any adjustment with most modern external antenna tuners. No masts or guying are required.
The antenna will work successfully supported by trees, masts, the tops of vehicles or any convenient object or structure. The antenna works most effectively when elevated at a reasonable height.

Frequency: 6M – 160M
Power: 100W SSB or 50W CW.
Mounting Configuration: 3/8-24 Thread
Length: 60’Feet
VSWR: Subject to configuration
Weight: 1lb.

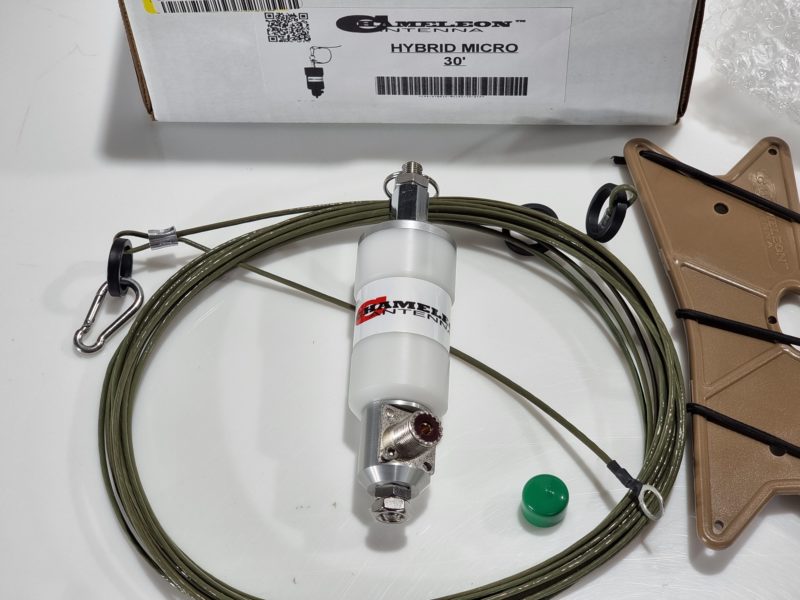

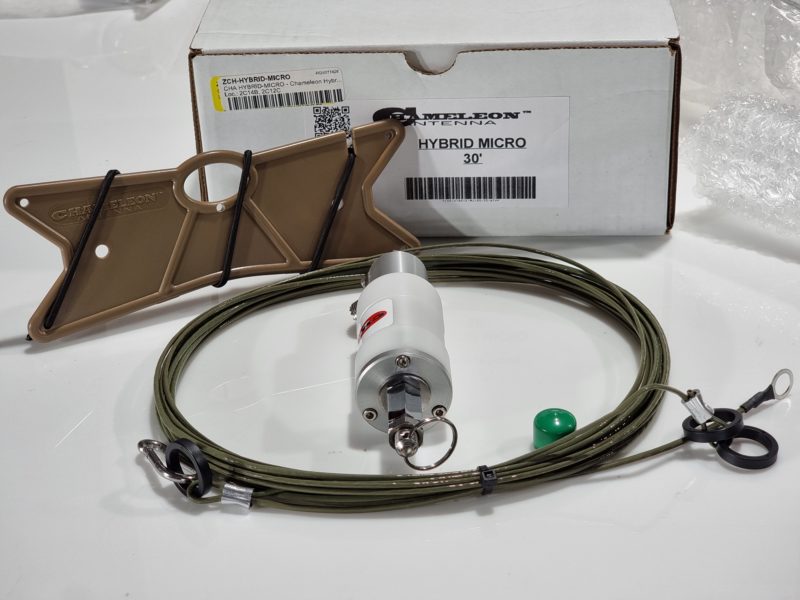

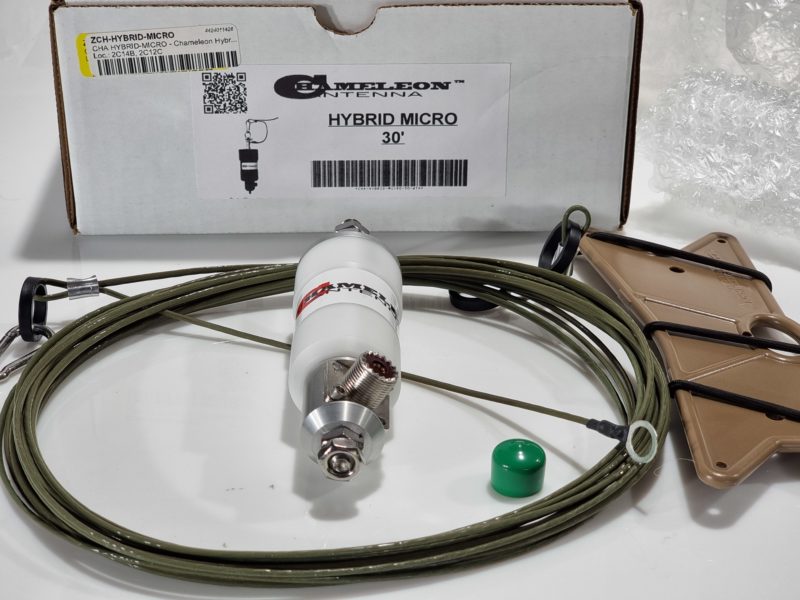

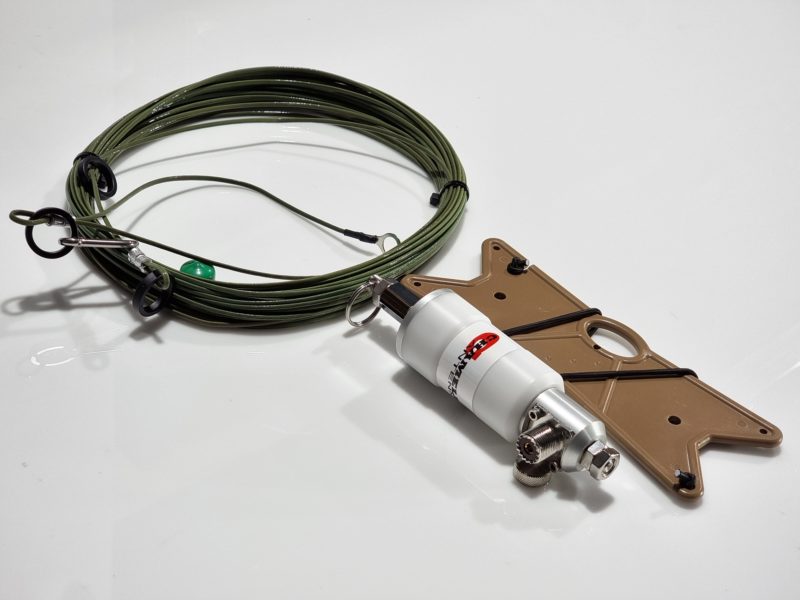

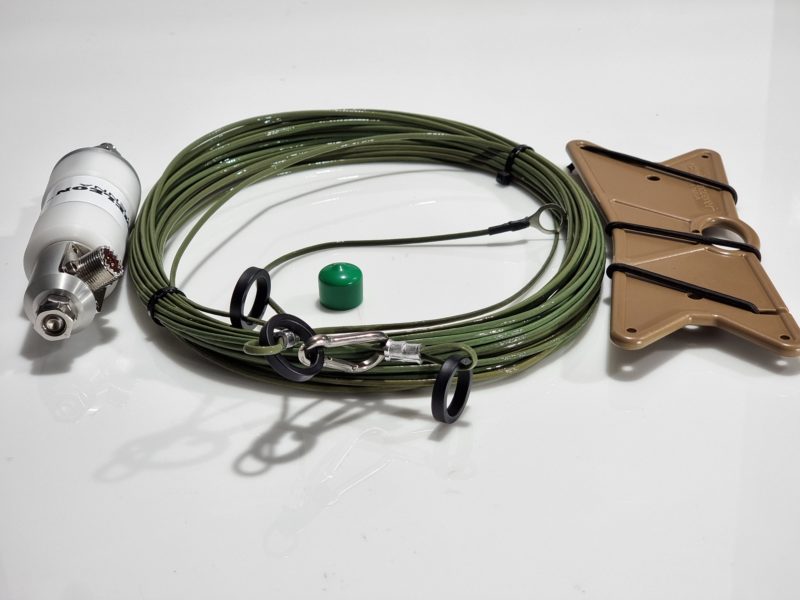

The antenna system consists of:

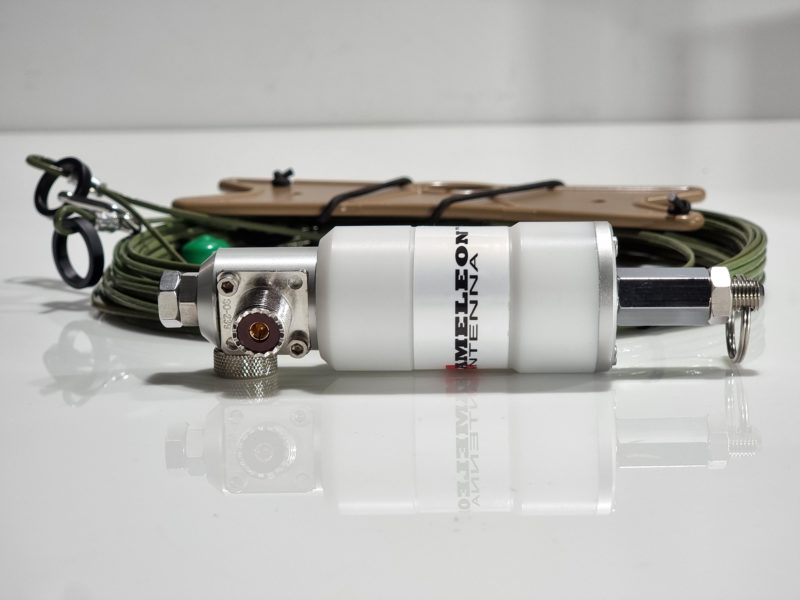

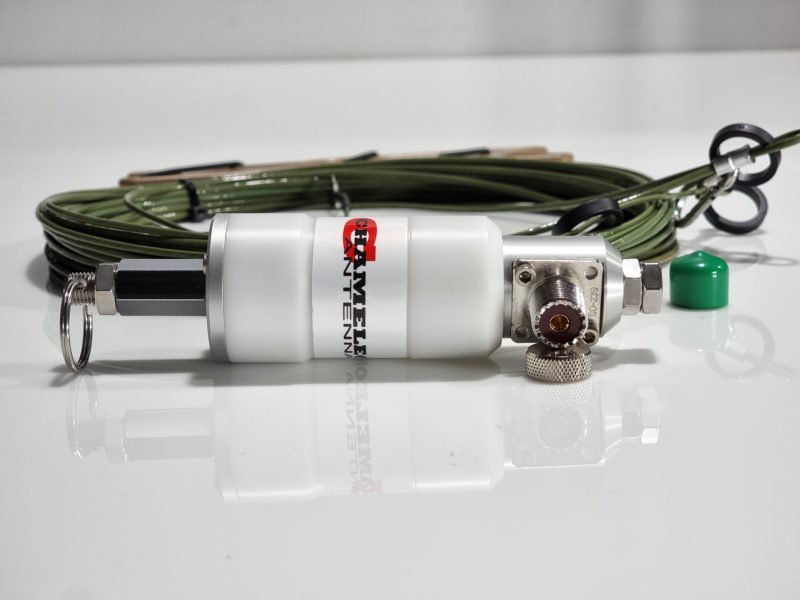

1 X HYBRID-MICRO Matching Unit Base
1 X 60′ Copper Clad KEVLAR PTFE (Teflon) (-70°C to 150°C) wire
Stainless Steel Hardware
