Description

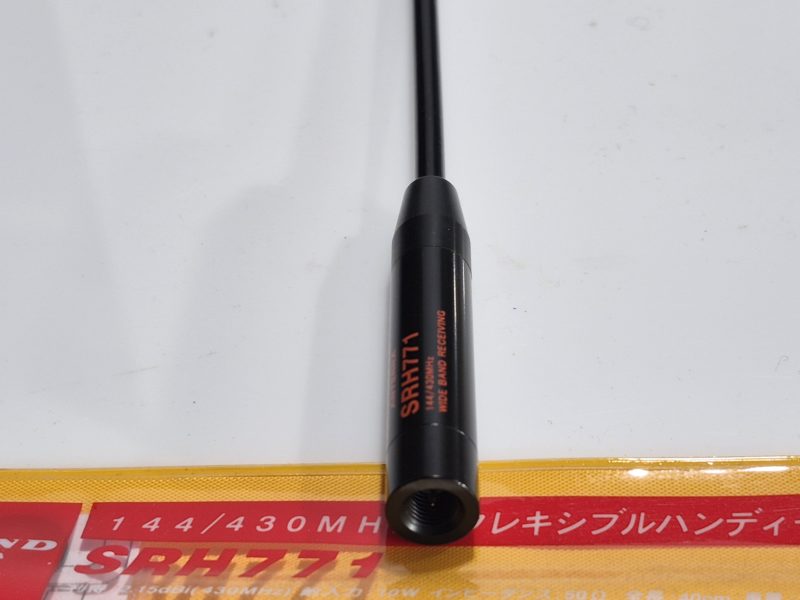

SRH771: Diamond antenna Dual-Band HT antennas offer a wide range of features to choose from for your handheld transceiver or scanner. Whether you need a replacement antenna or want to improve your HT’s radiating efficiency and range, these dual-band antennas offer a quality solution for your needs. They come available with BNC, SMA, or SMA-female.
Specifications:
Antenna Design: 1/4 wave (144/430MHz) Gain:2.15dBi (430MHz)
Gain: 2.15 dBi(430MHz)
Impedance: 50 Ohms
Max. power rating: 10W FM
Connector: SMA
1/4 wave(144MHz), 1/2 wave (430MHz),120/150/300/450/900MHz for receiving only.
Length: 40cm
Weight: 38g
