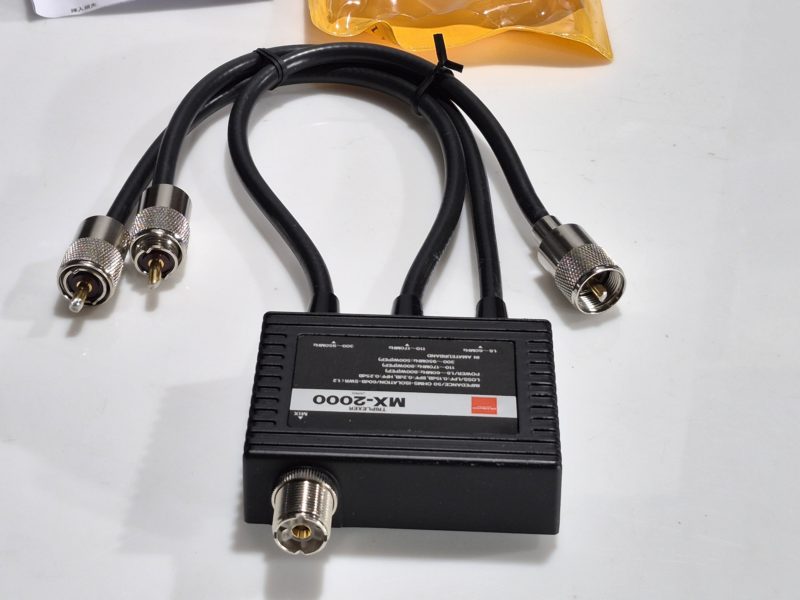

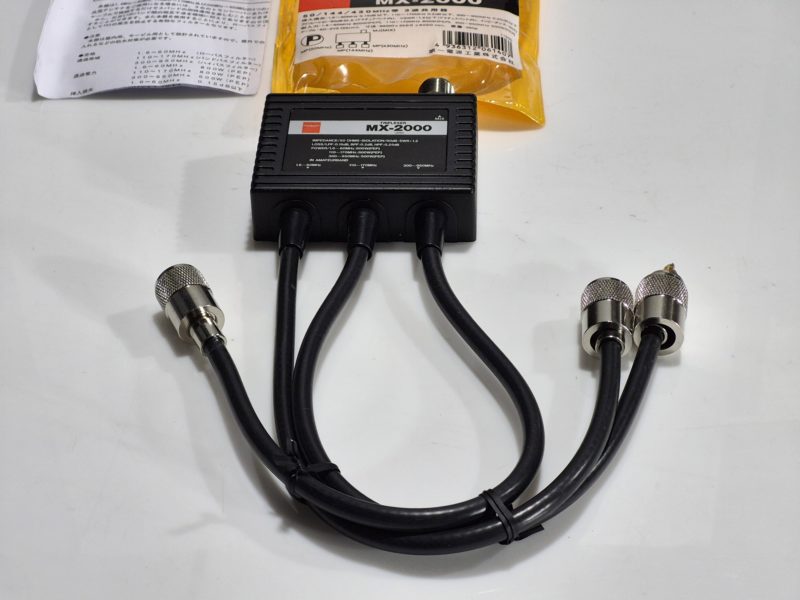

Diamond MX-2000 Antenna Triplexer



MX-2000: Diamond antenna triplexers are used to split or combine HF, VHF, and UHF signals. These triplexers may be used for combining three transceivers or transceiver connectors with different band ranges onto one coax feed line. Diamond triplexers feature a high-quality aluminum case with a black finish.

Frequency range: HF 50/144/430MHz
Passband width: LPF/1.6 to 60MHz,BPF/110 to 170MHz,HPF/300 to 950MHz
Power rating: LPF/800W (PEP),BPF/800W (PEP), HPF/500W (PEP)
Isolation loss: LPF/Less than 0.15dB,BPF/Less than 0.2dB,HPF/Less than 0.25dB
Isolation: More than 60dB
Impedance: 50 Ohms / VSWR: Less than 1.2:1
Connector:(Output Mix) M-J (SO-239) (50) M-P (PL-259) (144) M-P (PL-259) (430) M-P (PL-259)
Coaxial cable: 5D-2VS (35cm)
Dimensions: 86W x 25H x 64Dmm
