Description
CFX-4310C: Comet calls these “triplexers”, but they are also referred to as combiners or splitters. They are basically band-pass filters, simultaneously passing RF in both directions through the common connector while the band-pass filters provide a high degree of isolation between ports.
TX and RX from three radios at the same time into a single triband antenna.
Combine a triband radio with separate outputs into a single triband antenna.
Allow a single coax run into three antennas at the top of the tower, and three radios at the bottom, by using a triplexer at both ends of the coax run, avoiding cost and weight.
TX and RX from three radios at the same time into a single triband antenna.
Combine a triband radio with separate outputs into a single triband antenna
Allow a single coax run into three antennas at the top of the tower, and three radios at the bottom, by using a triplexer at both ends of the coax run, avoiding cost and weight
Specifications:
Frequency: 1.3-150MHz / Insertion Loss: 0.15dB / Power: 1000W PEP
Frequency: 350-500MHz / Insertion Loss: 0.25dB / Power: 500W PEP
Frequency: 840-1400MHz / Insertion Loss: 0.3dB / Power: 200W PEP

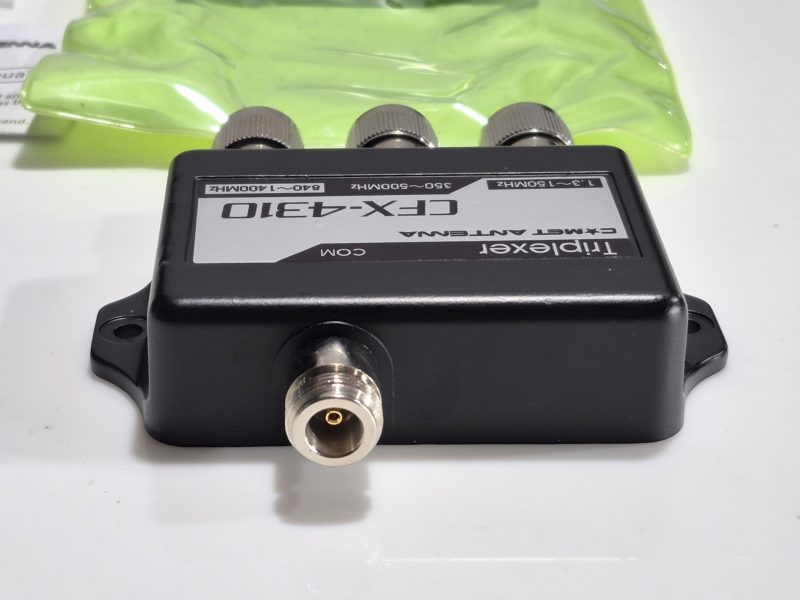

Common: N-Female

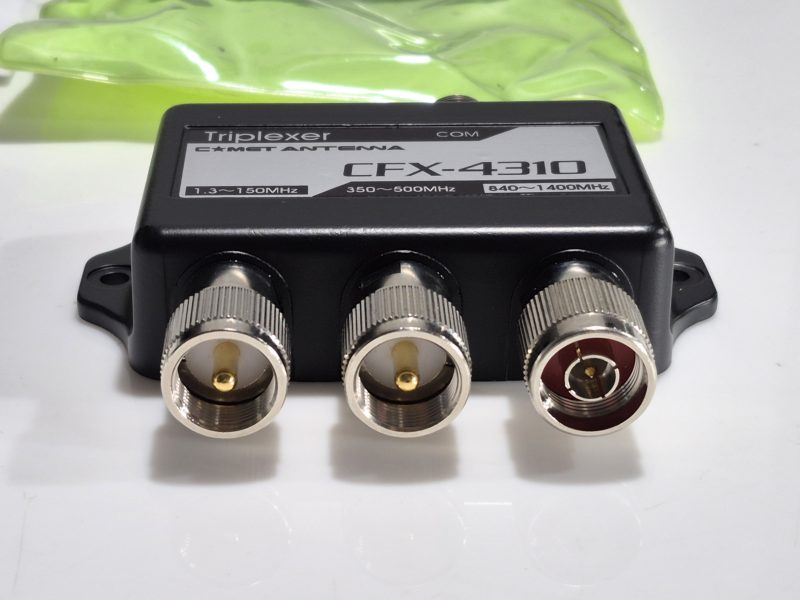

Low Pass: PL-259.
Mid Pass: PL-259.
High Pass: N-Male.
Isolation: 50dB.
