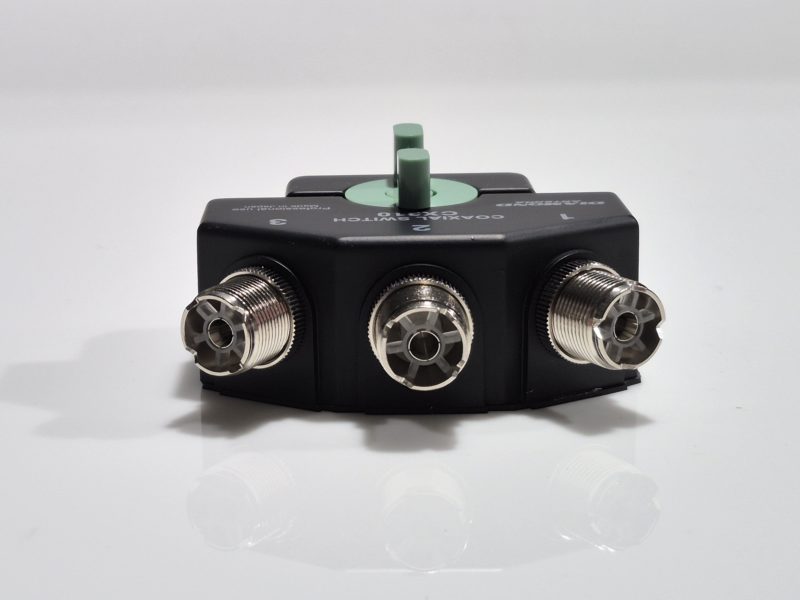

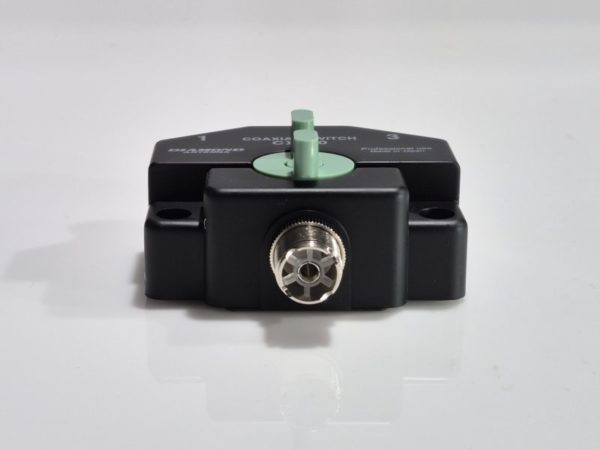

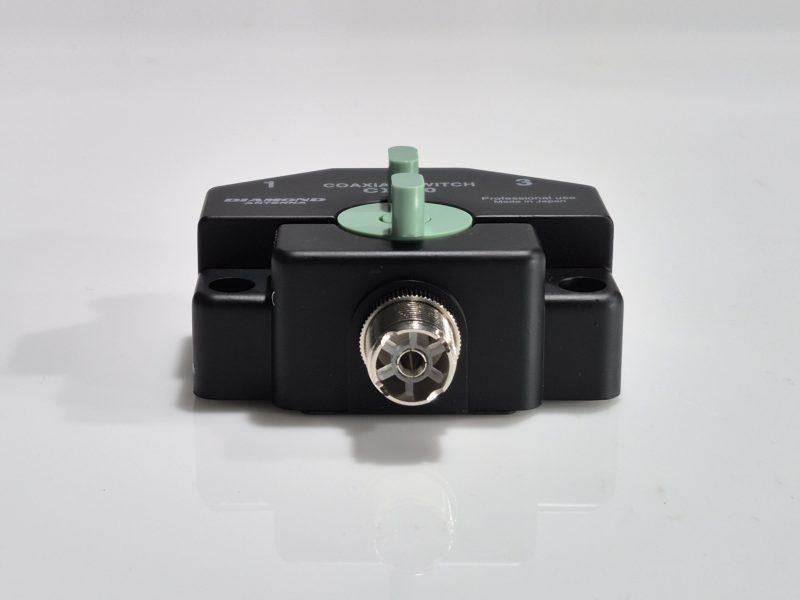

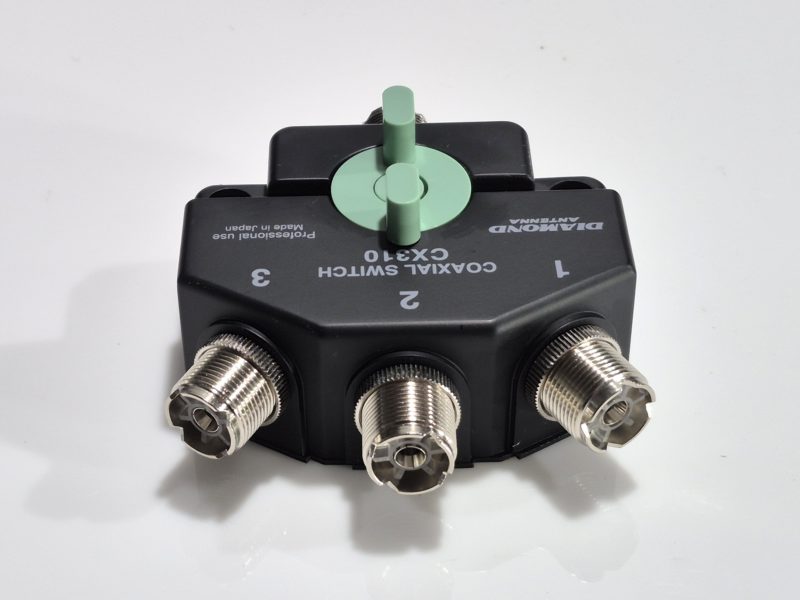

Diamond CX-310A Heavy Duty 3-Position Antenna Coaxial Switch.



CX-310a: Diamond heavy duty wideband coaxial switches are three-position coaxial switches providing very low loss and high isolation. They are rated DC to 800 MHz and can handle up to 1,500 watts.

Frequency range: DC to 800 MHz
Power rating: 1.5 KW (DC to 30 MHz), 1 KW (30 to 150 MHz), 500 W (150 to 800 MHz) (When VSWR is less than 1.2:1)
Isolation: More than 60dB (DC to 500MHz), more than 50dB (500 to 800MHz)
VSWR: Less than 1.1:1 (DC to 500 MHz), less than 1.2:1 (500 to 1000 MHz)
Insertion loss: Less than 0.1 dB (DC to 500 MHz), less than 0.15 dB (500 to 1000 MHz)
Impedance: 50 Ohms
Connector: PL-259 Female (SO-239)
