Description

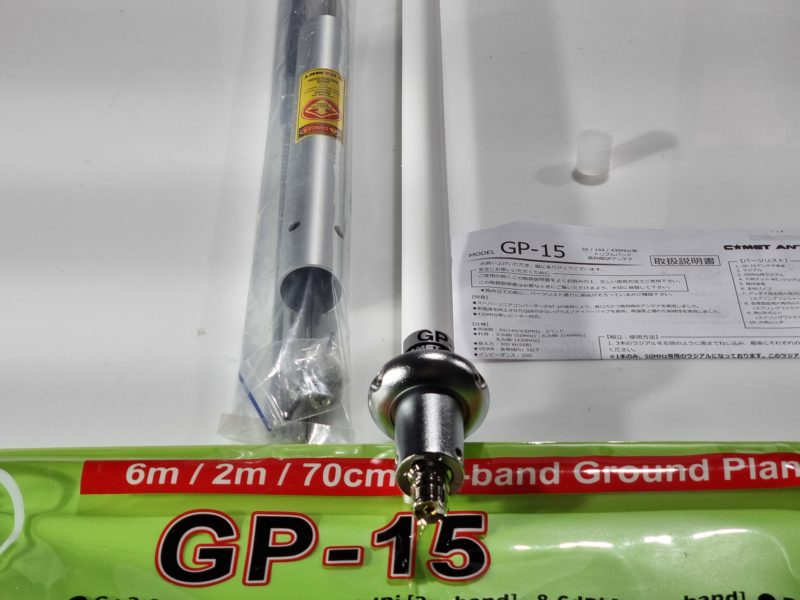

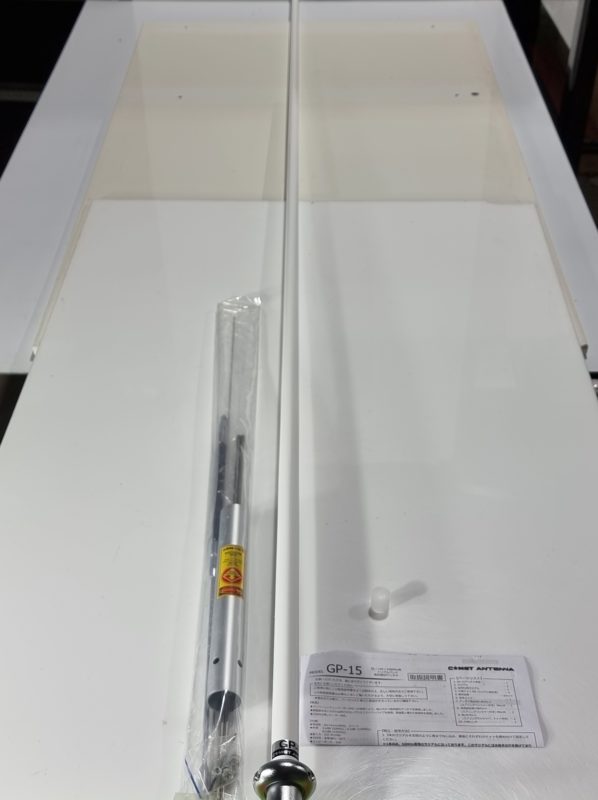

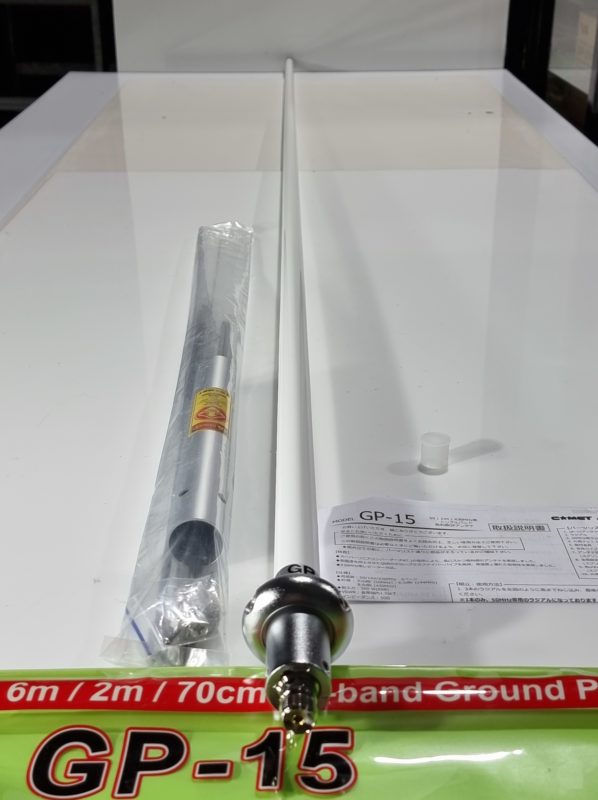

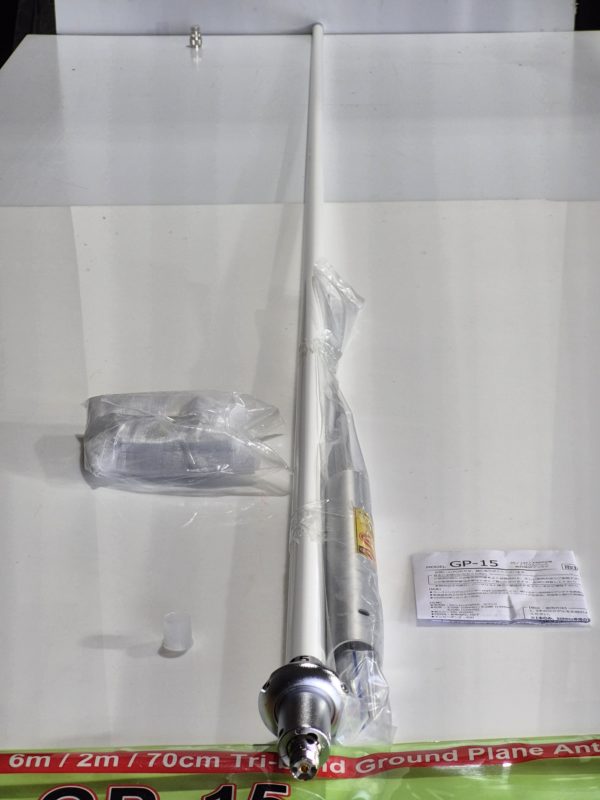

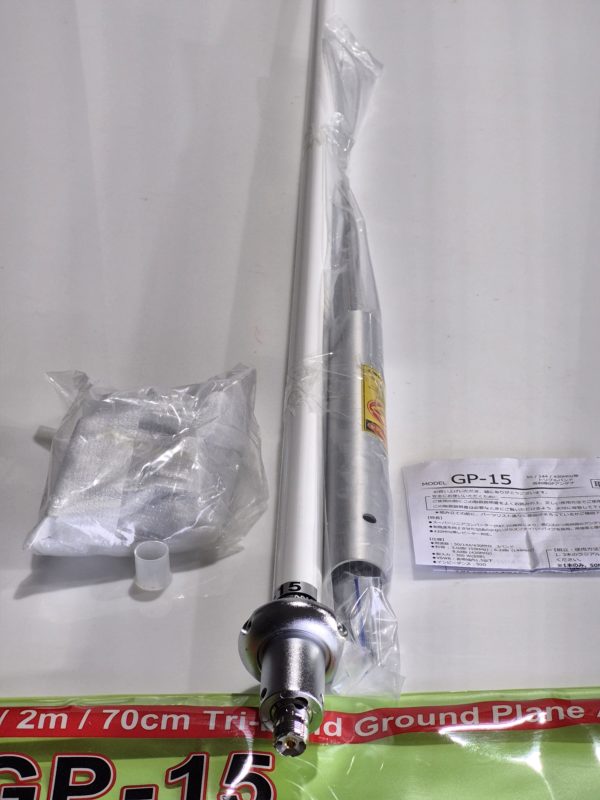

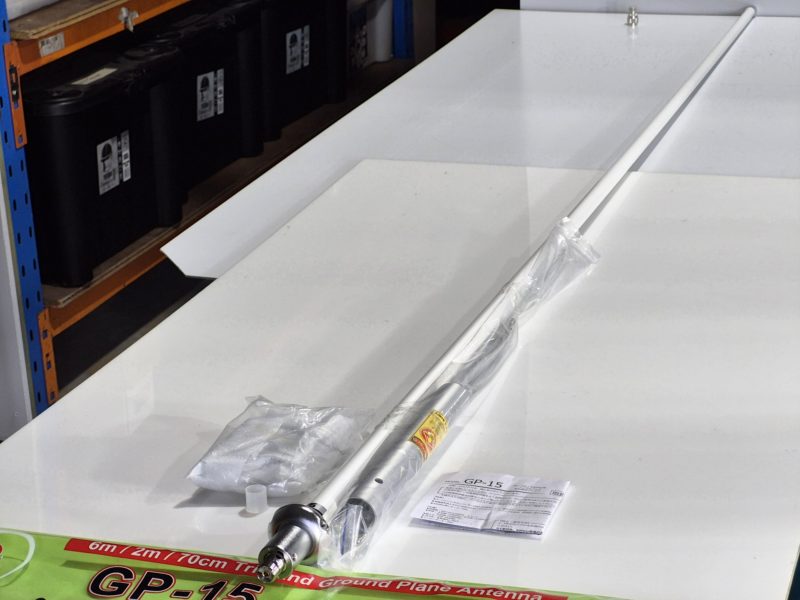

GP-15: The Comet GP-15 Tri-Band VHF/UHF base vertical antennas GP-15 provides good gain figures on the 6-meter, 2-meter, and 70-centimeter bands in a compact 7.9 foot package.
These superior-quality base station antennas feature a one-piece, heavy duty, UV-stabilized fiberglass radome for many years of reliable service.
With the highest power rating in their class, these tri-band base station antennas are ready to handle long QSOs from your high power VHF/UHF radios.
Although light in weight, they incorporate strong, easy to use, extruded aluminum and stainless steel clamp on mounting hardware. When your vertical tri-band base station antennas require compact functionality, good gain, and remarkable durability, remember Comet GP-15 Tri-Band VHF/UHF Base vertical antennas provide excellent overall performance in a relatively small package!
Features:
Omni-directional pattern radiates the signal in all directions
Heavy duty fiberglass survives 110MPH wind
The mounting pipe is uniquely designed to protect the coax/antenna connection from
the elements
Two extruded aluminum mounting brackets, stainless steel U-bolts and hardware included for stable long term performance
TX/RX is possible on all three bands simultaneously (150W max combined power) with the appropriate combiner/triplexer
6M tuning done with tuning radial
Construction: One piece white fiberglass radome, copper radiating element. Mounting
Specifications:
Bands: 145/50/433MHz (2m/6m/70cms) Triband Vertical Antenna
Frequency coverage: 50Mhz / 144 & 433 Mhz
Triband, simultaneous TX/RX possible
Gain: 6M: 3dBi / 2M: 6.2dBi / 440: 8.6dBi
Bandwidth < 1.5:1
6M: 2.5Mhz, tunable
2M: 144-148MHz
70cm: 442-448MHz
Power Rating: 150 W
Length: 7’ 11” / 2.42m
Weight: 3lb 1ozs
Max Power: 150 watts (SSB)
Max Wind Survival: 110MPH
Wind Load: 56 sq inches (.39 sq ft)
Mast Required: 1.25-2.5 inches

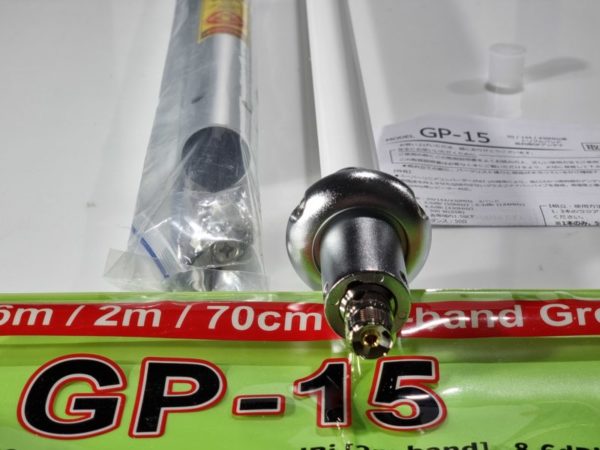

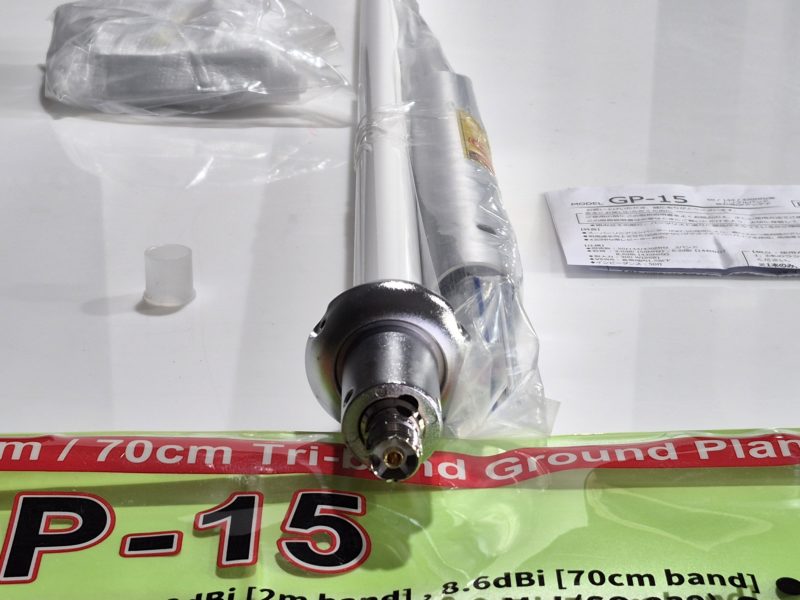

Connector: Integral SO-239
