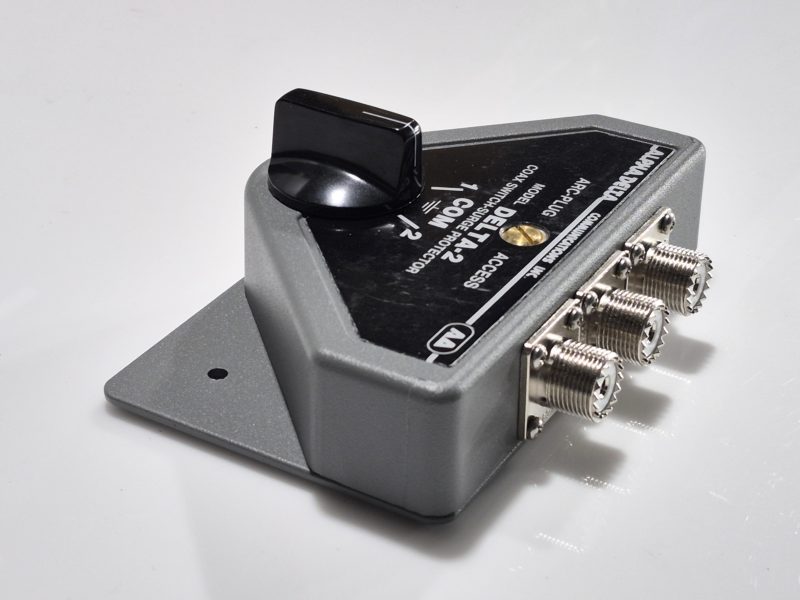

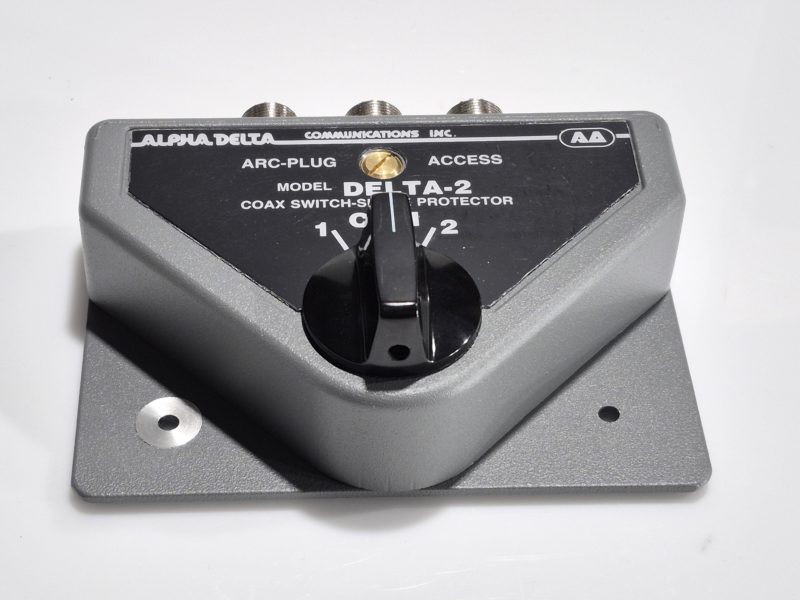

Alpha Delta Delta-2B Antenna Coaxial Switch



Delta 2B: Alpha Delta coax switches have a precision-machined switch shaft and quadrant mechanism for more accurate and stable switching performance.
These switches have a low-loss micro-strip cavity design, positive detent switching, master antenna ground function, a front panel removable arc-plug surge protection module, and excellent HF through UHF performance. The unselected antenna ports are grounded for protection and maximum isolation.

Coaxial Switch: 2-Position
Frequency Range: DC-500 MHz
Power Rating: (0 to 30 MHz): 1,500W PEP/1,500 CW

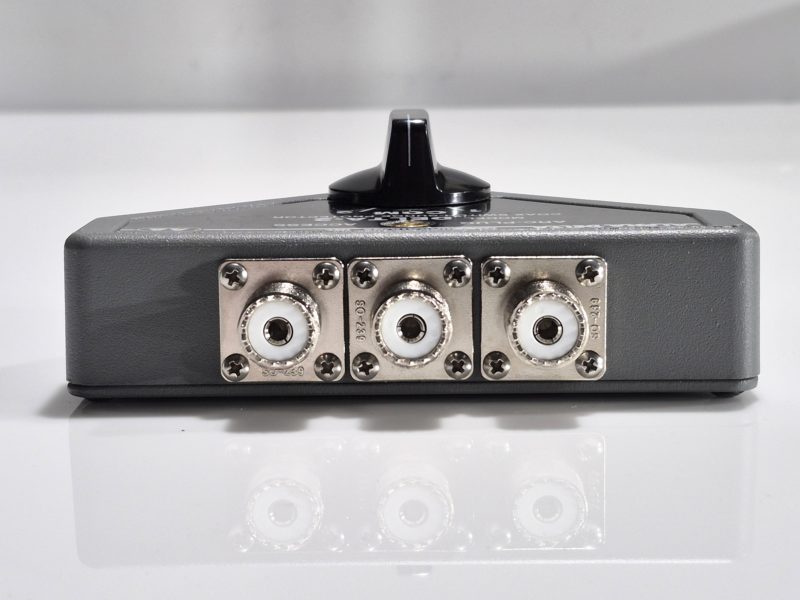

Antenna Switch Connector Type: UHF female, SO-239
Switch Insertion Loss: Less than 0.10 dB.
