Description

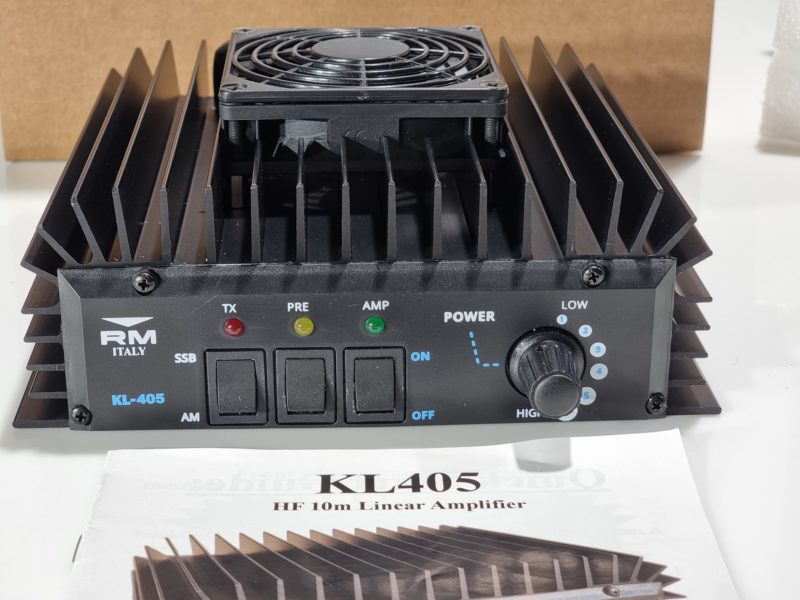

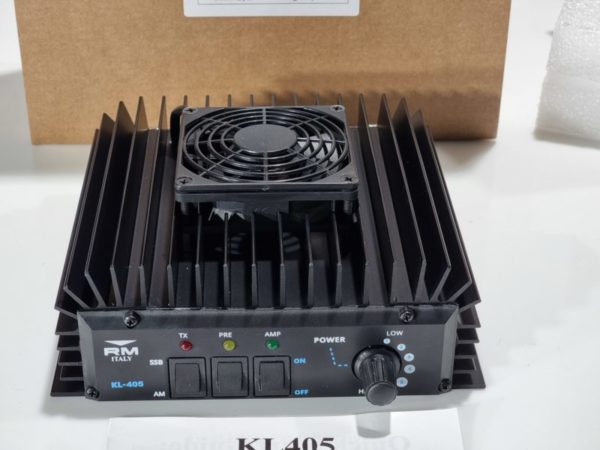

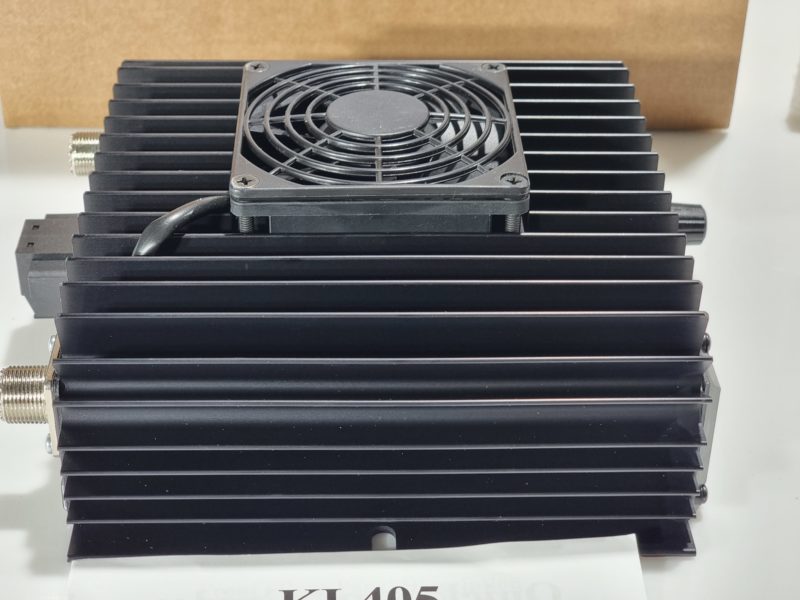

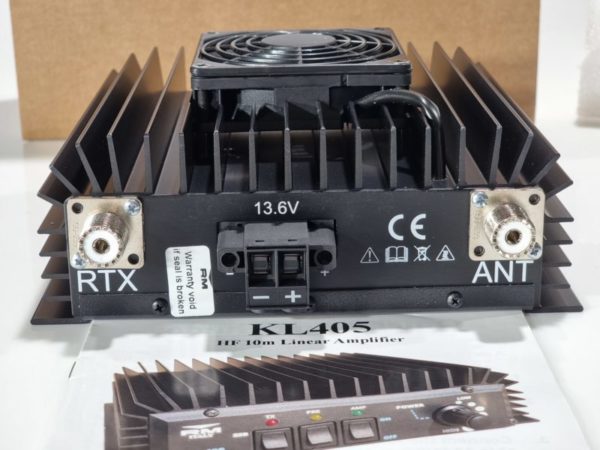

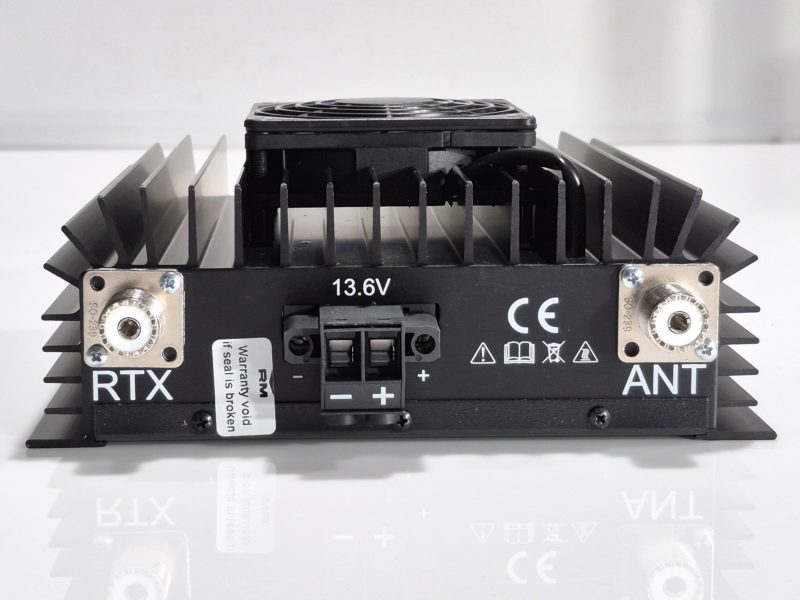

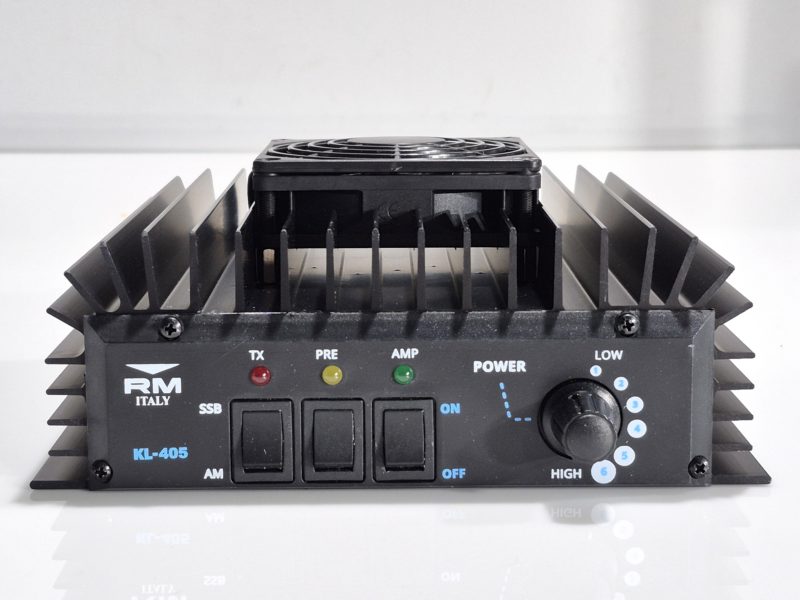

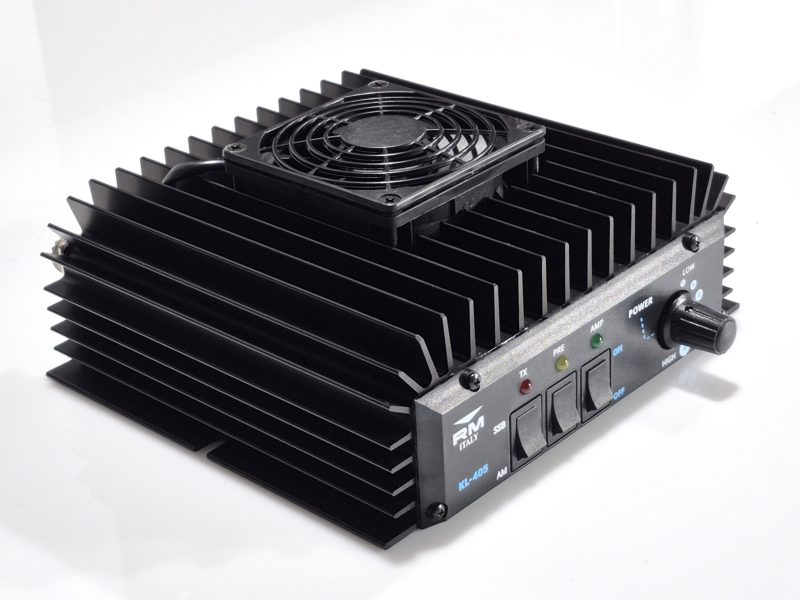

KL-405V: A high power wideband amplifier with variable output power and switchable pre-amplifier (not variable). The output can be adjusted in 6 stages, from approximately 50W minimum to 200W maximum (AM/FM). Fitted with one cooling fan.
Specifications:
Electronic switch
Inversion polarity protection
Frequency: HF 3.5 – 30 MHz
Input energy / power: 12-24 A
Input power: 1-10 W All Modes
Output power: 200 Watts Max SSB/CW
Mode: AM-FM-SSB-CW
Power supply: 13.8Vdc @ 25-Amp current, 30-Amp peak.
Transistor: 2 x RM SD-1446
Fuse: 2 x 12 A
Output power: 6-Levels
Size: 170 x 210 x 62mm
Weight: 980 gr.
Antenna preamplifier 26 dB
