Description

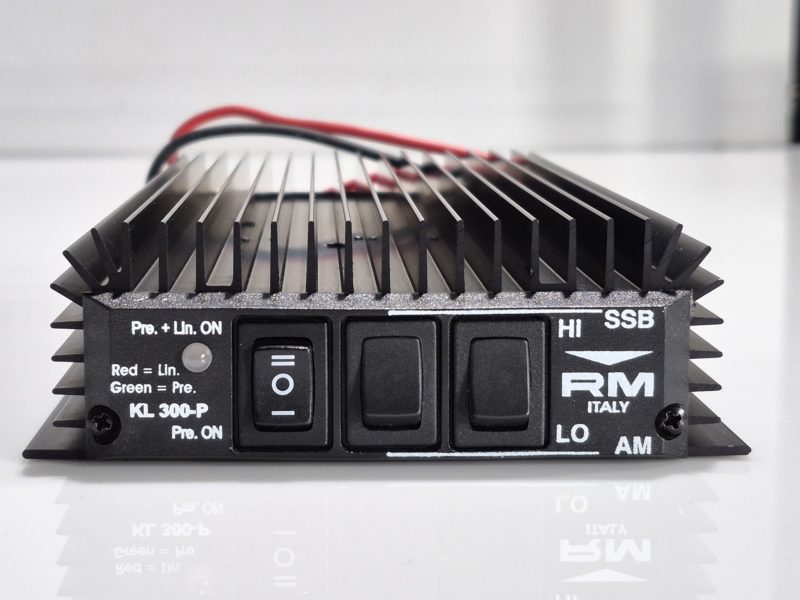

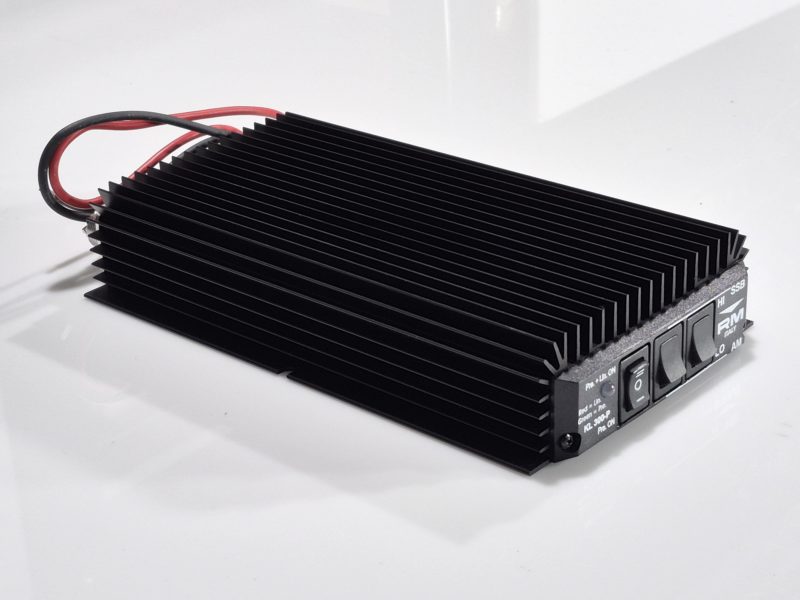

KL-300P: The KL-300 P is a 12V linear amplifier for use in the HF frequency range, with a drive power of 1 to 10W in FM/AM mode, and 2.0 – 20W in SSB mode. KL 300 P also features a 26dB preamplifier with electronic switching, which can be activated via a switch on the front panel.
IDEAL TO BOOST AT LOW COST THE POWER OF HF QRP RIGS
Features:
Electronic switch
Inversion polarity protection
Two output levels
26dB receiving antenna preamplifier
Specifications:
Frequency: 25-30 MHz
Current drawn: 14-20 A
RX Preamplifier: 25dB
Supply: 12-14 Vcc
Input power: 1-5 W (2-10W with the attenuator on)
Input power SSB: 2-10 W (4-20W with the attenuator on)
Output power: 250 W MAX
Mode: AM-FM-SSB-CW
Fuse: 2 × 12 A
Output power level: 2
Size: 109 x 225 x 35 mm
Weight: 605 gr.

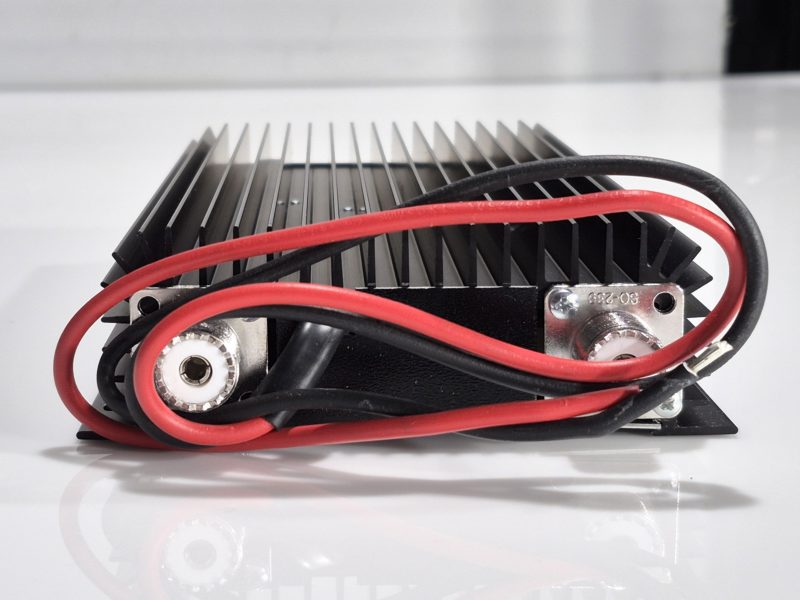

Input connector: UHF (PL) female
Note: IN ORDER TO ELIMINATE ANY AMPLIFIED HARMONICS FROM THE TRANSMITTER WHICH COULD CREATE INTERFERENCE TO TVs AND OTHER DEVICES WE SUGGEST WITH EACH AMPLIFIER THAT OPERATES WITHIN 30 MHz THE USE OF AN ADDITIONAL LOW PASS FILTER.
