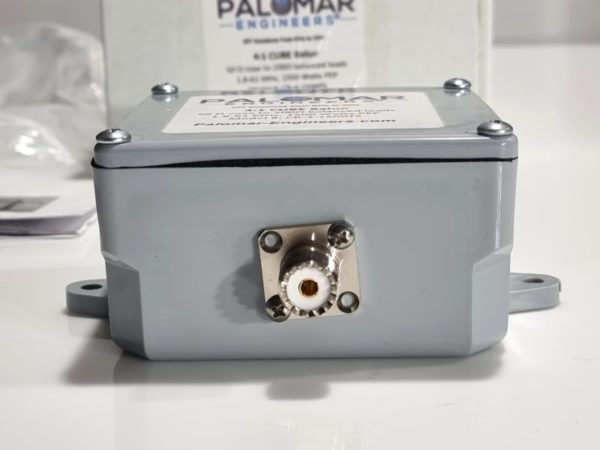

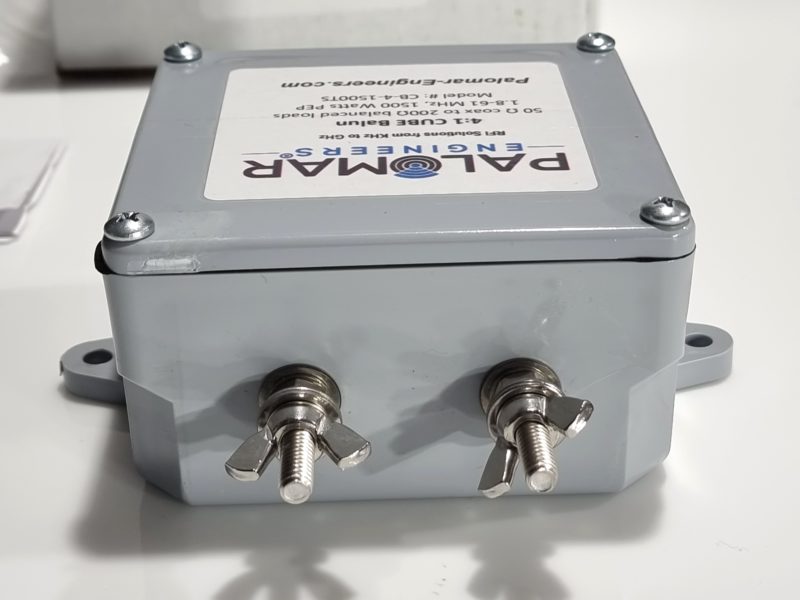

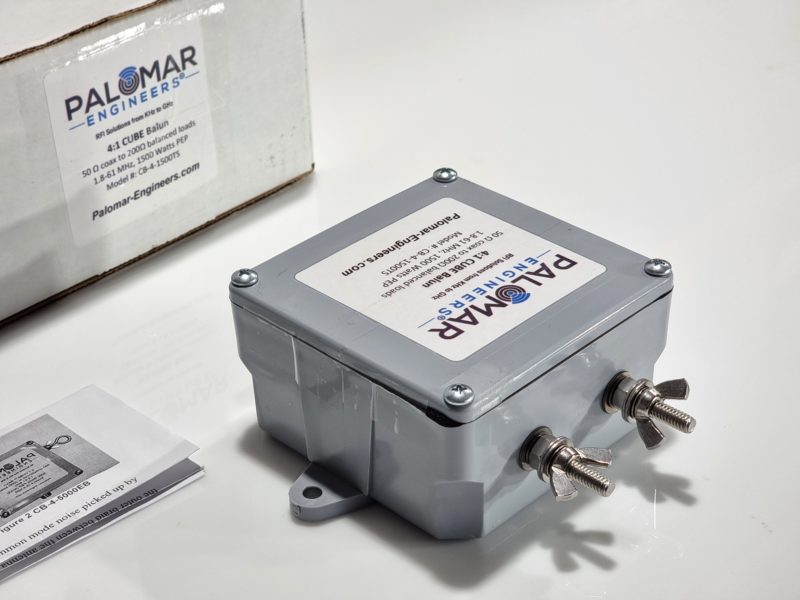

Palomar CB-4-1500TS Cube Current Balun 4:1 1.5KW



CB-4-1500TS: The CB-4-1500 Balanced output Balun is a 4:1 impedance transformer designed to step down balanced antenna loads from ladder line/dipole/beam feed point impedances of 600-50 Ohms to 150-16.7 Ohms unbalanced coax at full legal amateur power of 1500 watts PEP ICAS/500 Watts FT8/RTTY from 1.8 to 61MHz. When connected to an antenna tuner output capable of tuning a 3:1 SWR range (16.7-150 Ohms for 50 Ohm coax) the CB-4-1500 provides a suitable range for antenna tuner adjustment to 1:1 SWR as seen on the input of the antenna tuner. Also works with 75 Ohm coax as well.

The Balun can be used to connect unbalanced 50 Ohm coax to ladder line fed balanced antennas like a center fed zepp, log periodic beam, G5RV, full wave loops, etc. It is not meant to be used with unbalanced antennas like verticals, OCF antennas, etc, unless they are also fed with ladder line and the feed point impedance presented to the Balun is in the range of 600-50 Ohms.

Typical impedance transformation ratios measured for the CB-4-1500TS are shown in the graph below. Notice that the impedance transformer is useful up to 750 Ohms and down to 50 Ohms impedance at the ladder line feed point converting these impedances very near 4:1 from 1.8-31MHz. This impedance transformation covers most feed point impedances seen at the end of the ladder line for typical ladder line fed HF antennas. Keep the coax to transmitter line as short as possible to minimize coax line losses. Useful out to 200 MHz under 2:1 SWR.
Antenna Compatibility:
Dipoles: Extended double zepp, folded 2 wire, off center fed (OCF);
Loops: Horizontal, vertical – coax fed

Balun: 4:1
Frequency: 1.8 / 61 MHz
Power rated: 1.5kW PEP
Enclosure Size: 4″ x 4″ x 2″
Weight (pounds): 2
