Mosley TA-32-JR-N Triband 2-Element Beam

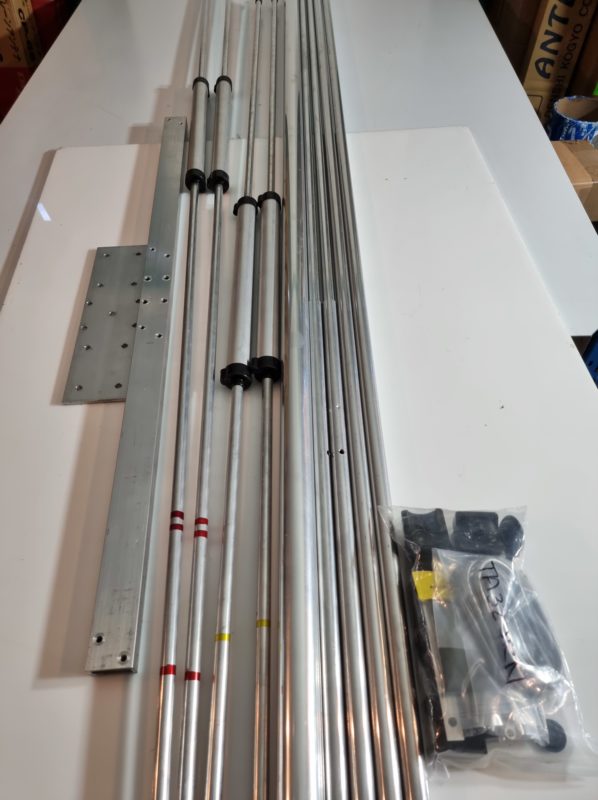

TA-32-JR-N: The ORIGINAL compact, lightweight beam! Like other Mosley designs, the Junior has been imitated by the competition, but never duplicated! The Trap Master series, still the most copied, broadband, multi-band beams made! Rugged construction and designed for the Amateur with a limited space and a tight budget. As with all Mosley antennae your elements and boom pieces are all pre-drilled and colour coded, which makes assembly quick and easy. Our hardware is made of the best grade of stainless steel and our tubing is aircraft grade drawn aluminum.

Frequency MHz: 28, 21, 14
Power rating: 500 CW, 1200 SSB
Forward gain: 10m,dBd 5.5
Forward gain: 15m,dBd 4.5
Forward gain: 20m dBd 3.1
Boom Length: 6ft /1.83m
Max. Element: 26.67 ft. / 8.13 m
Turning Radius: 13.75 ft. / 4.19 m
Assembled weight: 14 lbs. / 6.53 kg
Wind surface area: 2.5sq ft. / 0.23sq m
Wind load 62 lbs. / 28.12 kg @ 80 MPH
Mast Mount hardware (equipped): 1.5 in / 3.81 cm
VSWR at frequency: 1.0/1 to 1.6/1
