Description
HyperFlex (5) / 212: Coaxial cable with a diameter of only 5.4 mm. with low losses, better features than the Belden H155. Perfect for portable use, CB radio, modem – router 4G / LTE, patch cords, jumpers, amplifiers, etc.
Features:
Radio active braid: 88% SCREENING – 120 wires of copper made with 24 spool machines (instead of 16). Thanks to 50% more crossovers, grants exceptional Screening Attenuation (SA) and reacts to twisting and bending like a spring.
Jacket: UV-resistant black PVC overall Ø 5,4mm ± 0,15 (0.212 inches ± 0.0059 )
Best performances for a 5,4mm (.212″) coax available on the market.
Extreme flexibility: the most flexible cable in the M&P coax range.
Specifically designed for tight bending’s and rotor antennas.
Best velocity ratio in the coax range: 87% !
Perfect for portable use, CB radio, modem – router 4G / LTE, patch cords, jumpers, amplifiers, etc.
Excellent for Wi-Fi signal extension, Modem-Router 2G 5G, Hotspot.
Specifications:

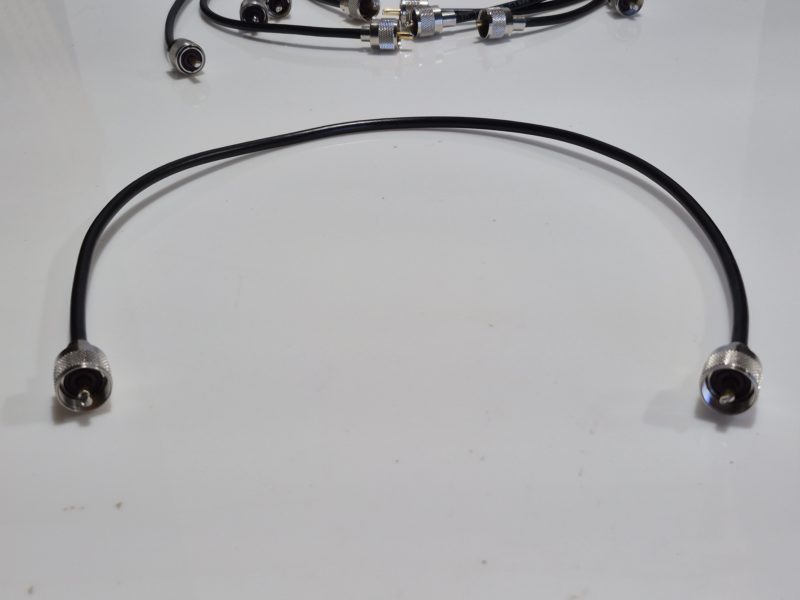

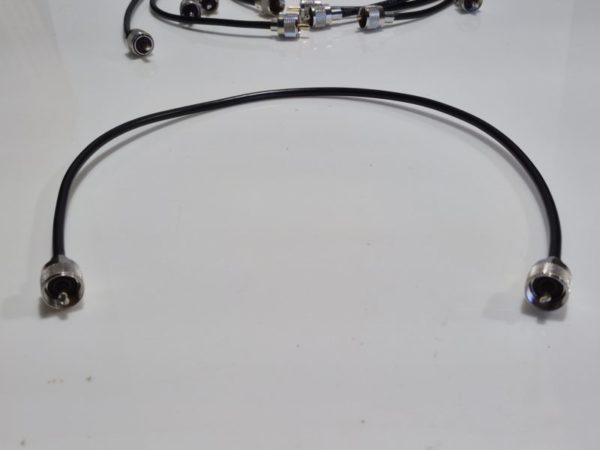

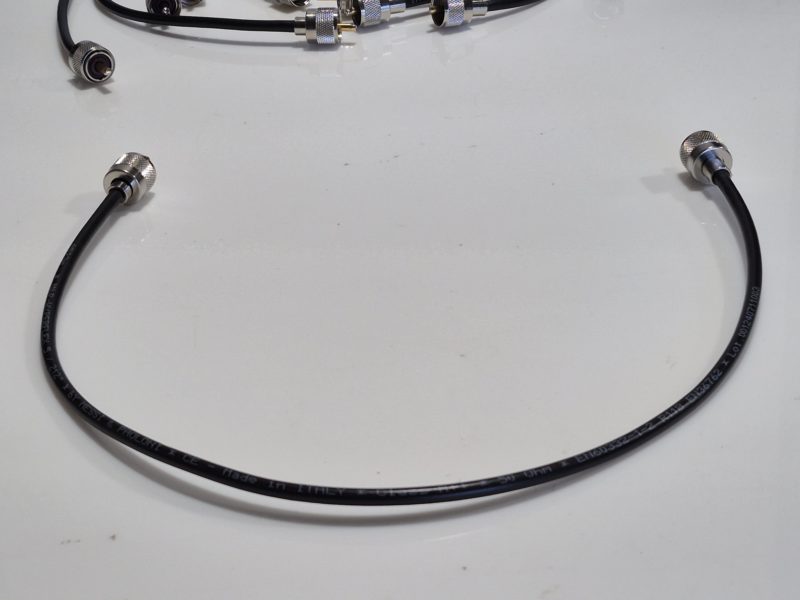

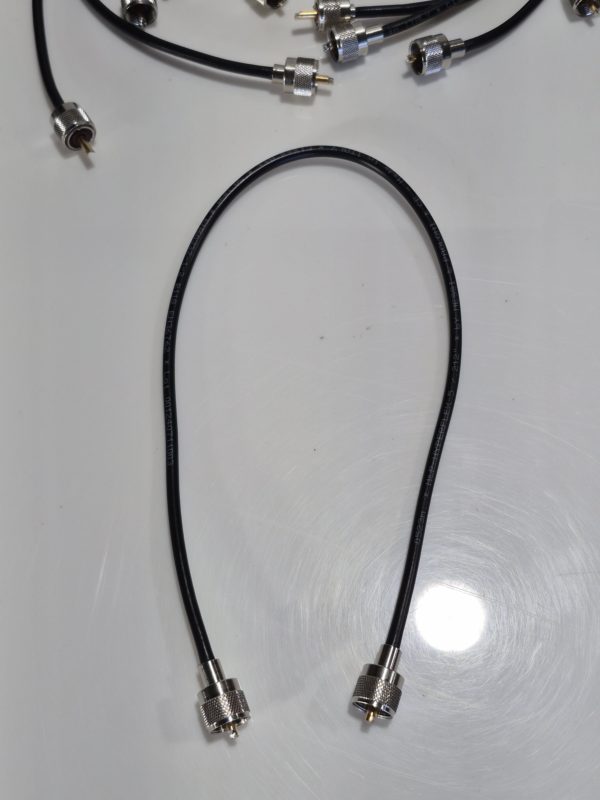

Patch lead length: 60cm (12″in)
Impedance @200 Mhz: 50 Ohm ± 3
Minimum bending radius: up to 15 bends: 50mm (1.97 in) single bend (choke): 25mm (0.98 in)
Temperature: -45°C to +70°C (-49°F to +158°F)
Capacitance: 74 pF/m ± 2 (22.6 pF/ft ± 2)
Velocity ratio: 87%
Screening Efficiency: (SA) 100-2000 MHz >105 dB
Screening Class: A++
Inner conductor resistance: 14 Ohm/Km (4.3 Ohm/1000ft)
Outer conductor resistance: 11 Ohm/Km (3.4 Ohm/1000ft)
Tension test (spark test): 4 kV
Net weight (100m/100ft): 4,4 Kg (3.0 lb)
Maximum peak power: 2.900 WATT
Power Handling: 1,8 MHz 1274 W 400 MHz 115 W / 3,5 MHz 987 W 430 MHz 111 W
Connectors: UHF (PL), N, BNC, SMA, TNC
ATTENUATION: (20°C /68°F)
FREQUENCY: dB/100m dB/100ft
1,8 MHz 1,4 0,4
3,5 MHz 1,9 0,5
7 MHz 2,3 0,7
10 MHz 2,6 0,8
14 MHz 3,0 0,9
21 MHz 3,6 1,1
28 MHz 4,1 1,2
50 MHz 5,5 1,7
100 MHz 8,0 2,4
144 MHz 9,6 2,9
200 MHz 11,4 3,4
400 MHz 16,3 4,9
430 MHz 17,0 5,1
800 MHz 23,4 7,1
1000 MHz 26,4 8,0
1296 MHz 30,5 9,3
2400 MHz 42,5 12,9
3000 MHz 48,1 14,6
4000 MHz 56,9 17,3
5000 MHz 65,2 19,9
6000 MHz 72,9 22,2
