Icom SM20 Desk Microphone

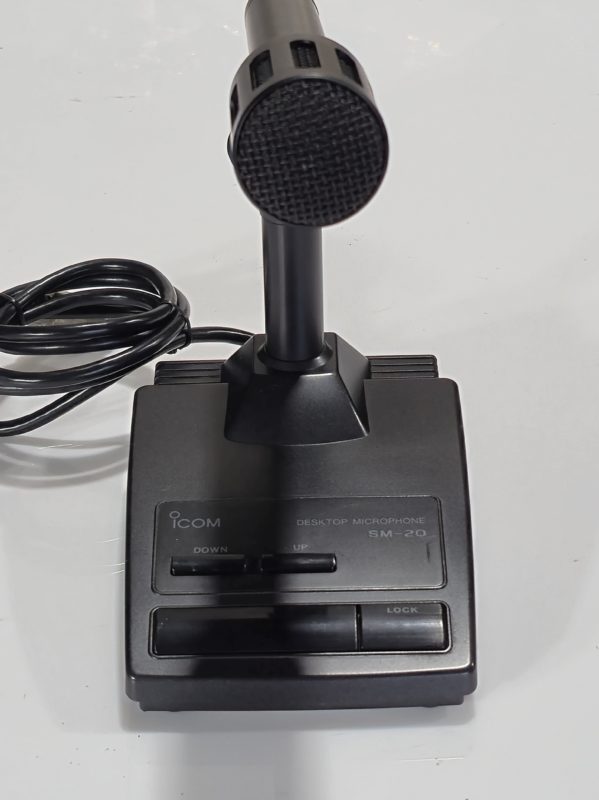

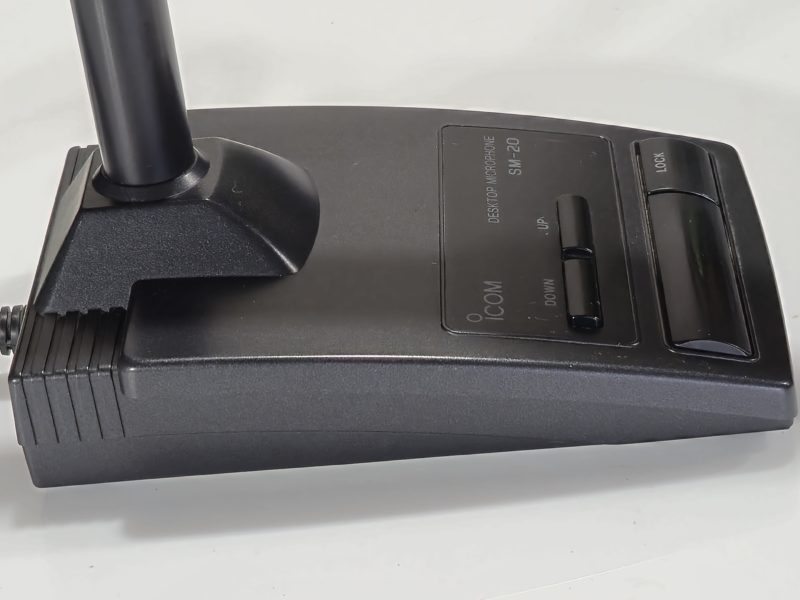

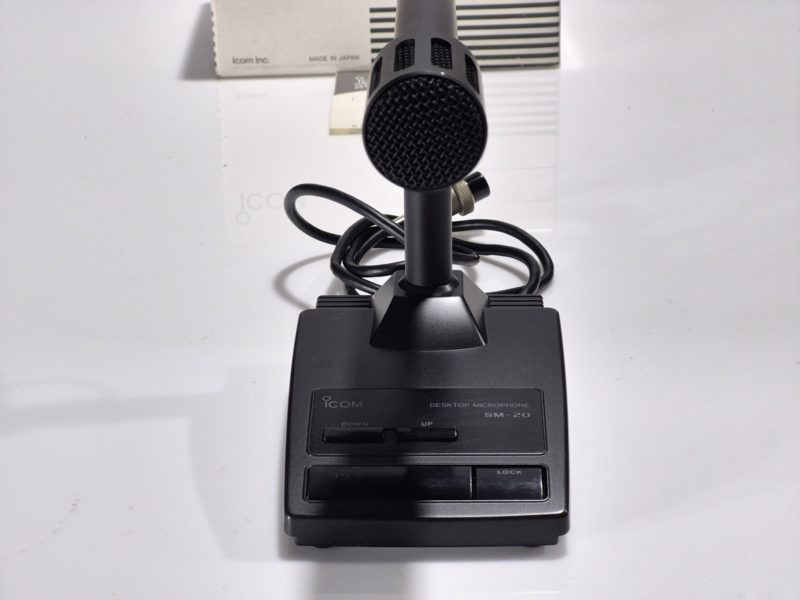

SM-20: The ICOM SM-20 is a unidirectional, electret microphone designed for base station operation with many Icom transceivers. (It cannot be used with non-Icom transceivers since the power is supplied from the connected transceiver). The SM-20 features Up-Down tuning (on compatible Icom transceivers). There is a switch for PTT (push to talk) and also a lock feature.

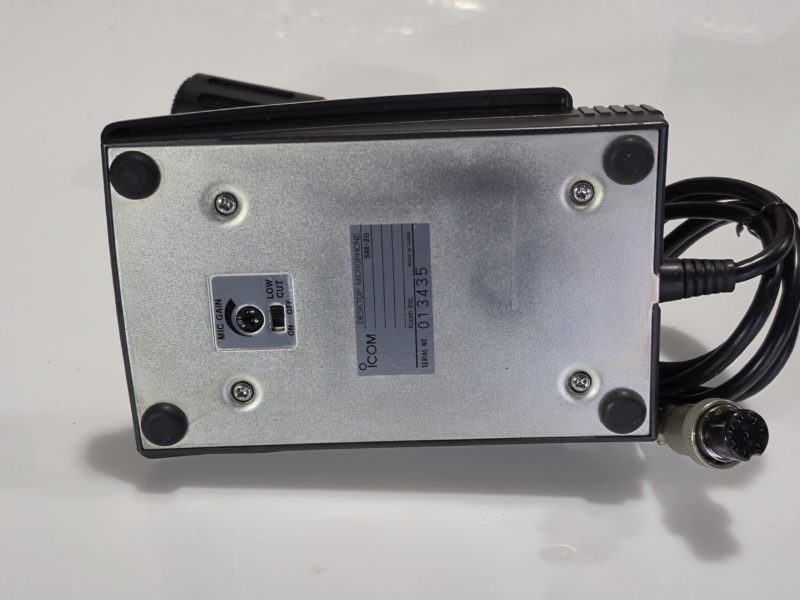

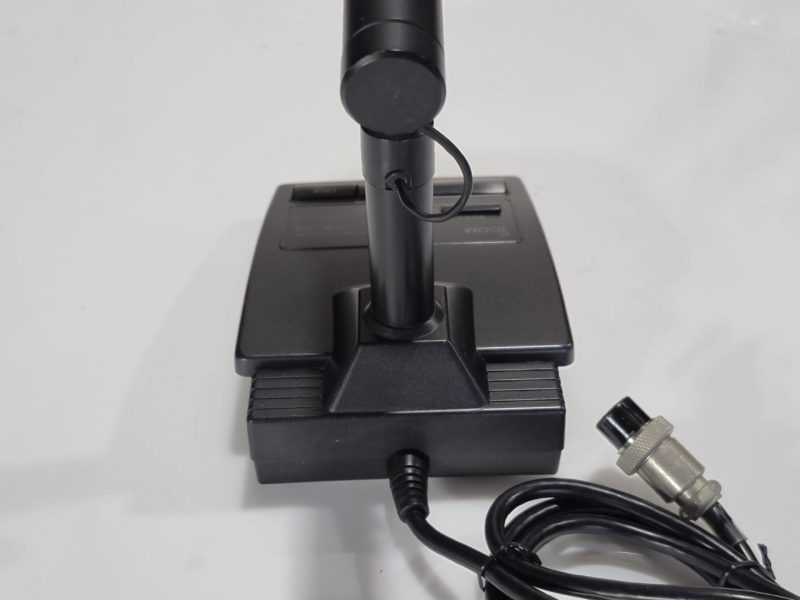

On the bottom of the mic base there is a gain adjustment and a Low Cut switch. This mic is powered from the Icom transceiver. The mic cables terminate to a standard Icom 8 pin mic plug.

Compatible with ICOM transceivers:
IC-706, IC-707, IC-718, IC-725, IC-728, IC-735, IC-736, IC-738, IC-746, IC-751, IC-756, IC-775, IC-910, IC-7400, IC-7600, IC-7700, IC-7800
