Description

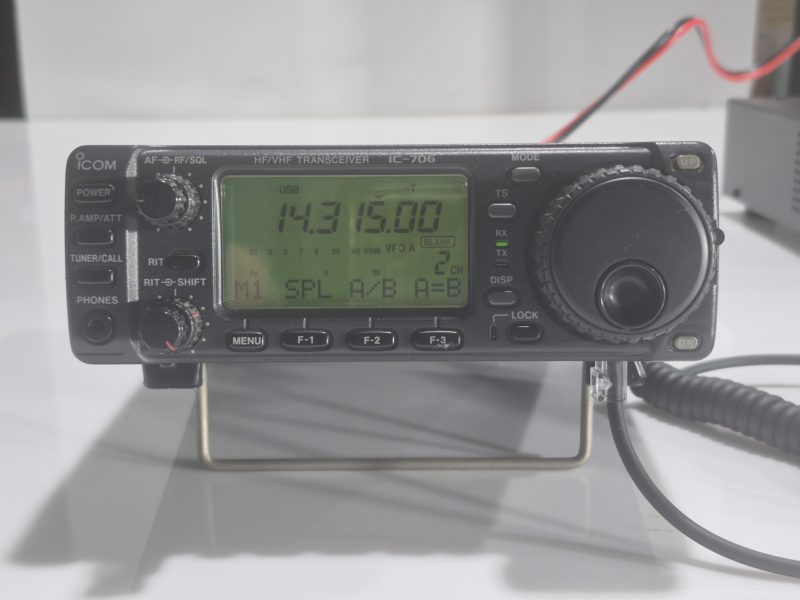

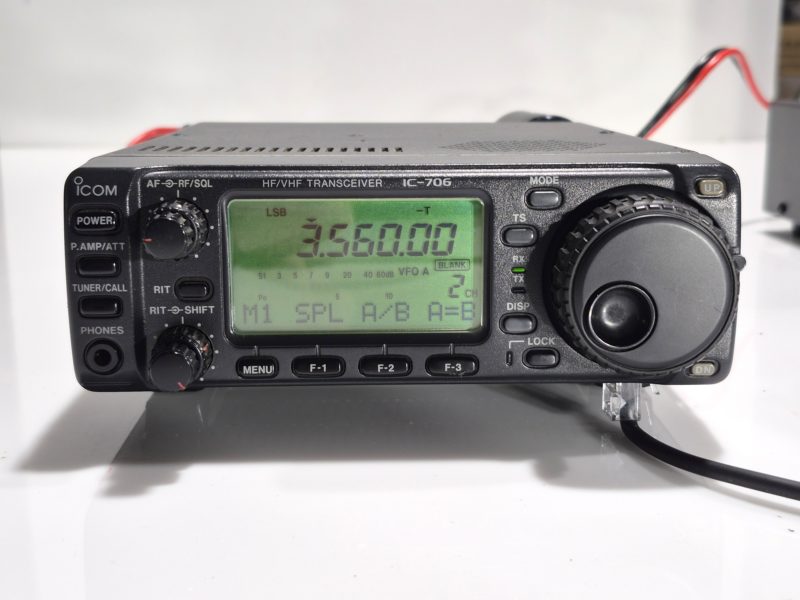

IC-706: The IC-706 is a much sought after transceiver. Covering HF bands as well as 2-meter VHF in a compact package great for either home or portable use.
Good clean unit. Microphone & DC power lead included.
Features / Specifications:
HF/6m/2m all mode transceiver (base or mobile)
RX: 30 kHz-200 MHz
TX: All HF amateur bands + 6 meter and 2 meter amateur bands
Output power:
SSB/CW/RTTY/FM: 5 to 100 W (1.8 – 50 MHz band); 1 W to 10 W(144 MHz band)
AM: 2 W to 40 W (1.8 – 50 MHz band); 1 W to 4 W (144 MHz band)
Mode: LSB/USB, CW, RTTY (FSK). AM, FM, WFM (receive only)
Number of memory channels: 102 (99 regular, 2 scan edges and 1 call)
Power Supply Requirement: 13.8 V DC ±15%, 20 A
Frequency resolution: 1 Hz minimum
Antenna connector: 2 x SO-259 (one for HF/50 MHz, the other for 144 MHz)
Dimensions: 167(W) x 58(H) x 200(D) mm, 6.6(W) x 2.28(H) x 7.88(D) in (projections not included)
Weight: 2.5 kg; 5 lb. 8 oz.
Receiver tuning range: 30 kHz-200 MHz
Receiver performance optimized for the Amateur radio bands
Receiver performance specifications guaranteed for the following ranges:
500 kHz – 4.000 MHz
4.500 MHz – 8.000 MHz
9.000 MHz – 29.995 MHz
50.000 MHz – 54.000 MHz
144.00 MHz – 148.00 MHz
Receiver performance outside of the guaranteed range may vary.
Spurious emissions: Less than -50 dB (1.8 – 28 MHz bands); Less than -60 dB (50 – 144 MHz bands)
Carrier suppression: Less than -40 dB
Unwanted sideband: Less than -50 dB
