Description

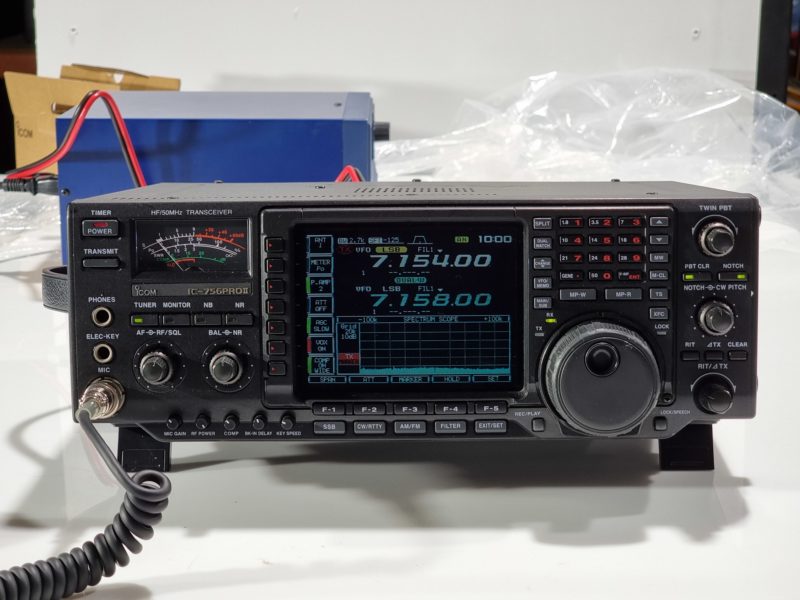

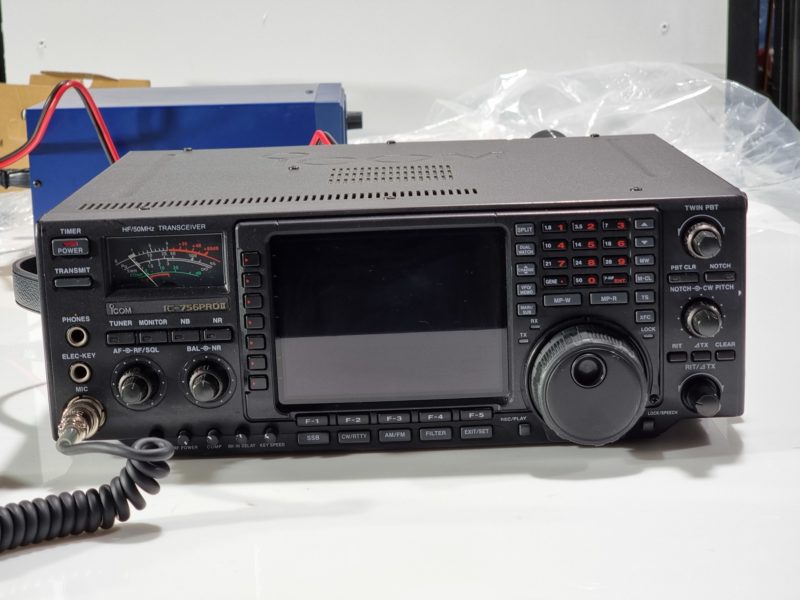

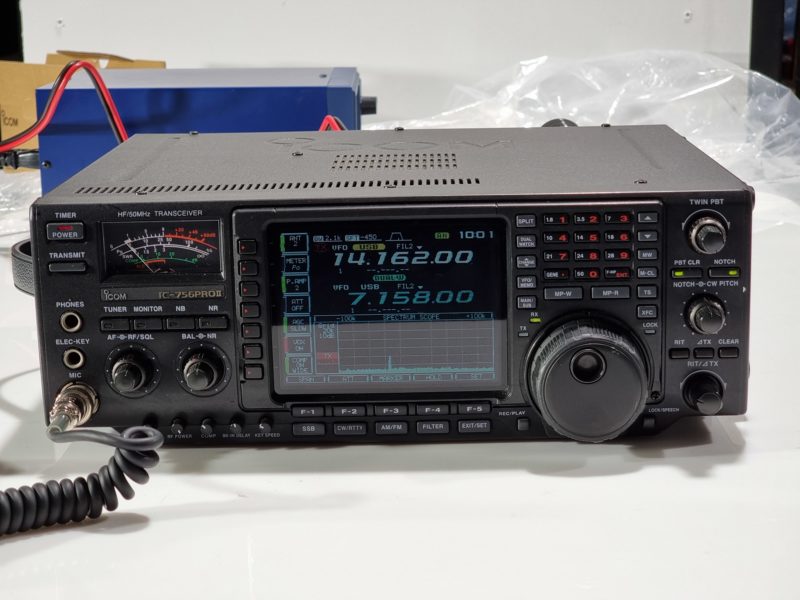

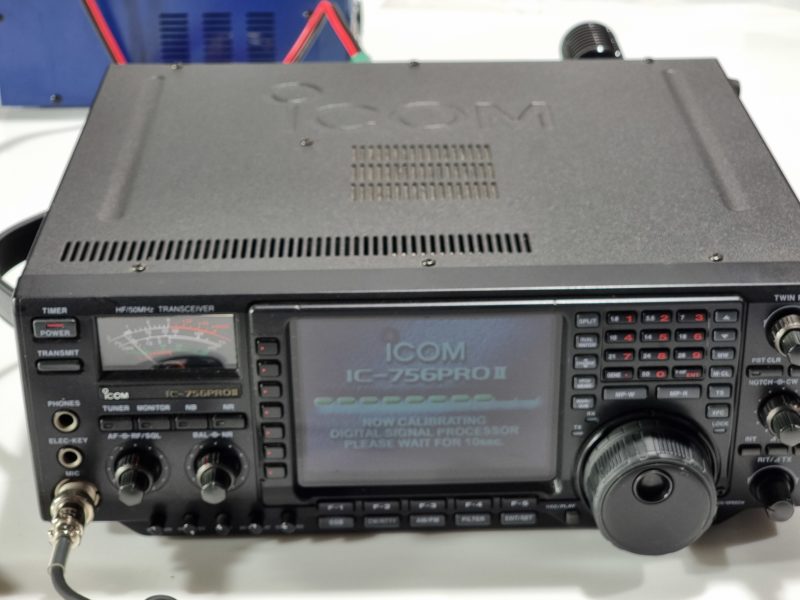

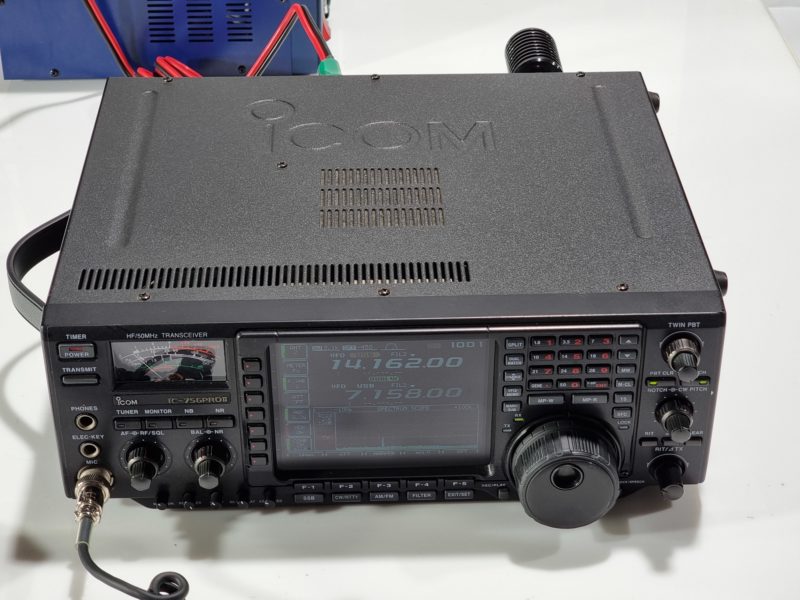

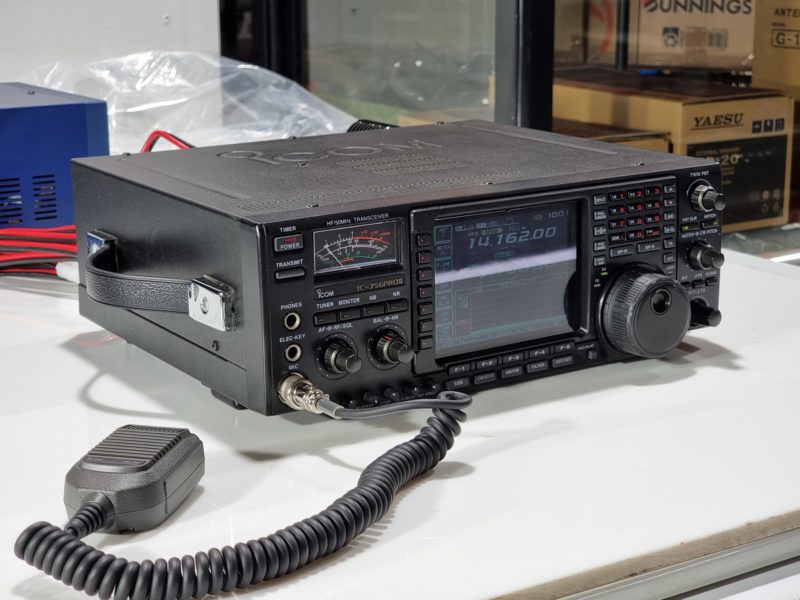

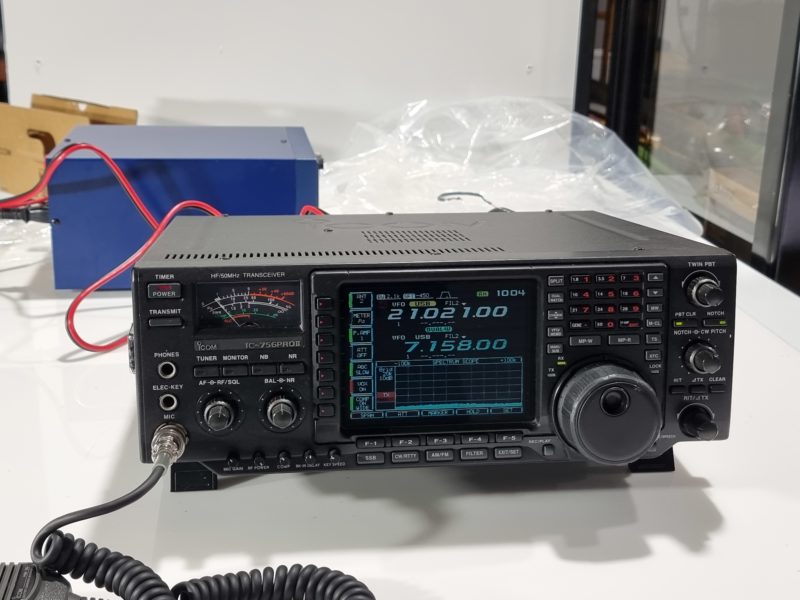

IC-756PROll: The Icom IC-756 Pro II is the worthy successor of the famous Icom 756, Icom 756 Pro, and covers all nine HF ham bands plus 6 meters (receive from 30 kHz – 60 MHz). The high resolution 4.9 inch TFT color dot matrix LCD display provides more operating information than you’ve ever had before, including a real-time spectrum scope (± 12.5, ± 25, ± 50 or ± 100 kHz). You can even select from seven different display fonts and eight different screen backgrounds. The ProII features a 32-bit floating point DSP Digital IF filter with 51 selectable bandwidths. Soft and sharp filter shapes can be selected in both SSB and CW modes independently. You also get: microphone equalizer, manual notch function, twin peak audio filter, digital twin pass band tuning (PBT), all mode squelch, multi-function analog meter, including PSK31, and much more. No additional filters or high stability crystal oscillators are available or needed. The filters are the sharpest – more selective than any crystal or mechanical filters. The selectivity lets you pull out weak signals like never before.
Your transmit audio is fully configurable with the sophisticated 121 position microphone equalizer. A powerful RF speech compressor is great for breaking through noise to grab that DX contact.
Specifications:
RF output power: AM: 5-40 W / FM: 5-100 W / SSB (PEP): 5-100 W / CW (DC): 5-100 W
Frequency range: TX: 10-160 m + WARC / 50-54 MHz / RX: 0.03-60 MHz
Tuning steps: 1 Hz, 0.1 / 1 / 5 / 9 / 10 / 12.5 / 20 / 25 KHz
Frequency stability: Better than ±0.5 ppm (-10 to +50°C / +14 to +122°F)
Mode: AM / FM / SSB / CW / RTTY
Channels / memory management: 99 regular / 2 scan edge / Non-volatile EEPROM storage Repeater shift / offset: ±0 to 4 MHz in 1 KHz steps
Power supply: 13.8 VDC ±15%
Current drain / power consumption: RX: Max 3.5 A TX: Max 23 A

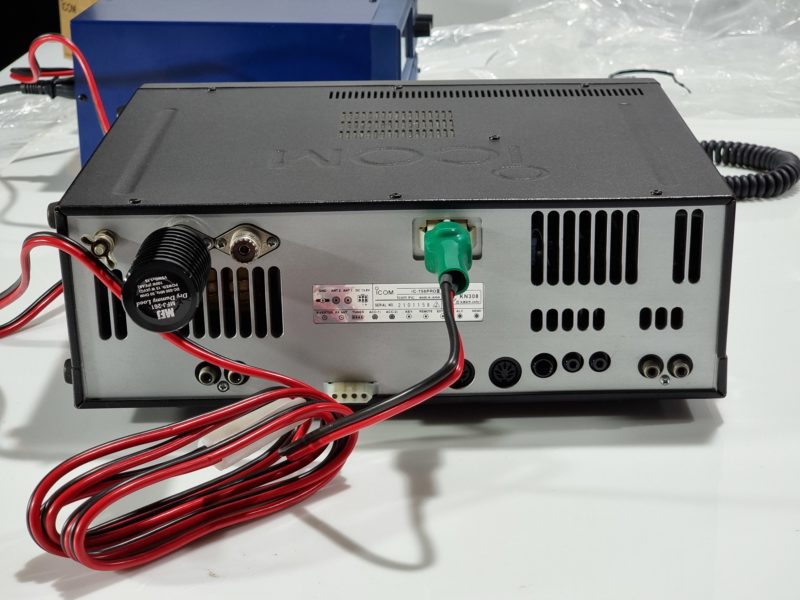

Antenna impedance / connector: 50 Ohm / Two SO-239
Display: 5-inch (diagonal) TFT color LCD
Dimensions (projections not included): 340(W) x 111(H) x 285(D) mm; 13.37(W) x 4.37(H) x 11.22(D) inches
Other features: 32 bit IF-DSP. Built-in auto-AT (HF: 16.7-150 ohm / 6 m: 20-125 ohm). CTCSS/PL. Built-in RTTY demodulator and keyer. 5″ color TFT. CI-V computer control.
Output power (continually adjustable): SSB/CW/RTTY/FM: 5 -100 Watts / AM: 5 – 40 Watts
Carrier suppression: 40 dB
Unwanted sideband suppression: 55 dB
Microphone connector: 8-pin connector (600 ohms)
Weight: 9.6 Kg (21.16 lb)
NOTE: RADIO SUPPLIED WITH DC-POWER LEAD AND SM-20 DESKTOP MICROPHONE.
