Description
NOTE: NEW SHIPMENT JUST ARRIVED

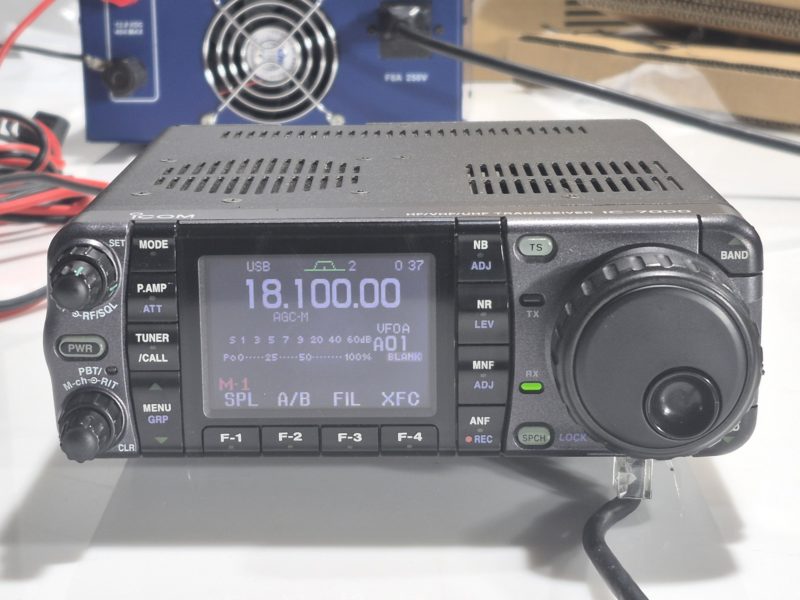

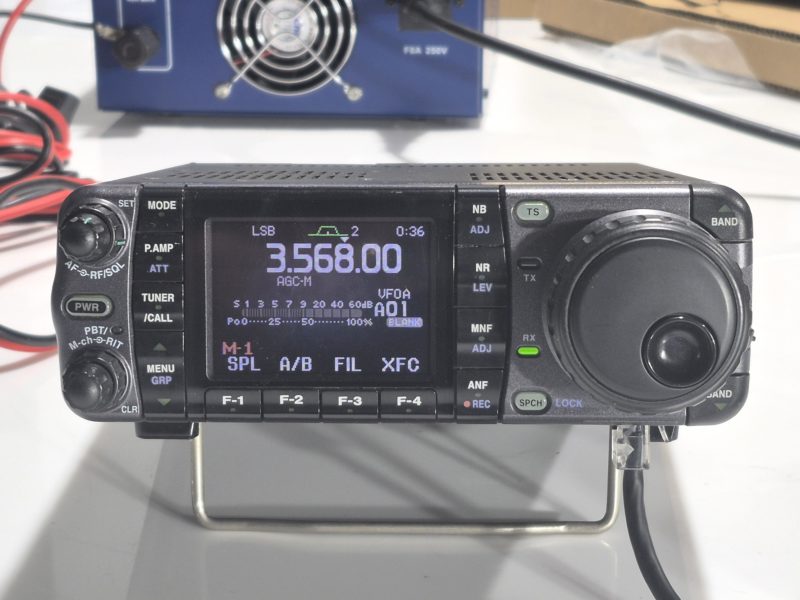

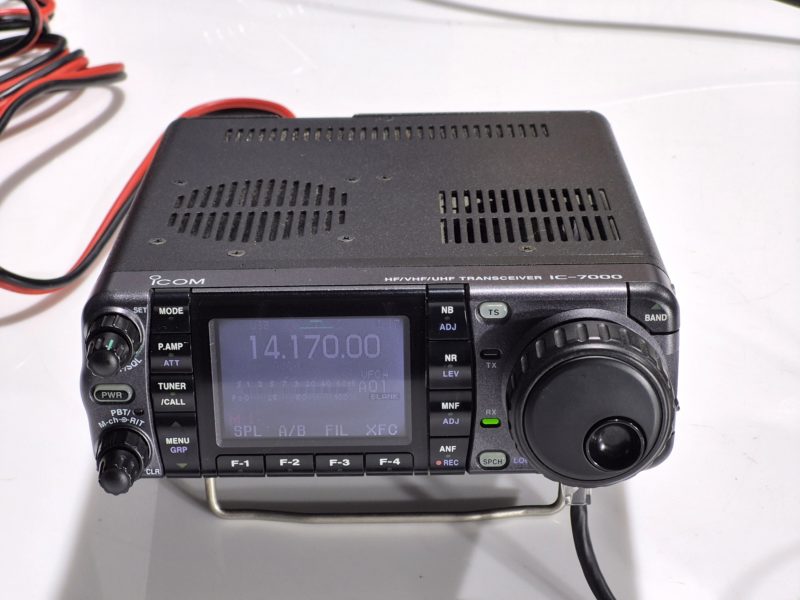

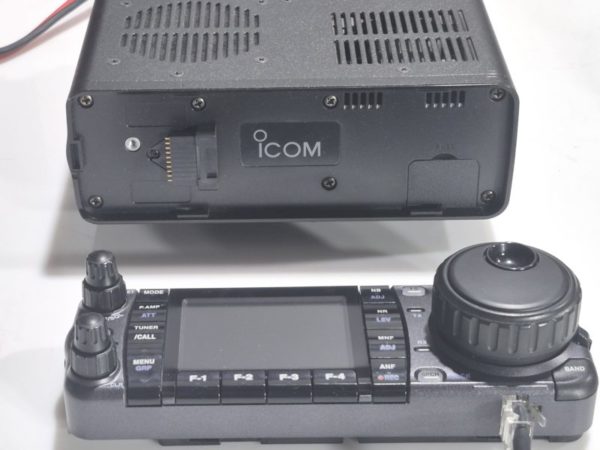

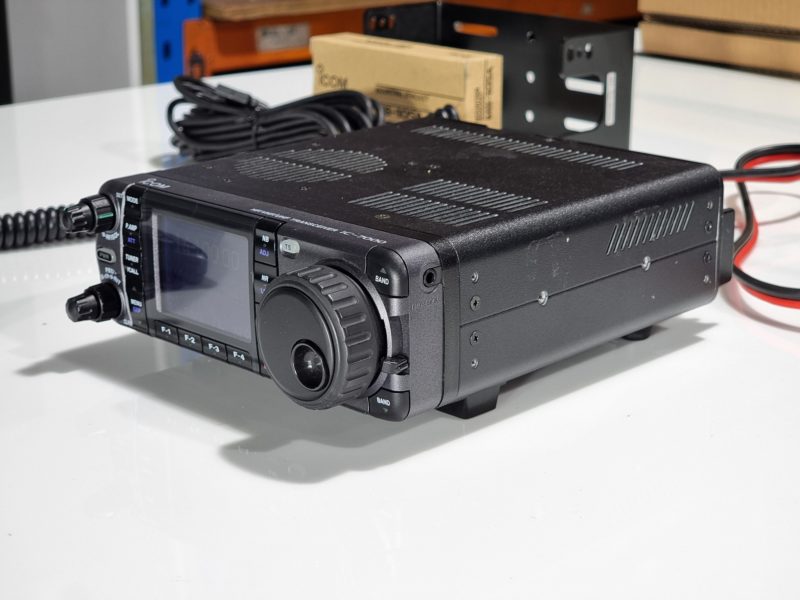

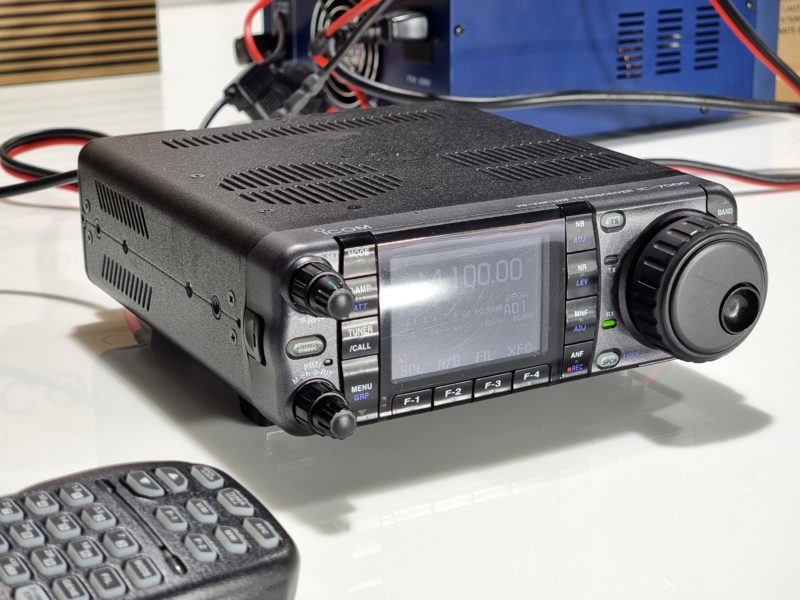

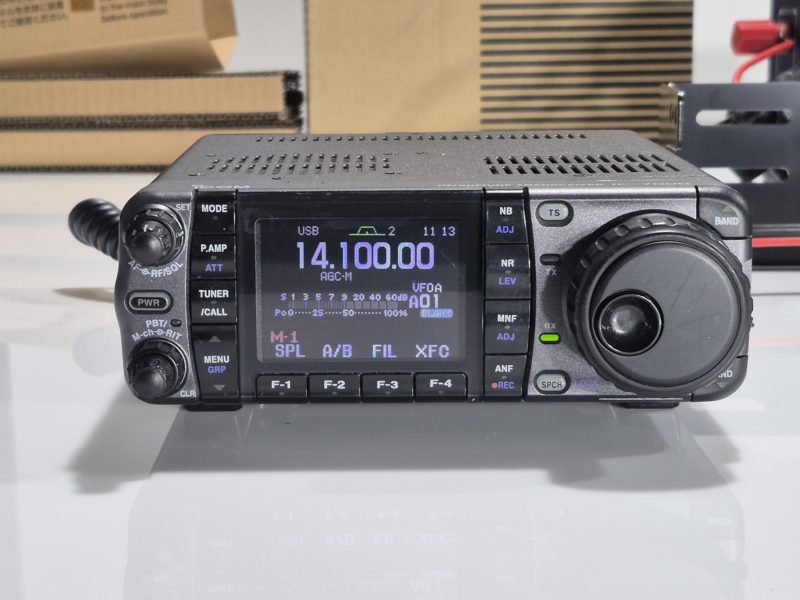

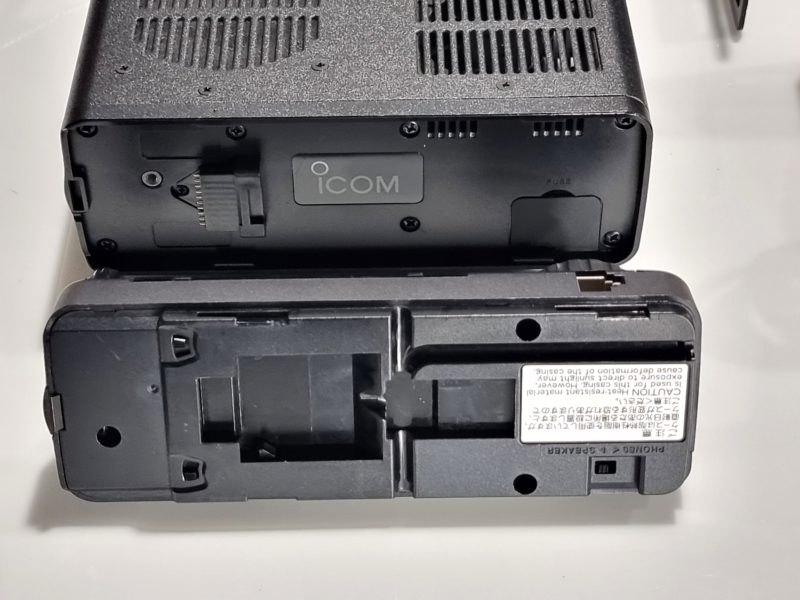

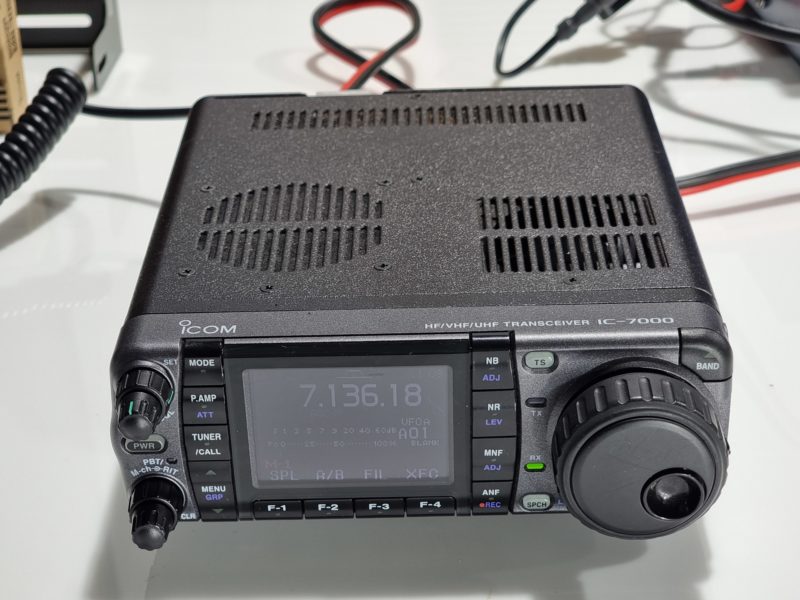

IC-7000: IC-7000 HF/VHF/UHF all mode transceivers are your best of your base station radios–gone mobile! These multi-mode mobiles have features found only on base rigs–41 filter bandwidths with a sharp or soft filter shape and all of the adjustable digital IF filters you need at your fingertips–no optional filters are needed! Plus, they have variable twin pass band tuning, 503 alpha tag memories, a DSP RF speech compressor, VOX, and an adjustable SSB transmit bandwidth! Think of them as small IC-7600s–with extra bands! ICOM IC-7000 transceivers are packed with the latest dual DSP chip technology that delivers superior transceiver performance for all of the major ham bands, from HF to 70cm! These small but mighty transceivers have high-power MOS-FET power amps for stable, high-quality output with low inter-modulation distortion (IMD). They also feature a full 100 watts on HF and 50 MHz, 50 watts on 144 MHz, as well as 35 watts of output on 430/440 MHz. Add to this dedicated functions keys for eight of your most-used radio functions and an amazing high-tech, high-resolution color display with a 2-mode band scope function to catch your eye. And all of this comes with a detachable face plate! How many radios do you need? Just one, if it’s an ICOM IC-7000 HF/VHF/UHF all mode transceiver. From your shack to Field Day outings to your vehicle, the ICOM IC-7000s have everything any ham needs or wants in a compact, (go where you go package)!
Features:
DSP controlled and adjustable AGC
2-point adjustable width manual notch filters
Digital noise reduction and noise blanker
Digital voice recorder (DVR)
Preamp and attenuator
Built-in RTTY demodulator
CW full break-in, receive reverse, and pitch-adjustable
1 Hz tuning, variable step tuning, and channel or memory tuning
Duplex mode and auto repeater function
Built-in tone squelch for FM mode
DTMF monitor
Specifications:
Output Power:
HF- 6 m / 2 m / 70 cm
AM: 1-40 W 1-40 W 2-20 W 2-14 W
FM: 2-100 W 2-100 W 2-50 W 2-35 W
SSB (PEP): 2-100 W 2-100 W 2-50 W 2-35 W
CW/RTTY: 2-100 W 2-100 W 2-50 W 2-35 W
Frequency coverage: Receive 30 kHz–199.999999 MHz*1*2 400–470.000000 MHz*1*2
Transmit 1.800–1.999999 MHz*2, 3.500–3.999999 MHz*25.33050*3, 5.34650*3, 5.35700*3, 5.37150*3, 5.40350*3,7.000–7.300 MHz*2, 10.100–10.150 MHz*2,14.000–14.350 MHz*2, 18.068–18.168 MHz*2,21.000–21.450 MHz*2, 24.890–24.990 MHz*2,28.000–29.700 MHz*2, 50.000–54.000 MHz*2,144.000–146.000 MHz*2, 430.000–440.000 MHz*2
Mode: SSB, CW, RTTY, AM, FM, WFM(WFM is for receive only)

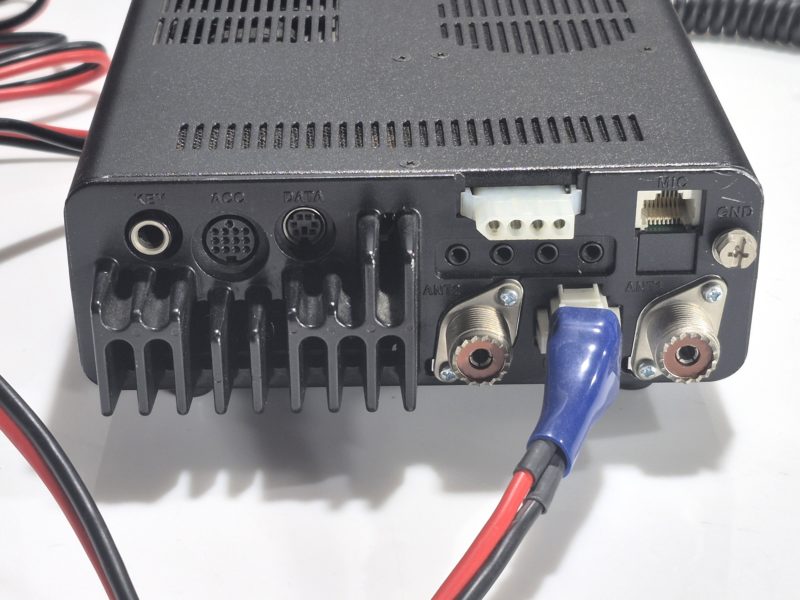

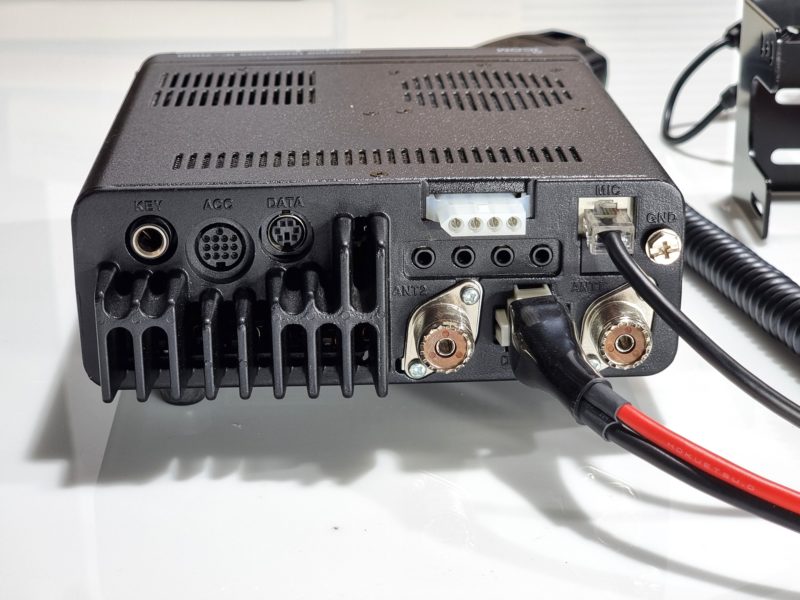

Antenna connector: SO-239×2 (for HF/50 MHz and 144/430 MHz)/50 Ω
Number of memory CH: 503 (split memory: 99×5 banks; scan edges: 6; call channel: 2 ) channels
Dimensions: 167(W) × 58(H) × 180(D) mm, (projections not included) 69⁄16(W) × 29⁄32(H) × 73⁄32(D) in
Weight (approx.): 2.3 kg (5 lb 1 oz)
CI-V connector: 2-conductor 3.5 (d) mm (1⁄8˝)

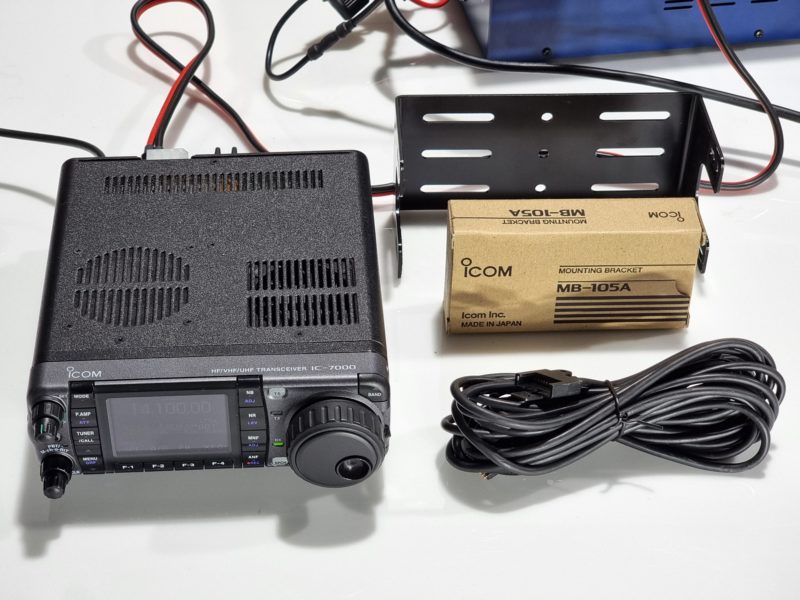

Accessories:
AH-2B
AH-4
AT-180
CT-17
HM-151
MB-62
MB-65
MB-105
MB-106
OPC-589
OPC-598
OPC-599
OPC-742
OPC-1443
OPC-1444
OPC-1457
OPC-1457R
SM-20 Mobile antenna element for AH-4 (7-54 MHz)
HF/50 MHz automatic antenna tuner
HF/50 MHz automatic antenna tuner
CI-V level converter unit
Hand microphone
Mobile mounting bracket
Control head mounting base
Mounting bracket
Carrying handle
Microphone adaptor cable, 8-pin modular to 8-pin round metal
ACC 13-pin cable for AT-180, 7 m
Adaptor cable, 13-pin to 7-pin + 8-pin ACC
ACC 13-pin cable, for using both AT-180 and 2 m linear amp
Separation cable, 3.5 m
Separation cable, 5 m
DC power cable
DC power cable with filter (European version)
Desktop microphone
