Diamond X-6000N Tri-Band Base Vertical Antenna

$379.00

Description

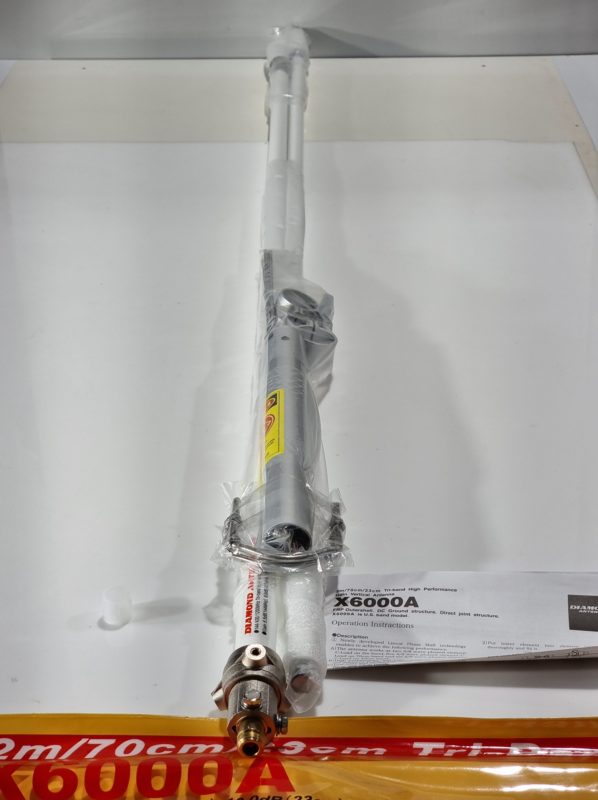

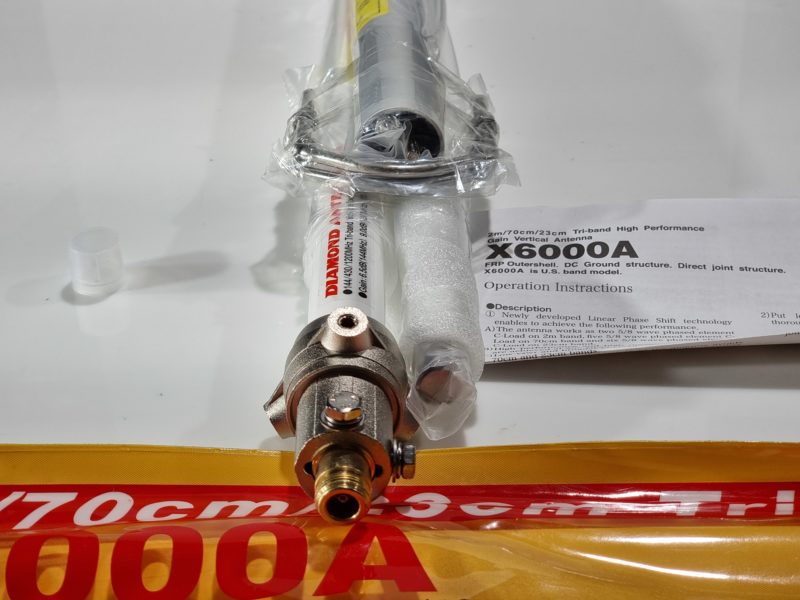

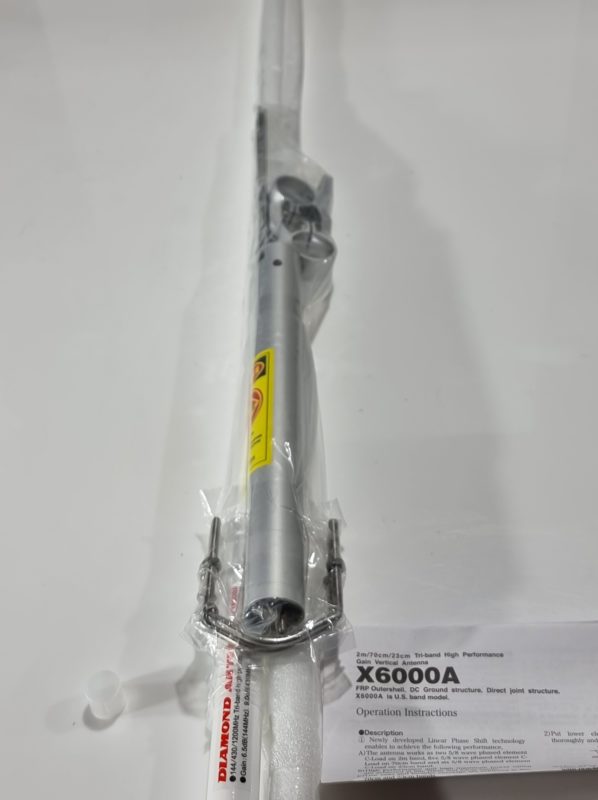

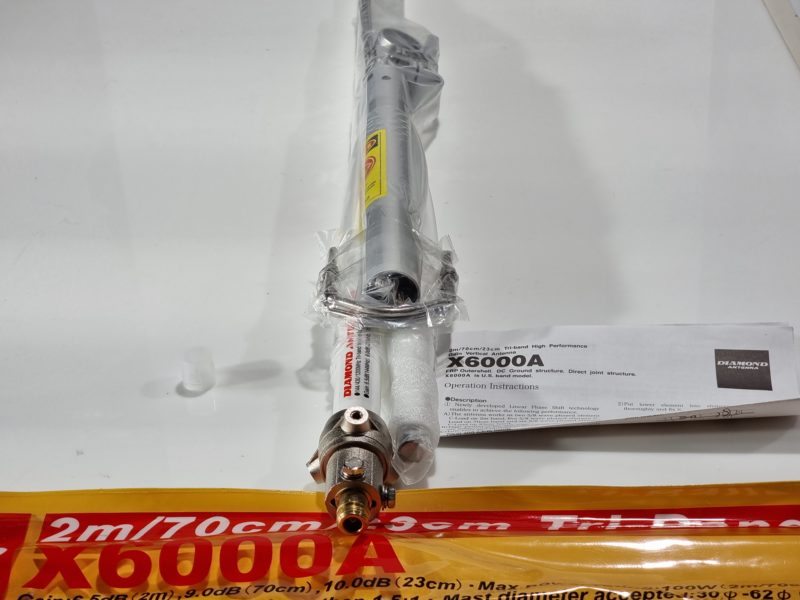

X-6000N: Tri-Band base antenna covers 2/70 and 23cm. Amateur activity on 1.2 GHz is constantly increasing, and adding 23 centimeters to antennas that encompass two such well established VHF/UHF bands makes good sense. The base is made of coated aluminum, the short radials are made of stainless steel. The connector jack is protected inside the base tube. All antennas include two solid mast clamps for easy mounting.

Specifications:
Frequency: 144/430/1200 MHz (2m/70cm/23cm).
Gain: 6.5dB (144MHz), 9.0dB (430MHz), 10.0dB (1200MHz).
Power rating: 100W (144/430MHz), 60W (1200MHz).
Impedance: 50 Ohms.
VSWR: Less than 1.5:1.
Length: 3.05m.
Radial length: approx.52cm.
Weight: 1.8kg
Rated wind velocity: 50m/sec.
Mast diameter accepted: 30mm to 62mm.
Connector: N
Type: 2 x 5/8wave C-Load(144MHz),5 x 5/8wave C-Load(430MHz),6 x 5/8wave C-Load(1200MHz),FRP outer shell.
