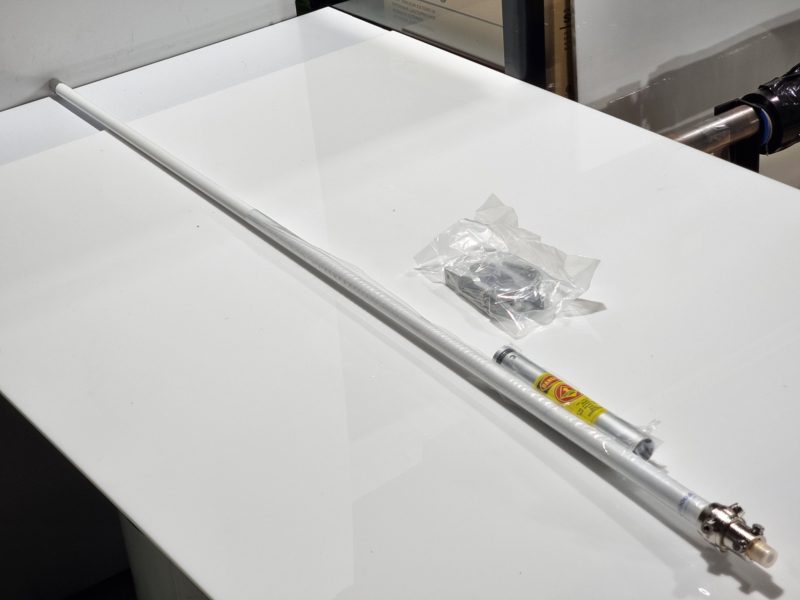

Diamond X-5000N Tri-Band Base Vertical Antenna

$289.00

Description

X-5000N: Almost every radio amateur has such an “X” on the roof – the Diamond omnidirectional VHF/UHF antenna. Perfect for the local club call channel, the next repeater or the APRS station. They are available for 2m and 70cm, some models also for 23cm and 6m. The Diamond antennas have a robust construction and will last for many years without any problems. The base is made of anodized cast aluminum, the outer tube of UV-resistant plastic (FRP, Fibre Reinforced Plastic). The internal, protected radiator is made of thick brass or copper-bronze. This makes the antennas durable even in rough conditions, they can be used up to wind speeds of 144 km/h or more. Whether you are a seasoned ham radio operator or just starting, the Diamond X-5000 is a reliable choice for your communication needs.

Specifications:
Frequency bands: 2m/70cm/23cm (145/433/1200MHz)
Gain: 4.5dB (144MHz), 8.3dB (430MHz), 11.7dB (1200MHz)
Max. power rating: 100W (total)
Impedance: 50 Ohms
VSWR: Less than 1.5:1
Length: 1.8m
Radial length: approx.19cm
Weight: 0.9kg
Rated wind velocity: 60m/sec.
Mast diameter accepted: 30mm to 62mm
Connector: N series female
Type: 6/8 wave C-Load (144MHz), 3 x 5/8 wave C-Load (430MHz), 7 x 5/8 wave C-Load (1200MHz), FRP ouetshell
Sections – 1
Wind velocity: 60m/sec
