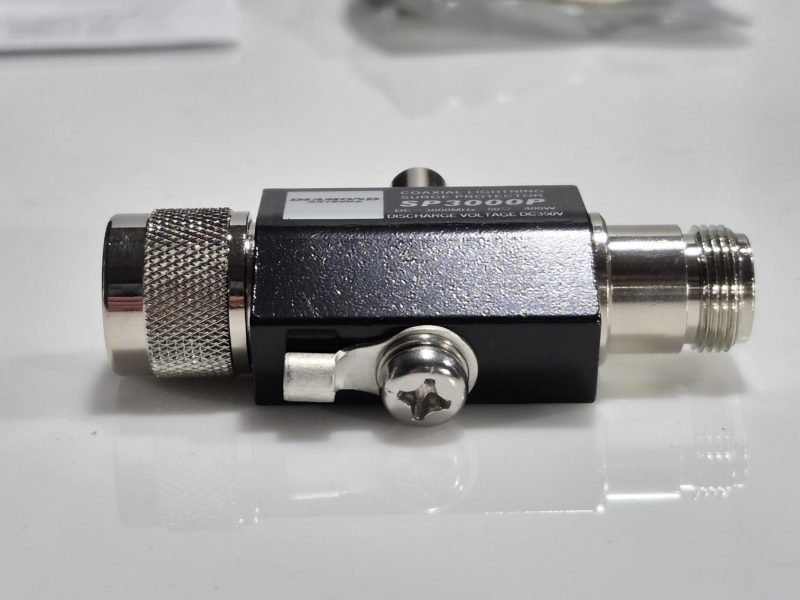

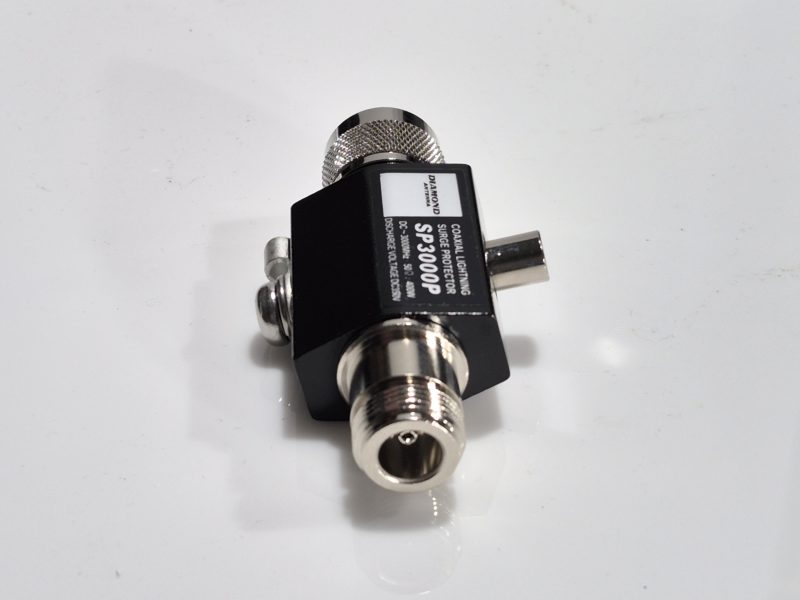

Diamond SP3000P Lightning Arrester



SP3000P: Surge arrester operates for frequencies from DC to 3000 MHz and for a maximum transmission power of 400W, it is equipped with an N plug connector and offers a low insertion loss of -0.3 dB.
This equipment provides protection for the radio equipment in the event of a nearby lightning strike , but not in the event of a direct lightning strike on the antenna, in this case it is necessary to install a lightning rod above the level of the lightning. ‘antenna.
The SP3000P must be grounded , by the shortest route, for safe operation. A stainless screw (M4) is available to connect a cable to earth.
It is recommended to place a surge arrester both at the level of the antenna, as well as at the level of the entry of the coaxial cable in the building.
The SP3000P is not waterproof and must be protected for outdoor use.
Do not share the earth line with other earth lines such as power lines. It is recommended to separate the earth line of the surge arrester from those of other systems
Frequency Range: DC – 3,000MHz
SWR: less than 1.2:1
Insertion Loss: less than 0.3dB
Max Power Rating: 400 Watts PEP
Connector: Type N female – Type N male
Impulse Wave Discharge Voltage: 1000v
Impulse Wave Discharge Capacity: 6000A
Impulse Wave Retention Discharge Capacity: DC350v ± 20%
Insulating Resistance DC100v: Over 10,000M Ohms
Weight: 110g
Dimensions: 77W x 41H x 21D mm
