Diamond SG-7100r 2/70cm Mobile Antenna

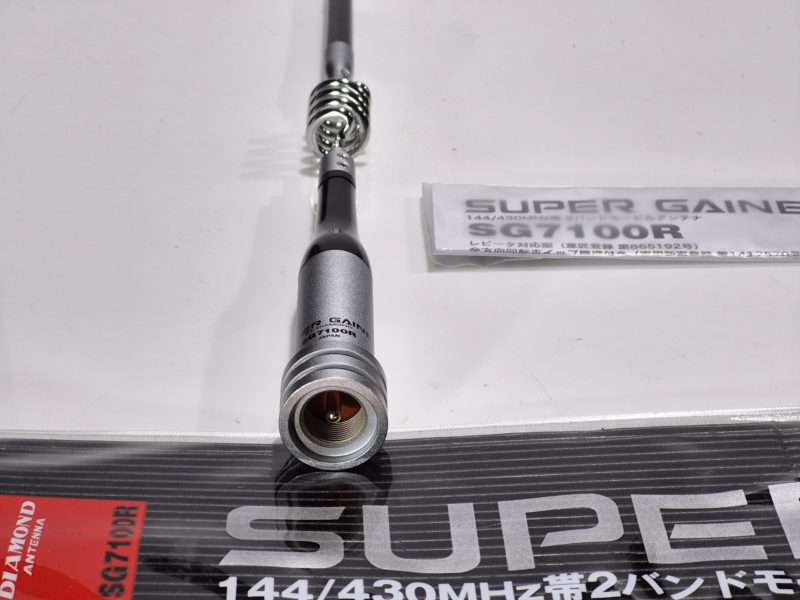

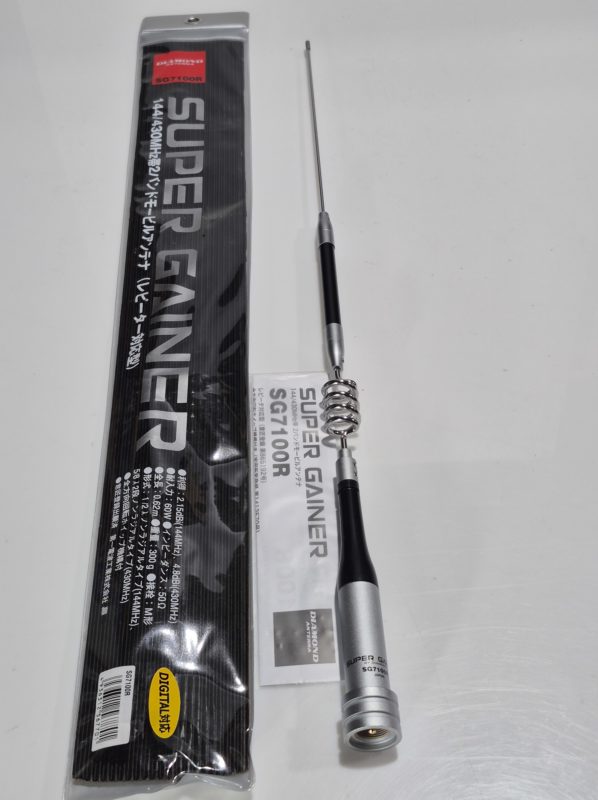

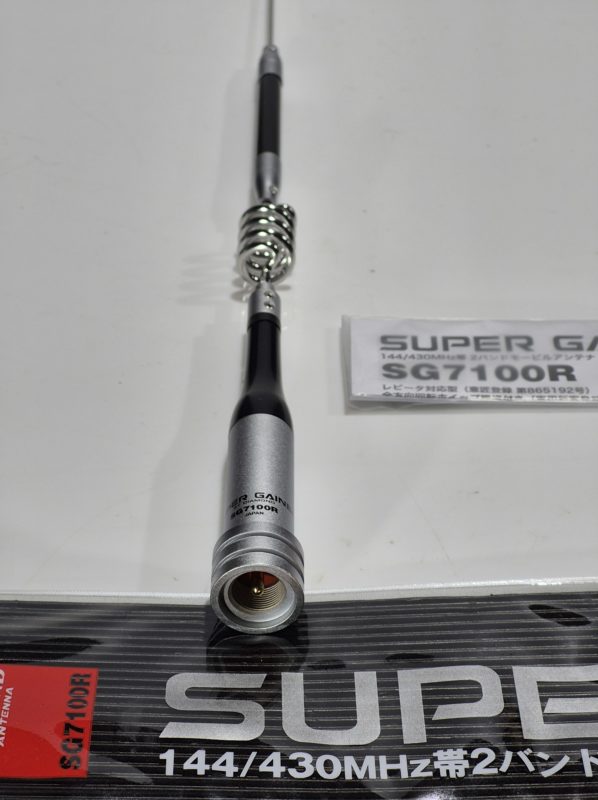

SG-7100r: The Diamond SG7100R is part of the Super Gainer series of car antennas. The SG-7100R Diamond antenna is made of two sections divided by a capacitor, it works in the range of amateur radio bands 2m and 70cm. The radiator is made of durable material and the length of the entire antenna is 62cm. The antenna is equipped with an M connector and fits on the holders / magnetic bases with SO239 connector. The radiator is mounted on an air coil, which also gives flexibility with high air resistance while driving. The antenna is also equipped with a FOS system.

Frequency: 144/430 MHz (2m/70cm)
Gain: 2.15dBi (144MHz), 4.8dBi (430MHz)
Max. power rating: 60W
Impedance: 50 Ohms
VSWR: Less than 1.5:1
Length: 0.62m
Weight: 300g
Connector: PL-259 Plug
Antenna Design: 1/2 wave radial less (144MHz), 2 x 5/8wave radial less (430MHz).
