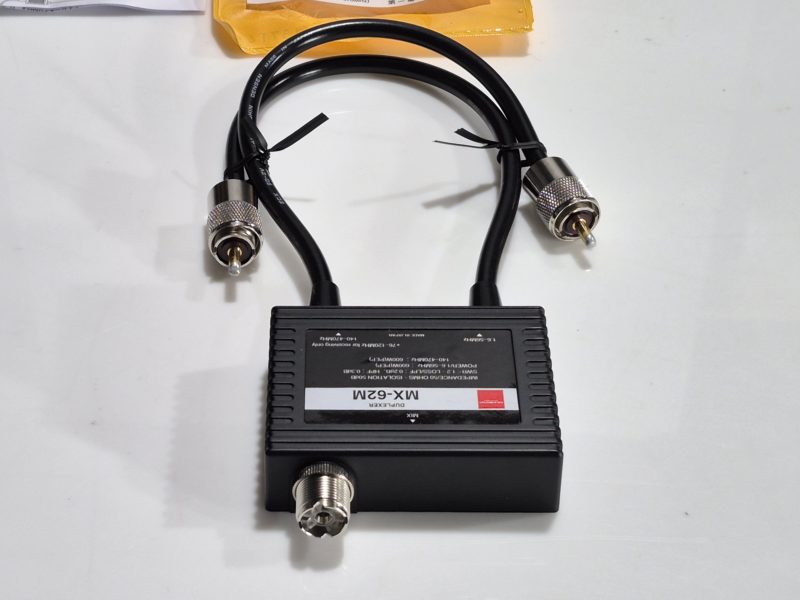

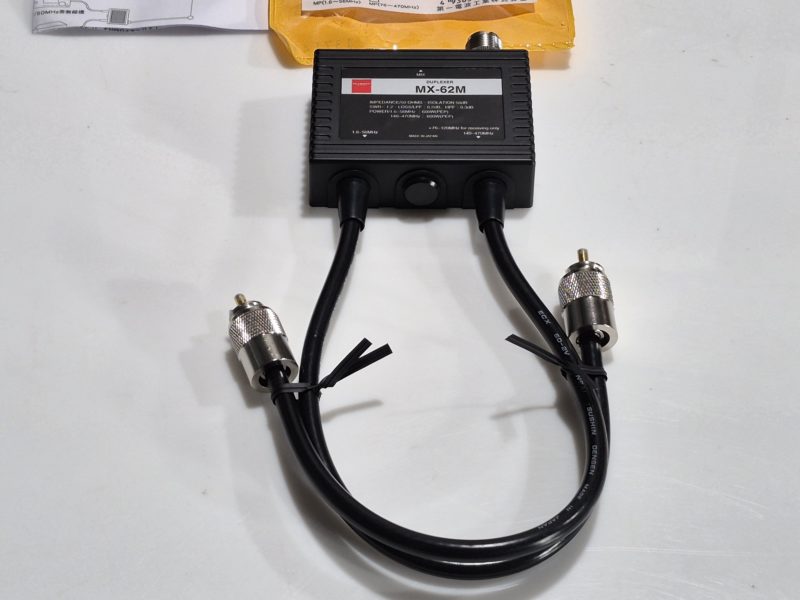

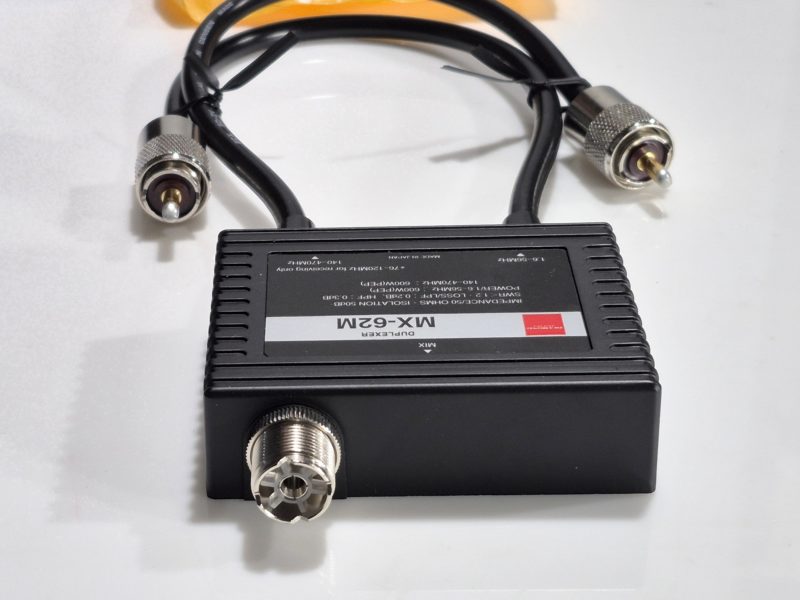

Diamond MX-62M Antenna Duplexer

$145.00

Description

MX-62M: Diamond Antenna Duplexers are just what you need when splitting HF, VHF, or UHF signals. These duplexers may be used for combining two transceivers into one coax feed line. They are ideal for connecting HF/VHF radios, such ICOM IC-706 and IC-7000 series, and Yaesu FT-857 series, with two antenna ports, to a single feedline multi-band antenna, like the Diamond V7A. Diamond Antenna Duplexers eliminate the need to use an antenna switch and are made with a high-quality aluminum case with a black finish.

Specifications:
Frequency: HF 1.6-56MHz / VHF / UHF: 76-470MHz (receiving from 76 to 120MHz only)
Power: 600W (PEP)
Insertion loss: 1.6-56 MHz Less than 0.2 dB
Insertion loss: 140-150MHz Less than 0.3dB
Impedance: 50 Ohms / VSWR: Less than 1.2
Isolation: More than 50dB
Connector: Mix: SO-239 (Female UHF)
1.6-56 MHz: PL259 (UHF Male)
76-470 MHz: Male N plug on the MX62N or PL-259 version (UHF male) on the MX62M version
Coaxial cable: 5D-2V 35cm
Dimensions: 86x25x64mm
Weight: 360g
