Description

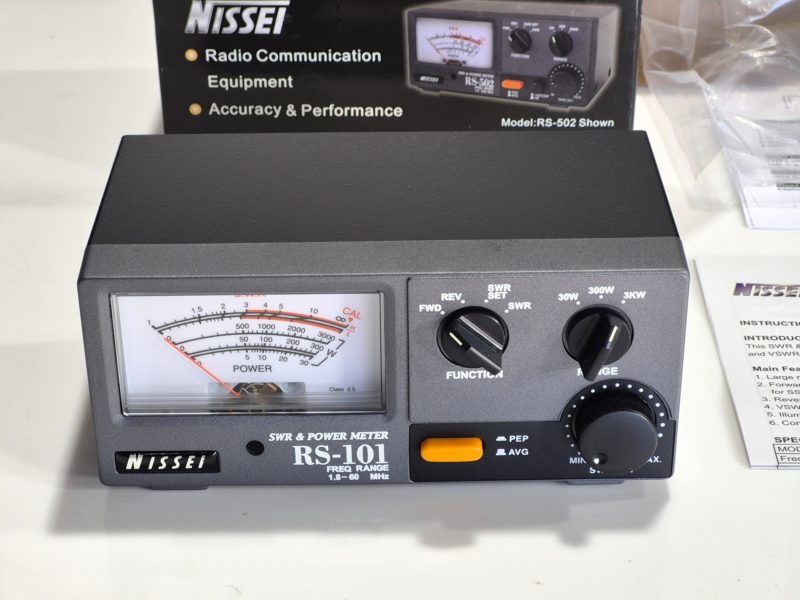

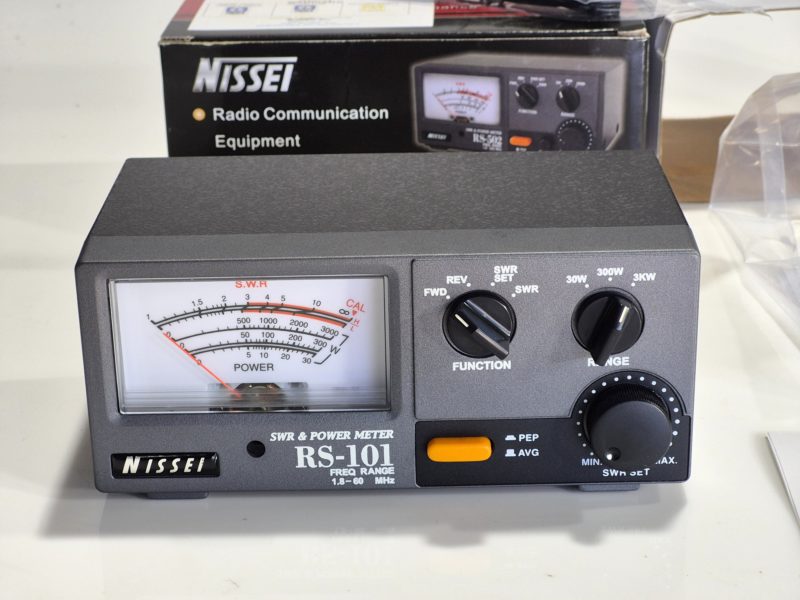

RS-101: Is a robust SWR and power meter with a large illuminated meter, highly accurate RF meter. Covers the HF band from 1.6 – 60 MHz, so it will cover CB, 10 meter, 12 meter, and even 6 meter.
The RS Series Wattmeter’s for measuring direct power (AVG), PEP in SSB, and reflected SWR display,
They have an accuracy of 5% (10% at 5W resolution – RS-101 10%). Large meter display for ease of reading.
Specifications:
Frequency range: 1.6 – 60 MHz
SWR Sensitivity: Minimum 1 Watt
Power Range: 30 Watts / 300 Watts / 3000 Watts
Maximum Power Rating: 3000 Watts
Measurement functions: Forward Power, Reversed Power, VSWR

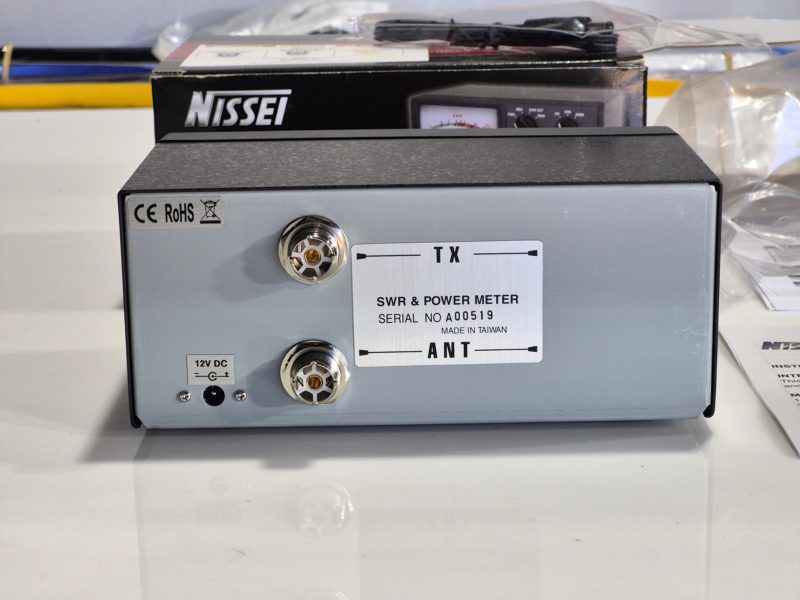

Connectors: UHF-Female (SO-239)
Dimensions: 190 x 85 x 135mm
Weight: 780 g
