Description

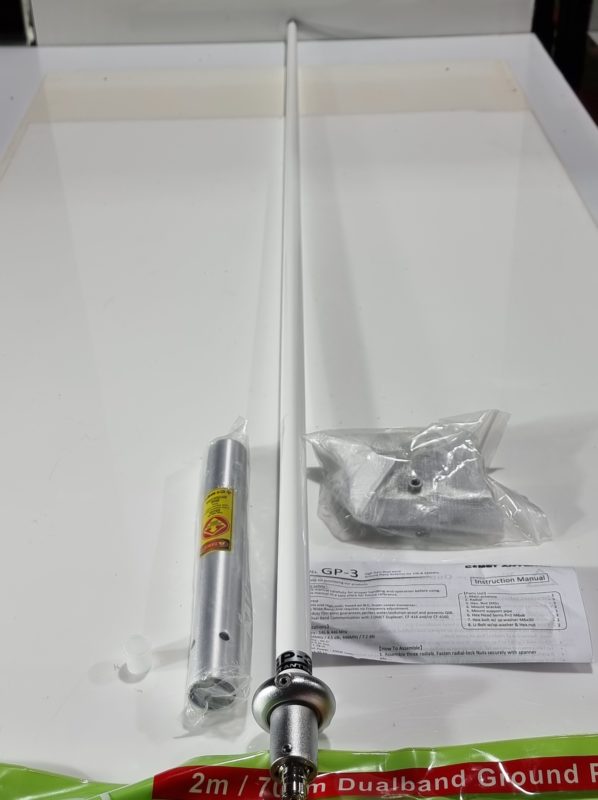

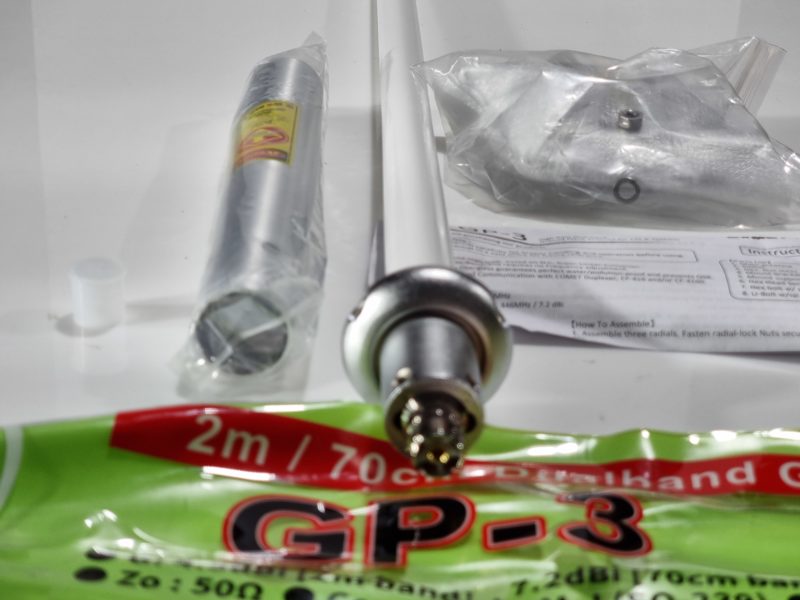

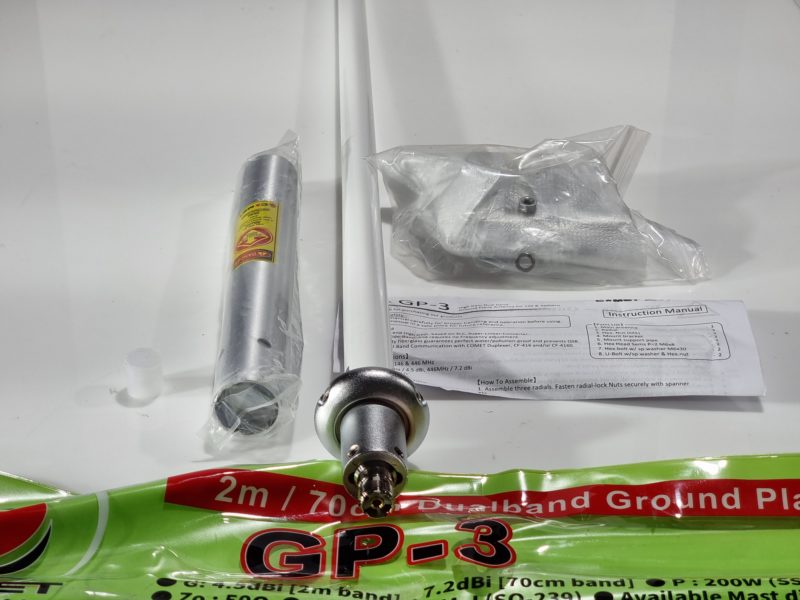

GP-3: A combination of special power feeding and phasing coil, ensures highest gain figures for this compact base antenna. The one piece fiberglass construction assures long durability, and full resistance to water etc. Completely factory tuned and no adjustment is necessary. It performs best in low to mid elevation installations where the high gain radiation pattern is most effective.
Specifications:
Frequency coverage: 146/446 MHz
Gain: 4.5/7.2dB
Impedance: 50 Ohms
VSWR: less than 1:1.5
Maximum power: 200 Watts
Length: 1.78m
Connector: SO239 M Type
Mounting to Mast Size: 1 1⁄4 – 2 1⁄2″
Construction: Heavy duty fiberglass
