Description

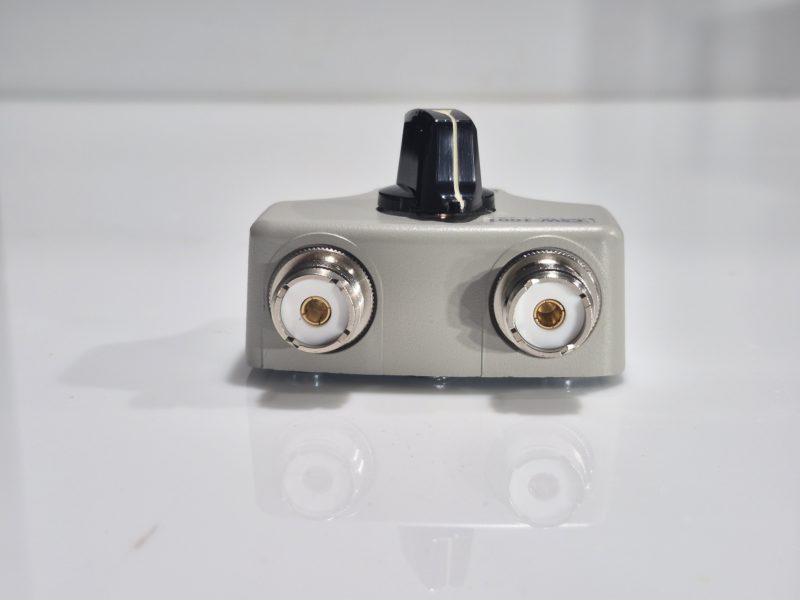

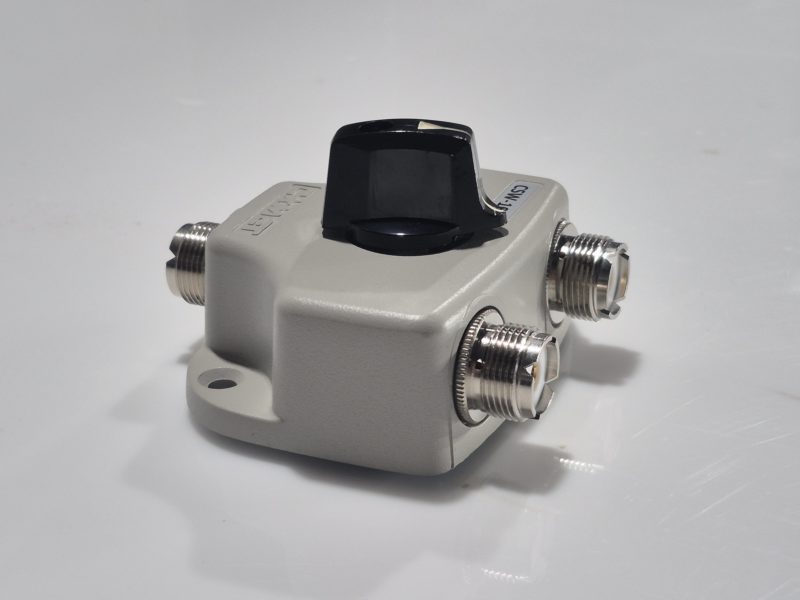

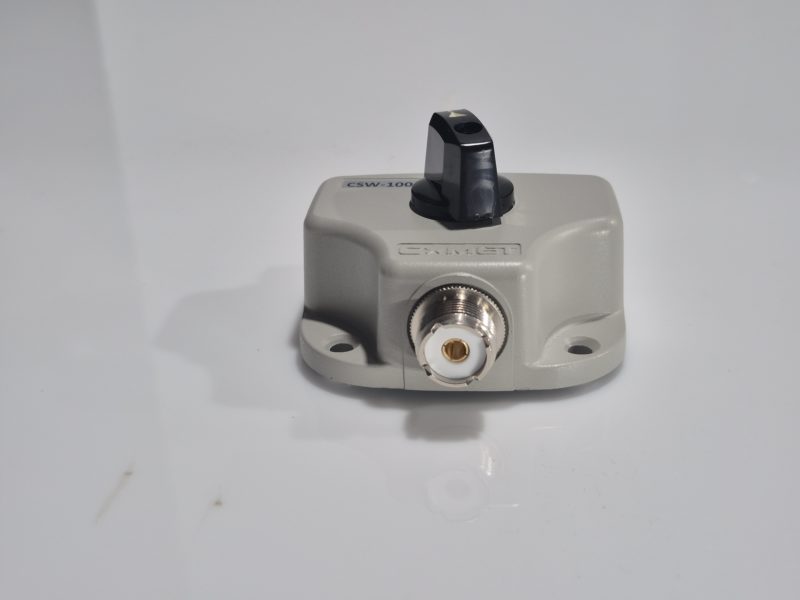

CSW-100: The COMET CSW-100 is a heavy duty antenna switch with gold plated PL-standard connectors and two antenna inputs. Suitable for frequencies from 0 to 500 MHz and a maximum power handling of 1500 watts. Features a heavy duty metal construction and low insertion loss.
NOTE: The switch can also be “reversed”, meaning that 2 radios can be operated on one antenna.
Features:
The core wire of the connector is gold plated to reduce contact resistance
High quality coaxial switch up to 500 MHz
Simple lightning protection structure where the unselected plug side is short circuited
Low pass loss
Good VSWR characteristics
High resistance to power and no heat development
Specifications:
Frequency Range: 0-500 MHz
Isolation: DC-170MHz: >60dB / 170-500MHz: >35dB
Insertion Loss: less than 0.2 dB to 600 MHz
Maximum power: DC-30MHz: 1500W (PEP); 30-170MHz: 1000W (PEP); 170-500MHz: 500W (PEP)
VSWR: Less than 1.2
Connections: MJ (SO-239)
Impedance: 50 Ohms
Dimensions 72 x 78 x 47 mm
Weight 430 g
