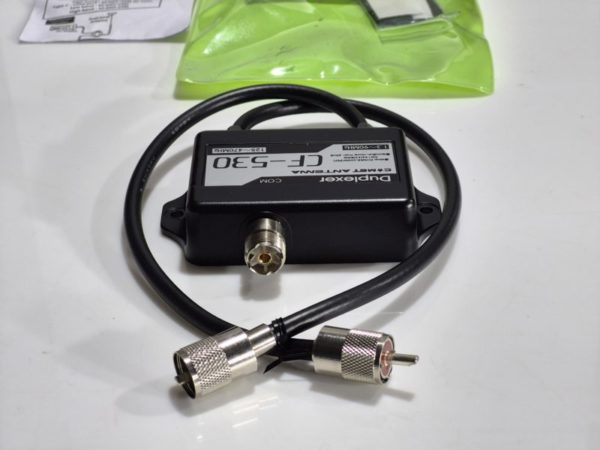

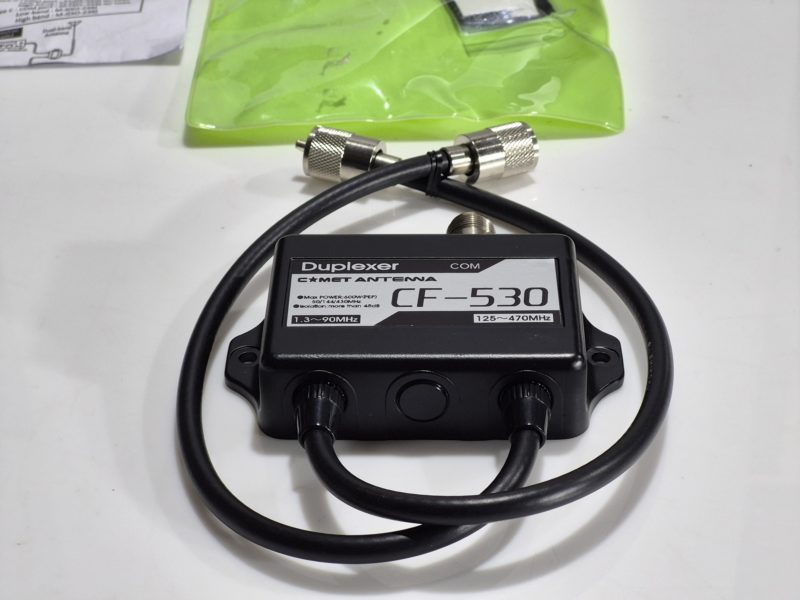

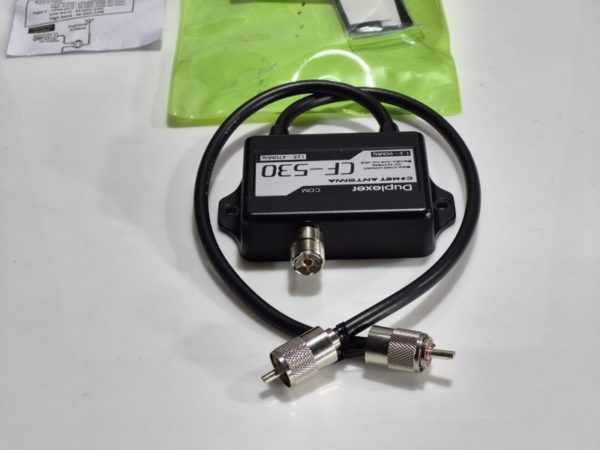

Comet CF-530A Antenna Duplexer



CF-530A: Duplexer for Transmitting and receiving both 50Mhz (or HF Bands) and 144 Mhz (or 430Mhz Band) at the same time.
Combined high quality filters for preventing TVI at the same time.
The isolation between the two connectors is more than 45dB, In the case of using the CF-530 for one frequency, the other connector can remain open, although an additional Dummy Load would be preferred.
Fitted with the popular combination of 2 x output leads with PL-259 plugs, and input of SO-239 socket.

Bandpass Frequency and Input Loss :
1.3 – 90Mhz / Less than 0.2db
125 – 470Mhz /Less than 0.3dB
Impedance : 50 Ohms
VSWR : Less than 1: 1.2
Weight 300g
Size 66w x 90d x 26h mm
Maximum Input Power :
1.3 – 90Mhz 600 Watts (PEP)
125 – 250Mhz 600 Watts (PEP)
300 – 470Mhz 600 Watts (PEP)
Connectors ( CF530) Input Socket SO239 Type
Output Leads with 2 x PL259 Fitted
