Description
CF-4160A: If you are in need of splitting off your HF, VHF, or UHF signals, then Comet Duplexers are what you are looking for. Sometimes referred to as combiners or splitters, these duplexers are basically band-pass filters, simultaneously passing RF in both directions through the common connector, while the band-pass filters provide a high degree of isolation between ports. Just imagine the utility of these devices for splitting or combining signals- and adding convenience and cost savings.
Features
TX and RX from two radios at the same time into a dual-band antenna.
Combine a dual-band radio with separate outputs into a dual-band antenna.
Separate a single connector duplexed radio into separate antenna systems.
Allow a single coax to run into two antennas at the top of the tower, and two radios at the bottom by using a duplexer at both ends of the coax run, avoiding additional coaxial cost and weight.
Specifications:

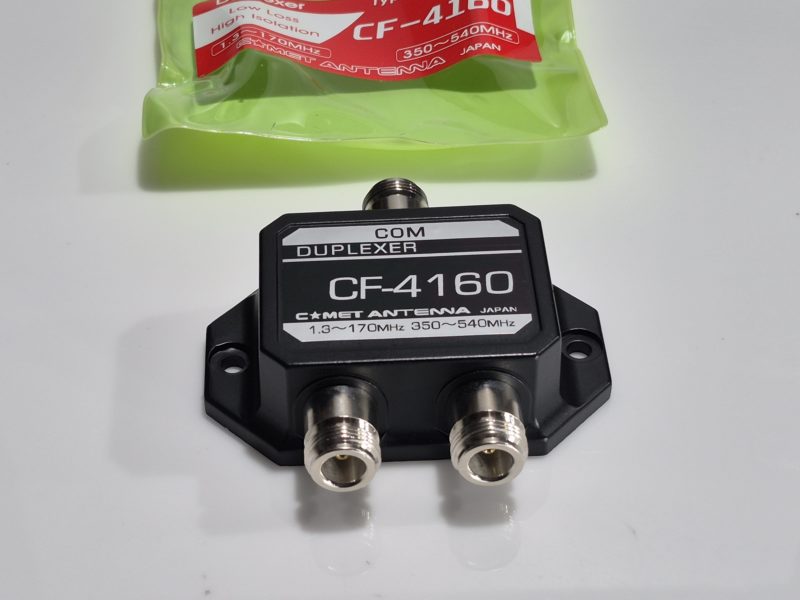

Band Pass Frequency and Input Loss: 1.3-170Mhz/Less than 0.15dB, 350-540Mhz/Less than 0.25dB
Maximum Input Power (PEP): 1.3-60Mhz 1000w, 100-170Mhz 800w, 350-540Mhz 500w
Impedance: 50 Ohms
VSWR : Less than 1:1.2

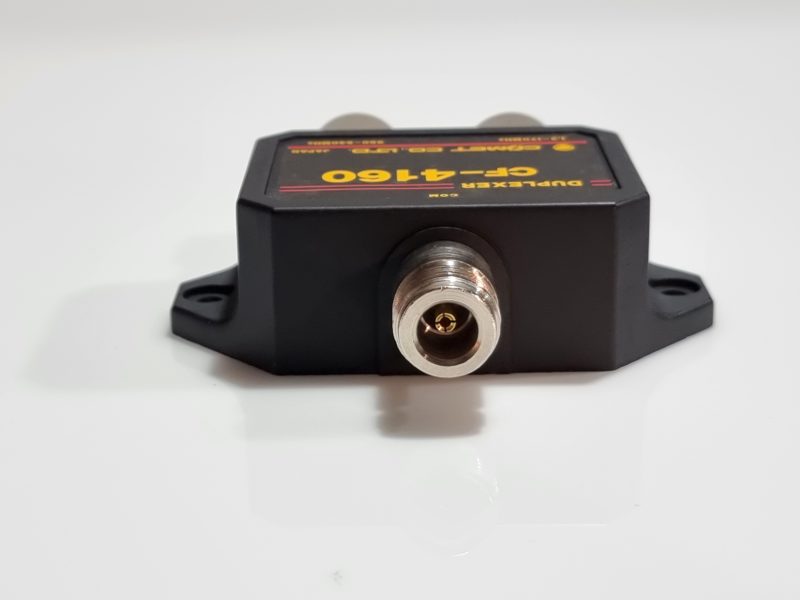

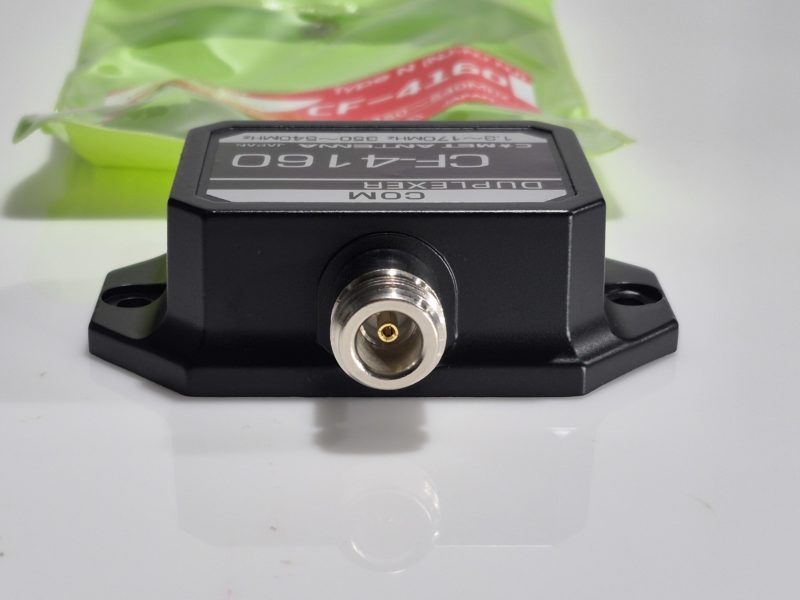

Input: N Type Plug

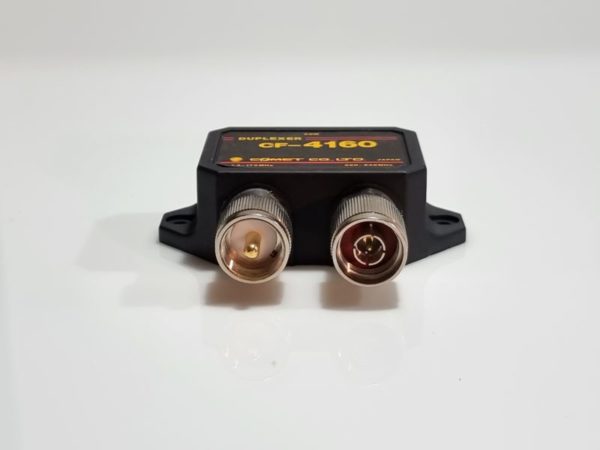

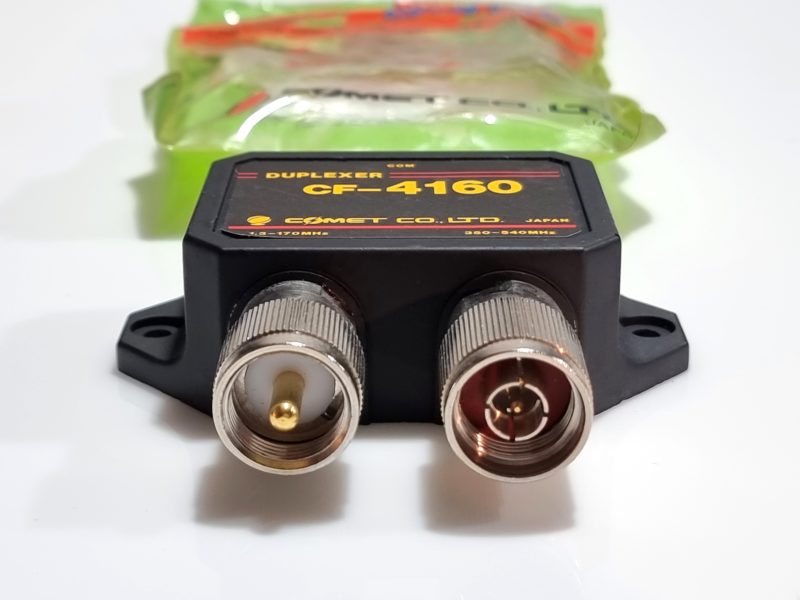

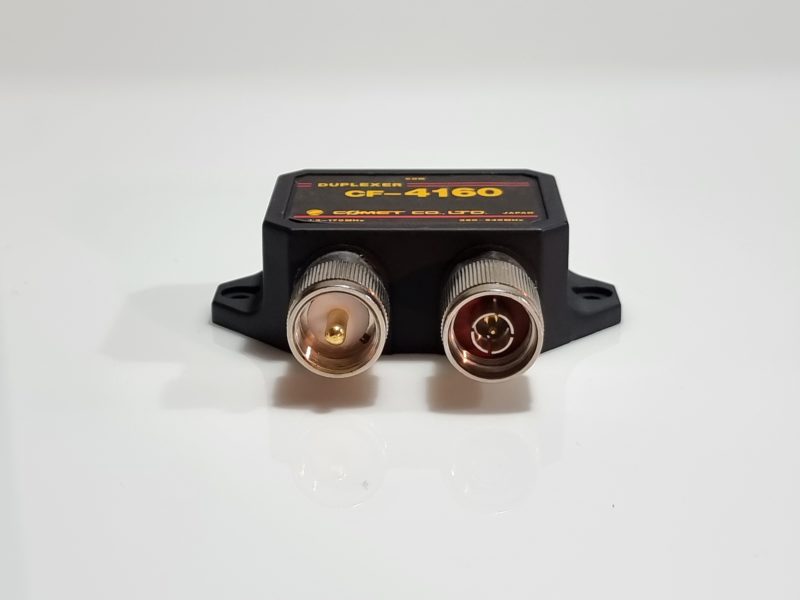

Output: 1 x N Type Plug (433Mhz)
Output: 1 x PL-259 Plug ( 1.3-170Mhz )
