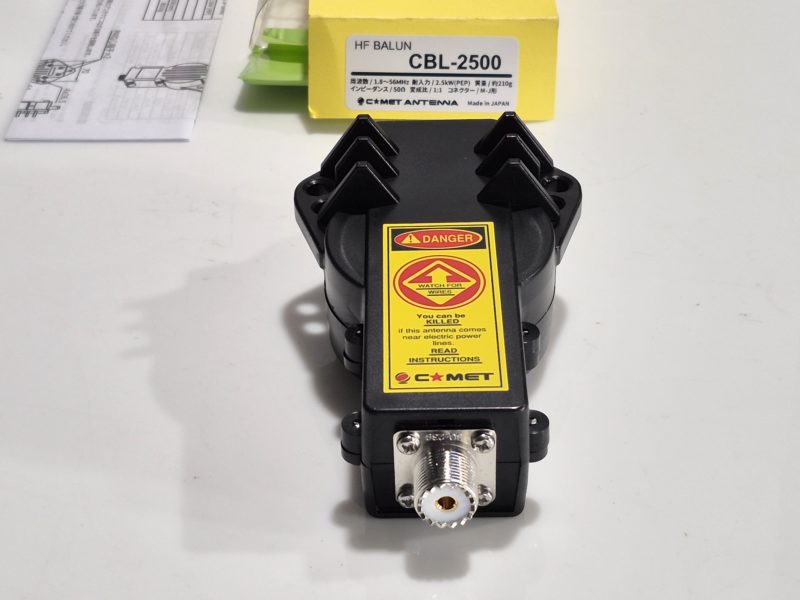

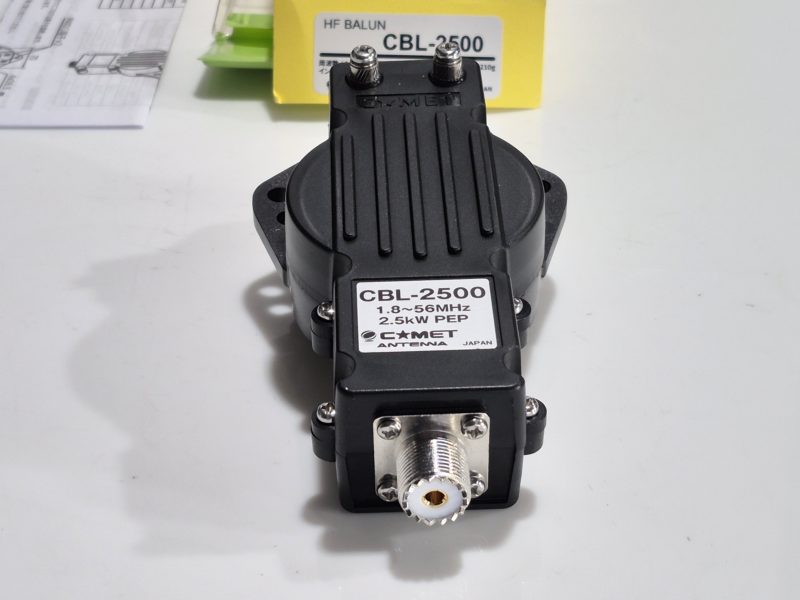

Comet CBL-2500 High Power Balun 2.5kW

$125.00

Description

CBL 2500: A new model in the Comet range, the CBL-2500 replaces the CBL-2000. Comet have beefed up the case on this range of high power baluns, the very tough and strong construction should give many years of service! The same high power rating as the old CBL-2000, the CBL-2500 is quoted at 2.5kW PEP, and the frequency range extends from HF to 6m, overall 1.8 – 56Mhz. The base connector is the ever popular SO239 socket.
USABLE FOR WIRE ANTENNAS, “V” ANTENNAS, BEAMS.
Specifications:
Comet CBL-2500 1:1 Balun
Frequency range: 1.8 – 56 MHz
Impedance 50 Ohm
Ratio: 1:1
Base connection: SO239 type socket
Power: 2.5 kW (PEP)
Dimensions: 86 x 54 x 158 mm (W x D x H)
Weight: 210 g
