Description

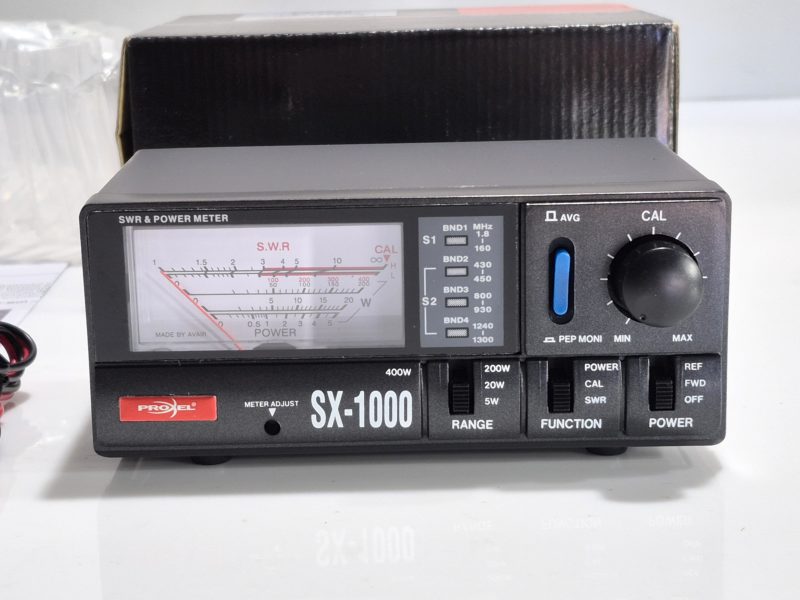

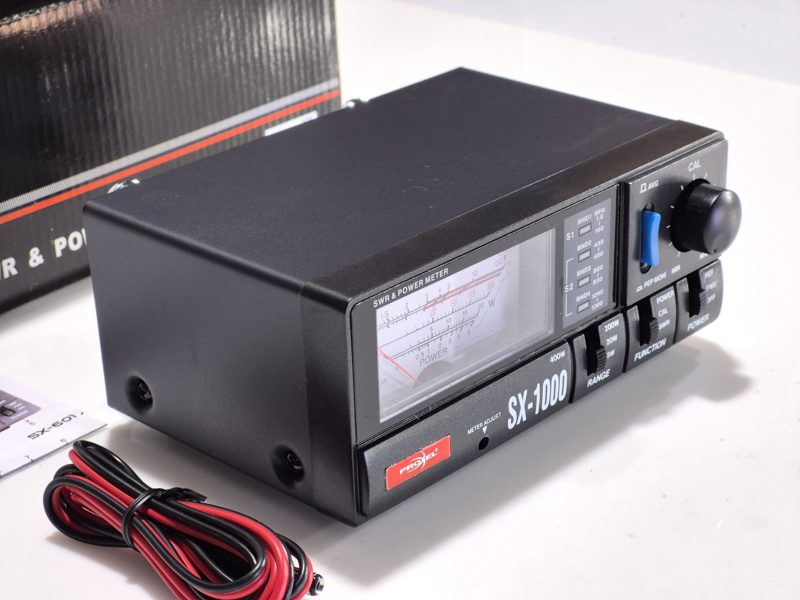

SX-1000: The SX-1000 is a portable instrument for measuring the standing wave coefficient (SWR) and the power of radio signals. It has two frequency ranges: 1.8 to 160 MHz and 430 to 1300 MHz. The measured power range is 5/20/200/400 W for the frequency range 1.8 to 160 MHz and 5/20/200 W for the frequency range 430 to 1300 MHz. The impedance is 50 Ohms and the connectors are UHF female and N female.
When choosing a UHF female or N female connector, you should consider the type of radio signal you want to transmit or receive and the application you will be using the connector for.
Specifications:
Frequency: Frequency range: 1.8-160MHz, 420-1300MHz
Impedance: 50 Ohm
Power range: 1.8 – 160: 5/20/200/400 W / 430 – 1300: 5/20/200 W
Power measurement range: 0.5~400W (5W/20W/200W/400W) 430~1,300 MHz (200W)
Minimum input power: 0.5W
Accuracy: 5W range ±5%, 20W range ±7.5%, 200W range ±10%, 400W range ±12.5
Input impedance: 50 Ohms
Input loss: 0.2db (1.8~160MHz), 0.3db (430-1300MHz)

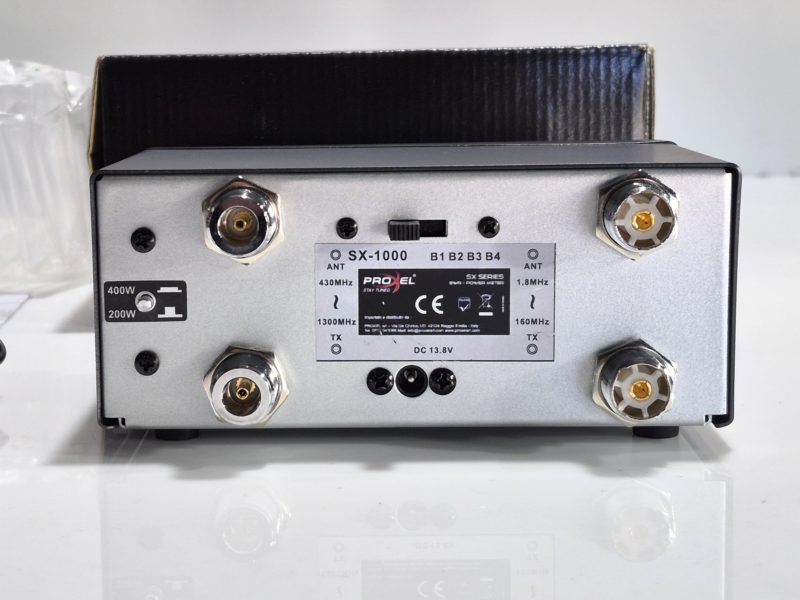

Connector: SO-239 (UHF female) and N female
TX-PL (1.8 -160 MHz)
TX-N (430 -1300 MHz)
Dimension: 15 X 6.5 X 10 cm
Weight: 730gr
SWR : 1 to infinity
Power supply : 12V DC
