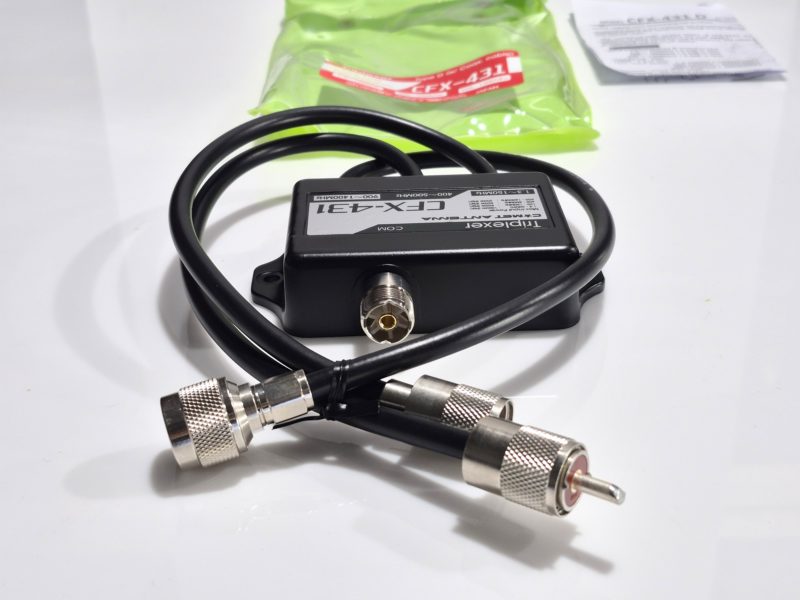

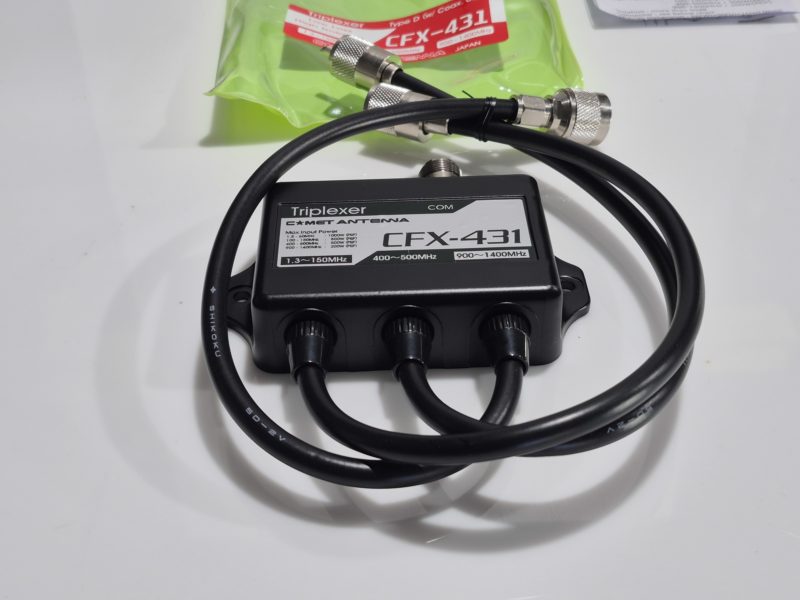

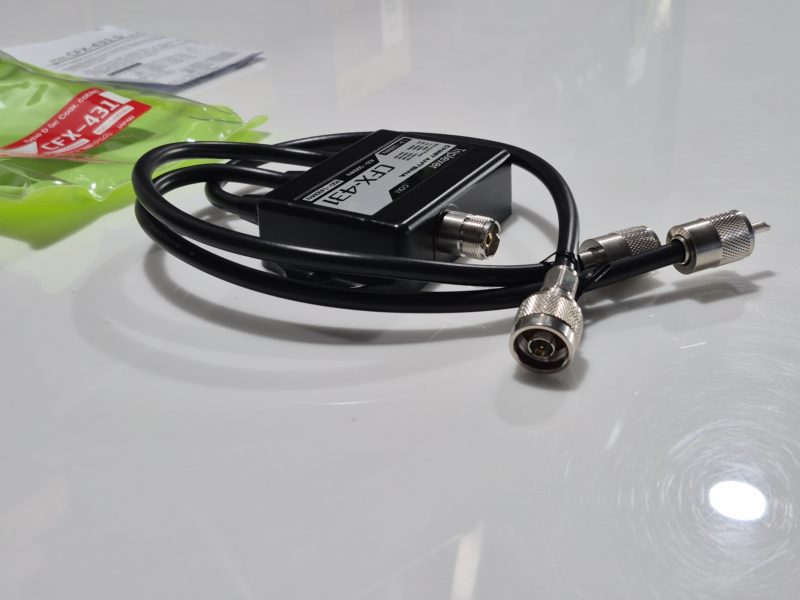

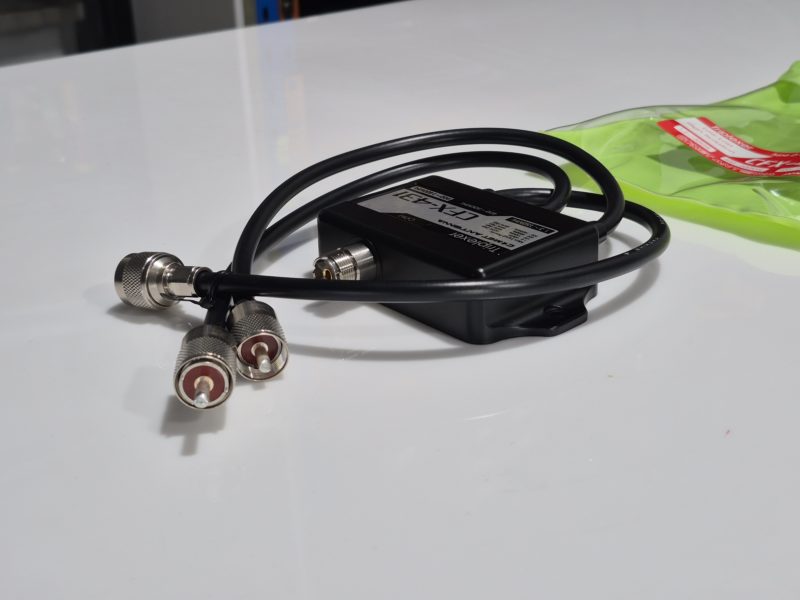

CFX-431D: The CFX-431D Triplexer is designed for simultaneous transmission and reception on 144 MHz (2m), 433 MHz (70cm) and 1200 MHz (23cm). Thanks to the advanced band-pass filters, TVI (television interference) is effectively reduced and the high isolation of more than 50 dB between the ports ensures interference free signal distribution. This triplexer is perfect for radio amateurs and professional applications where combining or splitting signals is required without loss of quality. With the Comet CFX-431D you can easily connect multiple transceivers and antennas with just one coaxial cable. The CFX-431D is ideal for users who, want to connect three different antennas to one receiver / transceiver and thus have frequency selective antennas preferentially switched through, you can enable this.
Specifications:
Frequency range: 144 /430 /1200 MHz
Insertion loss: 1.3~150MHz less than 0.2dB / 350~500MHz less than 0.3dB / 840~1400MHz less than 0.4 dB
Power peak: 1.3-60 MHz: 1000W (PEP) / 100-150 MHz: 800W (PEP) / 400-500 MHz: 500W (PEP) / 900-1400 MHz: 200W (PEP)
Isolation: > 50dB
Impedance: 50 Ohms
Connector: SO-239 (MJ) / PL-259 (MP) / PL-259 (MP) / Type N connector (NP)
VSWR: less than 1.2
