Description
NOTE: SOLD OUT ON BACK ORDER

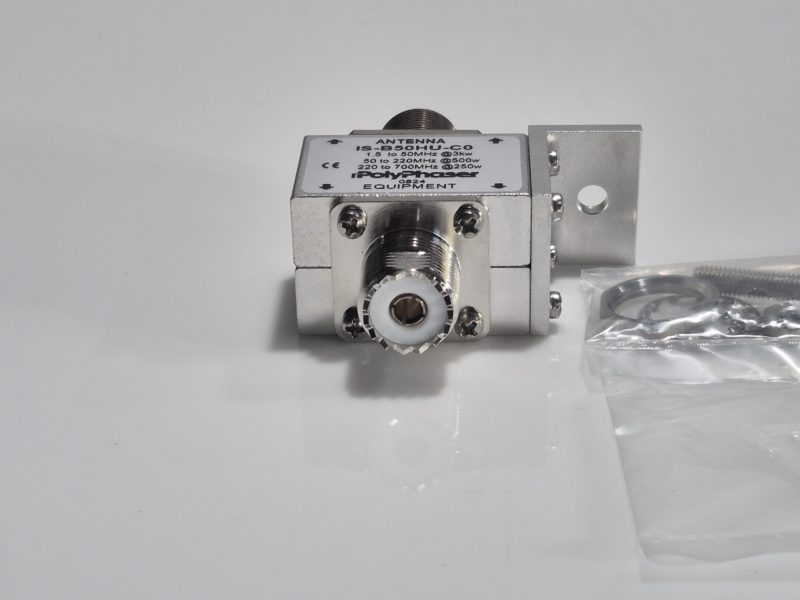

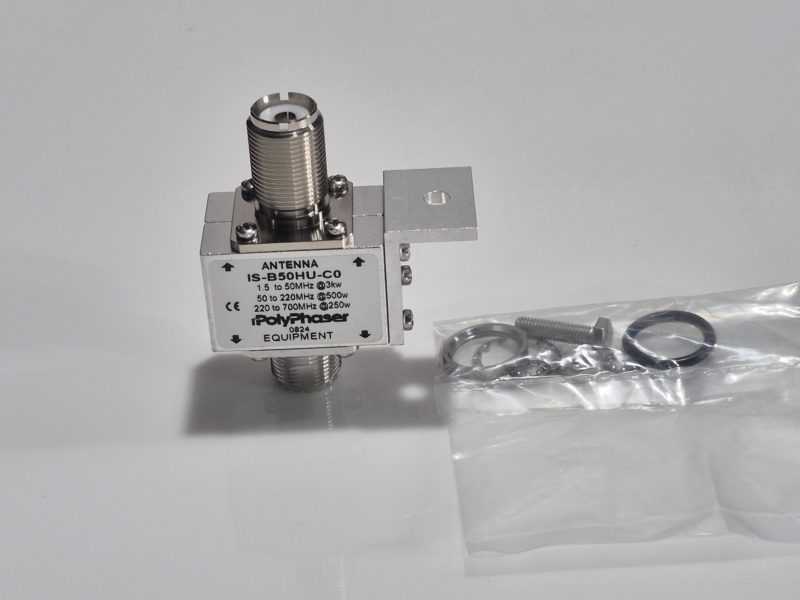

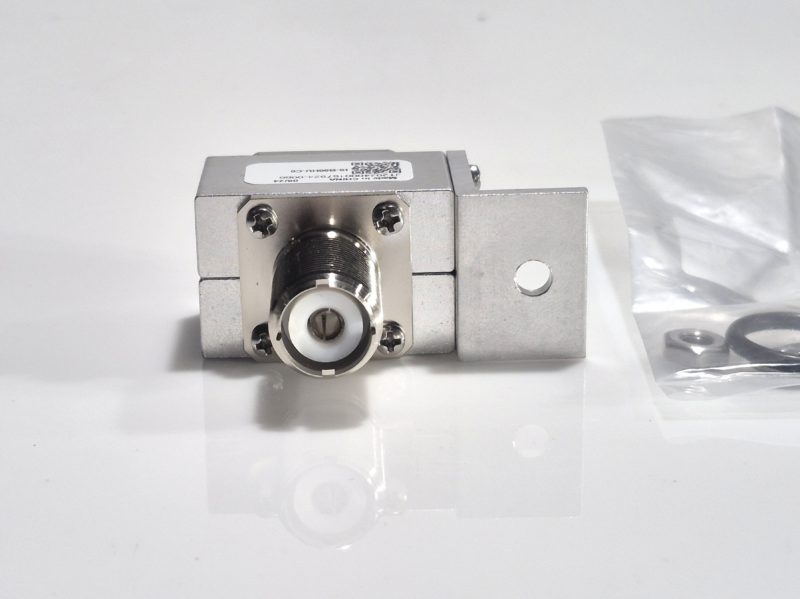

IS-B50HU-C0: The IS-B50 Series of DC block surge arrestors are designed to protect against lightning events and are ideal for HF, UHF and VHF radios. The IS-B50 family of RF protectors can be used for general radio use with frequency ranges between 1.5 MHz to 1000 MHz. The IS-B50 product family is based on Polyphaser’s market establishing surge protection technology. This engineered surge suppressor has been the cornerstone for ham radio operators, land mobile communications and remote industrial monitoring. The IS-B50 is approved by major OEMs for use in critical applications such as emergency response, SCADA and public safety communications. Our radio frequency coaxial surge protector product is commonly used for radio and antenna installations where part or all system equipment is outdoors to protect sensitive equipment and is designed to pass 1.5 MHz to 700 MHz while suppressing DC surge.
Features:
Broad frequency ranges from 1.5 MHz to 1000 MHz
Connectors: N-Type and UHF
High power versions capable to 3kW
Industry leading surge rating of 20kA
Nuclear EMP versions available with N-Type connectors
Flexible bulkhead and bracket mounting options
Specifications:
Frequency Range: 1.5-700 MHz
Mount Type: Bulkhead
Surge Side Connector: UHF Female
Protected Side Connector: UHF Female
RF Power: 3000W to 250W
Turn On Voltage: 600Vdc
Nominal Insertion Loss: 0.1 dB
Maximum Throughput Energy: 20 mJ
Weight: 0.24 lbs
