Description
X-510NJ: The Diamond antennas have a robust construction and will last for many years without any problems. The base is made of anodized cast aluminum, the outer tube of UV-resistant plastic (FRP, Fiber Reinforced Plastic). The internal, protected radiator is made of thick brass or copper bronze. This makes the antennas durable even in rough conditions, they can be used up to wind speeds of 144kmh or more. The mounting is done by a mounting pipe, which protects the coaxial socket against external influences. The mounting pipe is attached to a mast with two supplied clamps and U-bolts. Radials, screws and brackets are made of stainless steel, mounting pipe and clamps are made of aluminum.
Features:
Fiberglass radomes
Overlapping outer shells for added strength
Strong waterproof joint couplings
Stainless steel hardware
Wide band performance
Factory adjusted – no tuning required
Highest gain
High wind rating
DC grounded
Specifications:
Antenna type: 3 x 5/8 wave (144MHz) and 8 x 5/8 wave (430MHz)
Reinforced fiberglass antenna outer shell
Length: 5.2m
Radians length: 52cm
Gain: 8.3dBi (144MHz) and 11.7dBi (430MHz)
Maximum power: 200W
Impedance: 50 Ohms
VSWR: Less than 1.5: 1
Wind resistance: 144km/h
Diameter of the mat accepted: 30mm to 62mm

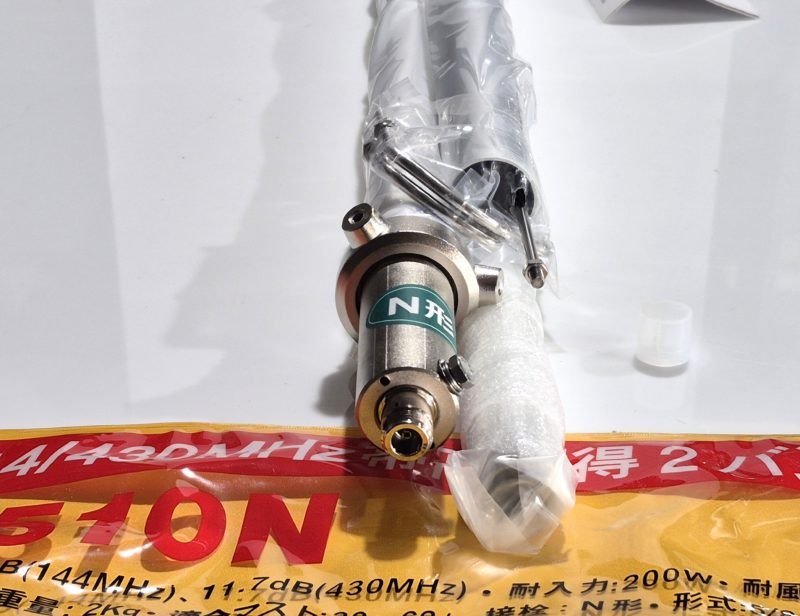

Connector: N female plug
Diamond X-510 N antenna guaranteed 100% genuine
Weight: 2kg
