Description

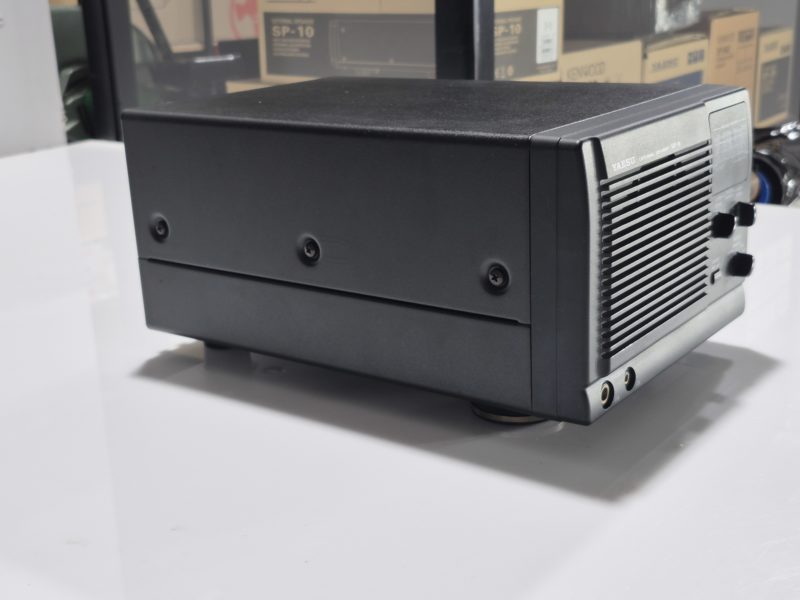

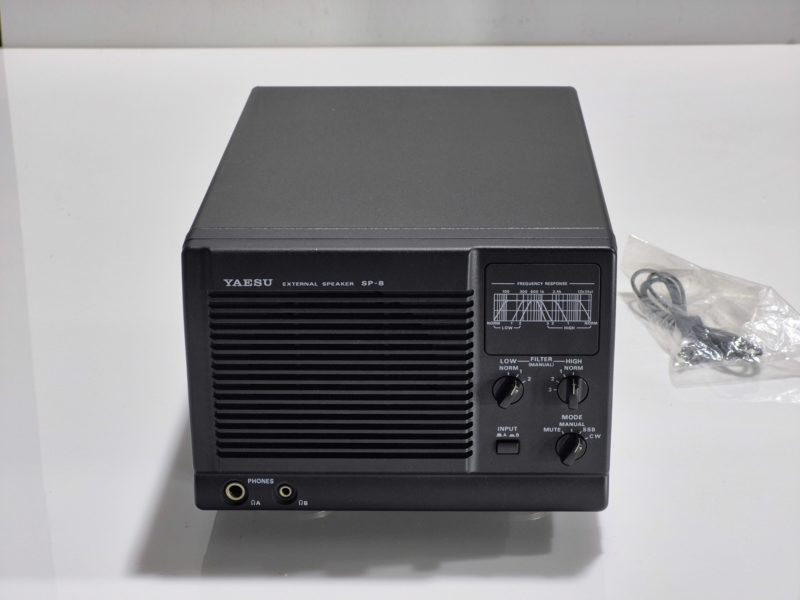

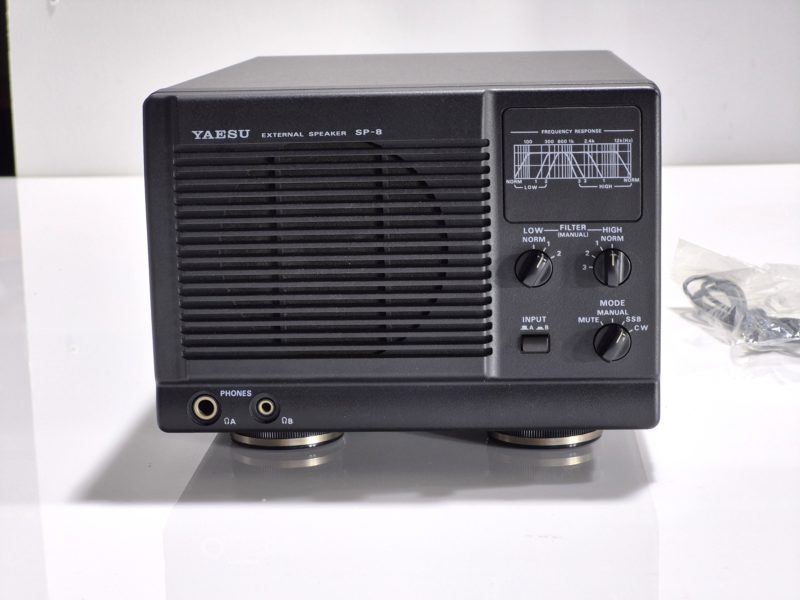

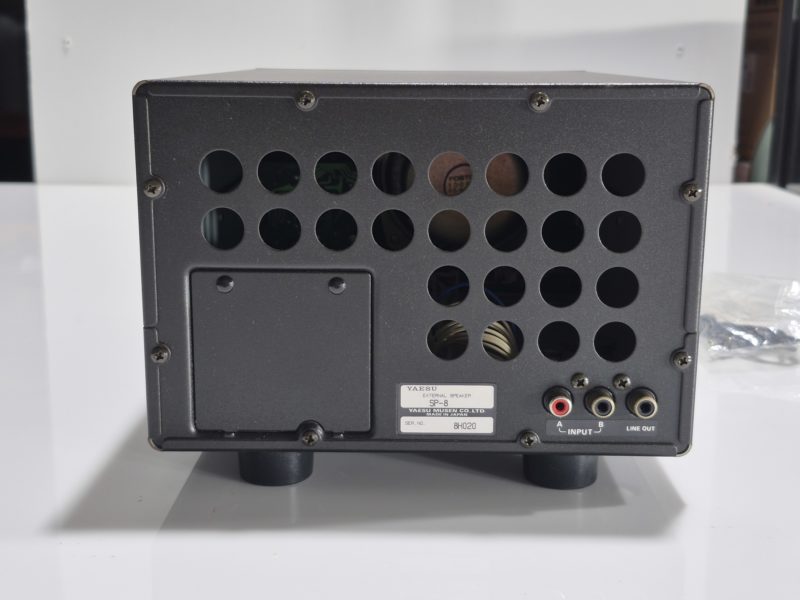

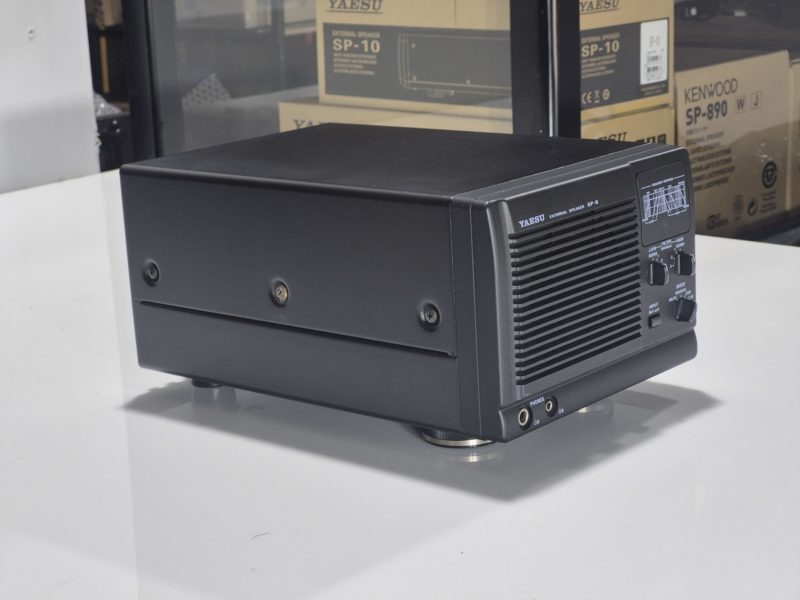

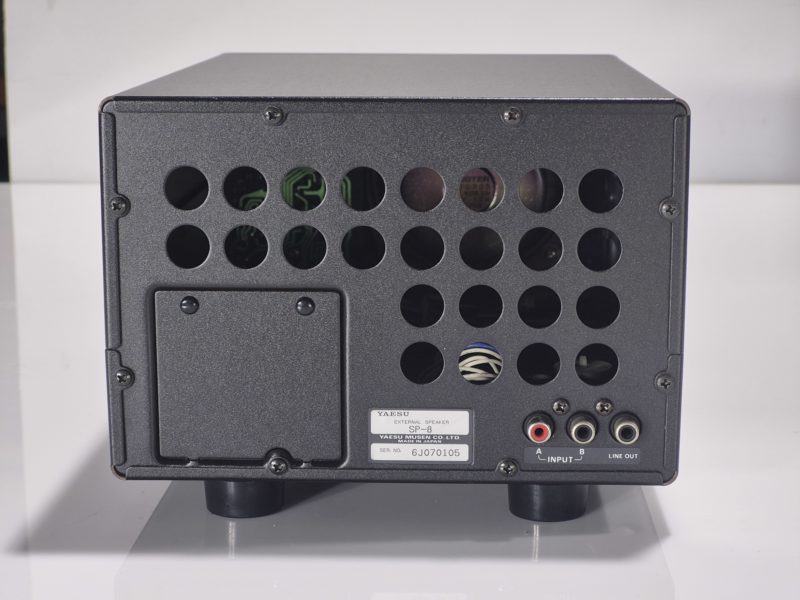

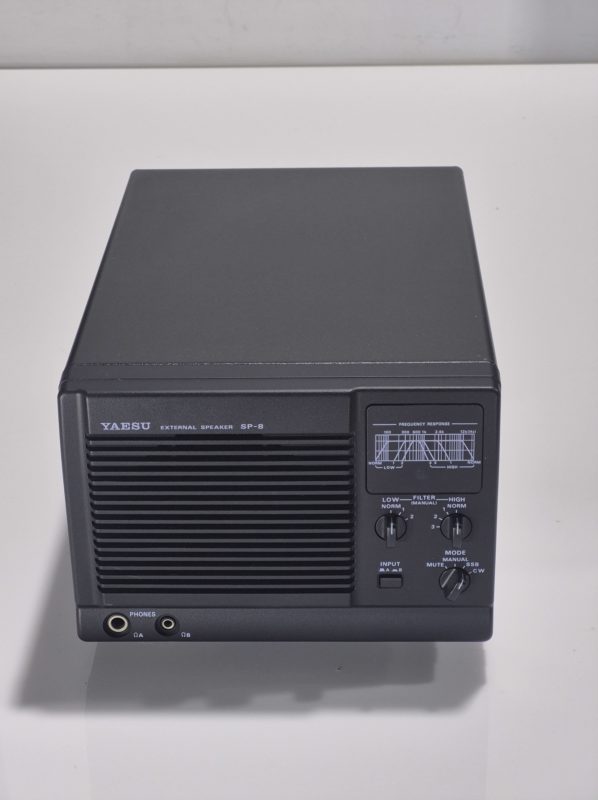

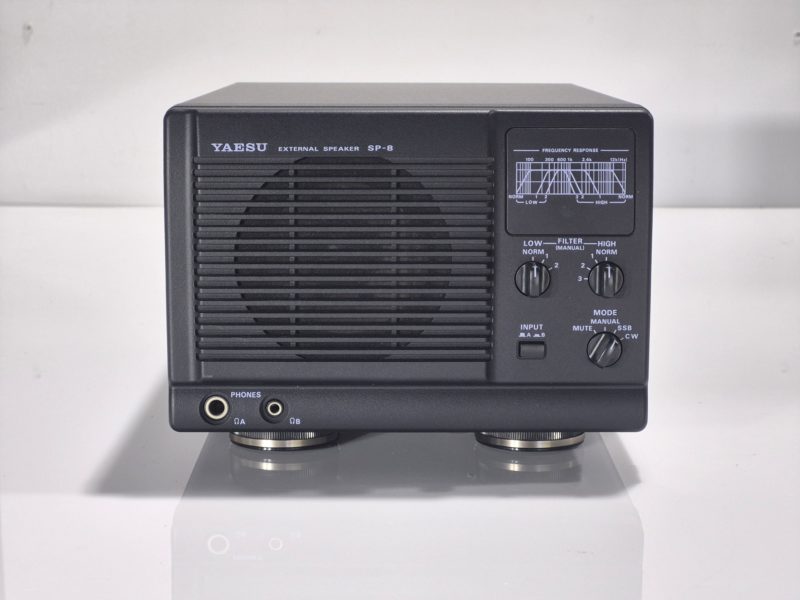

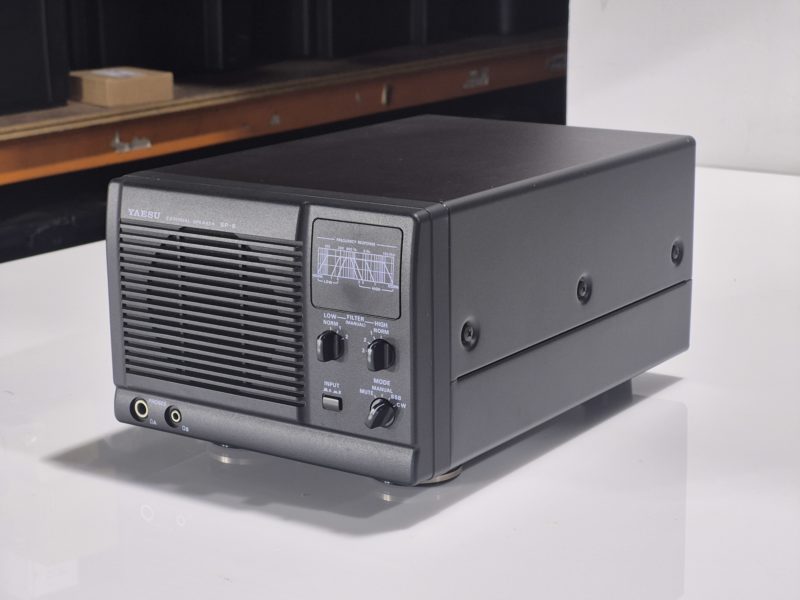

SP-8: The Yaesu SP-8 is a base speaker with audio filtering. It features both a 1/4 inch headphone jack and a 3.5 mini jack on the front panel. Input A or B or may be selected by a push button switch on the front panel. The panel also has a 4 position MODE switch: Mute, Manual, SSB, CW. There is a 3 position Low Cut Filter knob and 4 position High Cut Filter knob. The rear panel features Input Jack A and Input Jack B. There is also a Line Out Jack. All three of these jacks are RCA Phono type. The speaker comes with one audio cable (RCA to 3.5mm mini). The SP-8 also has adjustable front feet. This will allow you to angle the speaker up. The SP-8 also provides the housing for the Yaesu LL-7 Phone Patch (sold separately).
Whether you are a casual operator or a seasoned contester, the Yaesu SP-8 external speaker is a valuable accessory that enhances the overall user experience. Its compatibility with a range of Yaesu transceiver models makes it a versatile choice for amateur radio enthusiasts looking to improve their listening experience.
COMPATIBLE: With FT1000MP, FT920AF, and FT847.
Features;
Manual Frequency tailoring specifically intended for amateur and general communications modes.
Wideband tailoring for broadcast listening, music and FM reception.
Independently adjustable low-cut and high-cut filters offer twelve possible audio response configurations selectable from the front panel, enabling the operator select optimum response under all conditions and modes.
Two separate inputs, selectable by a front panel switch.
Two output jacks (1.4-inch and 3.5mm) for headphones are provided on the front panel.

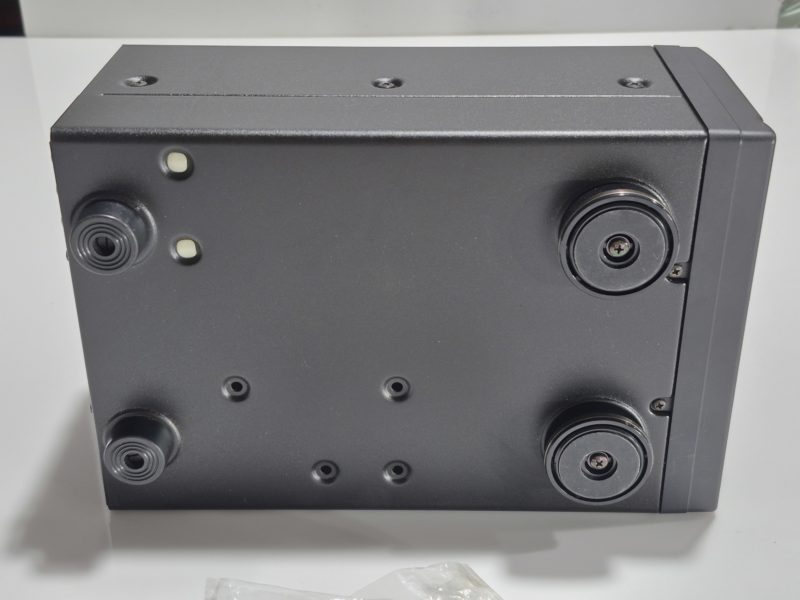

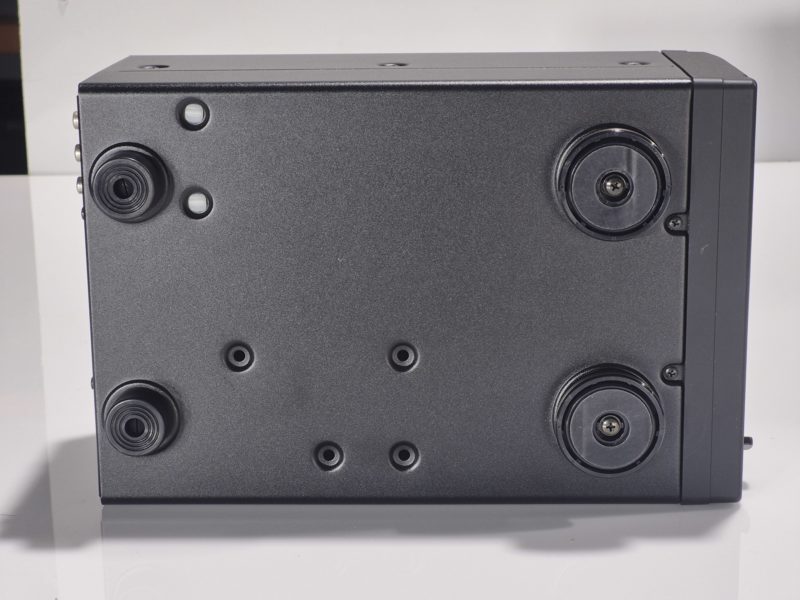

Adjustable front feet.
Specifications: SP-8
Frequency Range: 100 – 1200 Hz
Filter Circuit Selections (approx):
LOW-1: below 300Hz (-6dB/octave)
LOW-2: below 600Hz (-6dB/octave)
HIGH-1: above 2.4kHz (-6dB/octave)
HIGH-2: above 1kHz (-6dB/octave)
HIGH-3: above 700Hz (-6dB/octave)
SSB: above 2.4kHz (low pass filter)
CW: 600 – 700Hz (peak filter)
Speaker Diameter: 120mm
Power Rating: 3 W
Impedance: 8Ω
Case Size: (W x H x D, mm) 200 x 135 x 305
Weight: (Approx, kg) 2.8
