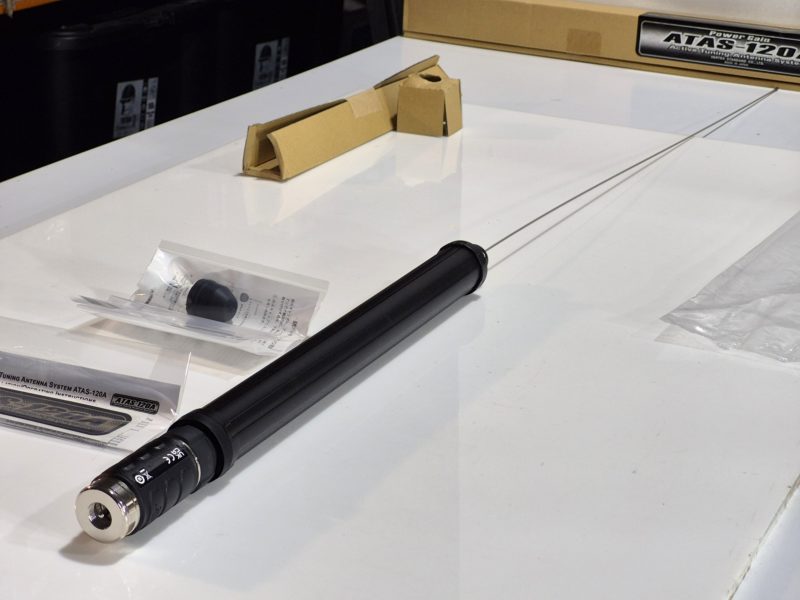

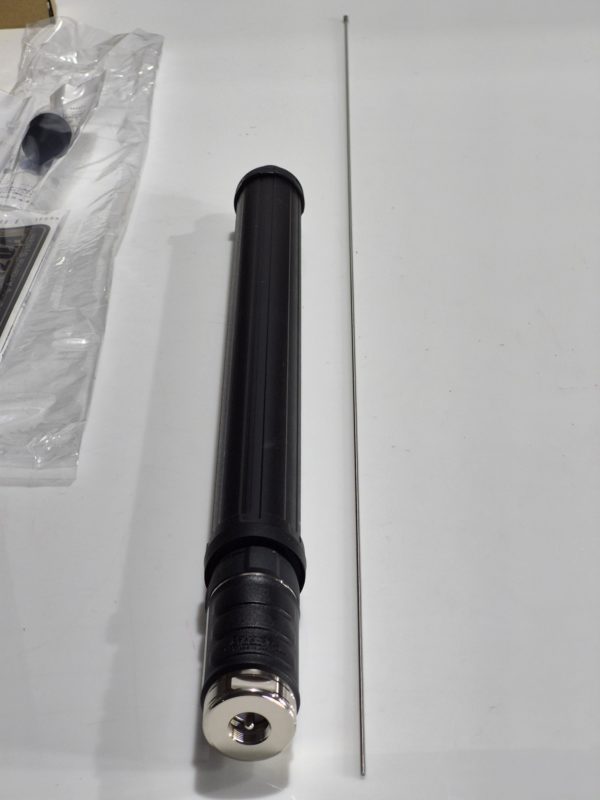

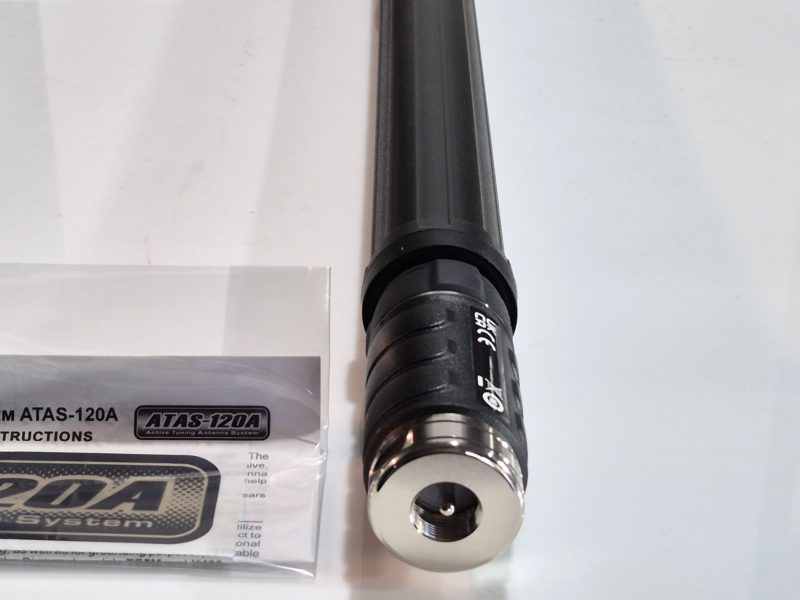

Yaesu ATAS-120A Multi Band Motorized Antenna



ATAS-120A: The ATAS-120A is a unique mobile antenna designed for use with Yaesu the transceivers equipped for the ATAS system. The ATAS-120A utilizes a motorized tuning system which resonates the radiating element for lowest SWR without the need for expensive, inconvenient monoband resonating whip assemblies. The ATAS-120A is designed to mount directly onto a standard mobile antenna mount (not supplied) which is compatible with its Type “M” (“m/m pitch only”) base connector.
Yaesu’s patented ATAS (Active-Tuning Antenna System) provides HF /VHF /UHF coverage with automatic motorized tuning. Utilizing control signals from the transceiver’s microprocessor received via the coaxial cable, the ATAS internal motor adjusts the radiator length for best SWR. The ATAS covers the 7/14/21/28/50/144/430 MHz bands, and is compatible with the FT-FT-991A, FT-891, FT-857D and FT-450D. A tuning box is not required with the ATAS-120A.

Frequency Range: 7/14/2l/28/50/144/430 MHz Amateur Bands
Overall Length: Approx. 1.6m (longest)~1.4m (shortest)
Weight: Approx. 900g
Impedance: 50 Ohms (M-type plug)
Max Input Power: 120W (SSB/CW, 50% Duty)
Mobile Antenna Mount: UHF male
Matched SWR: Less than 2.0 : 1 (with proper counterpoise)
Highly efficient antenna designed for outdoor operation with FT-897/857 series, etc.
