Description

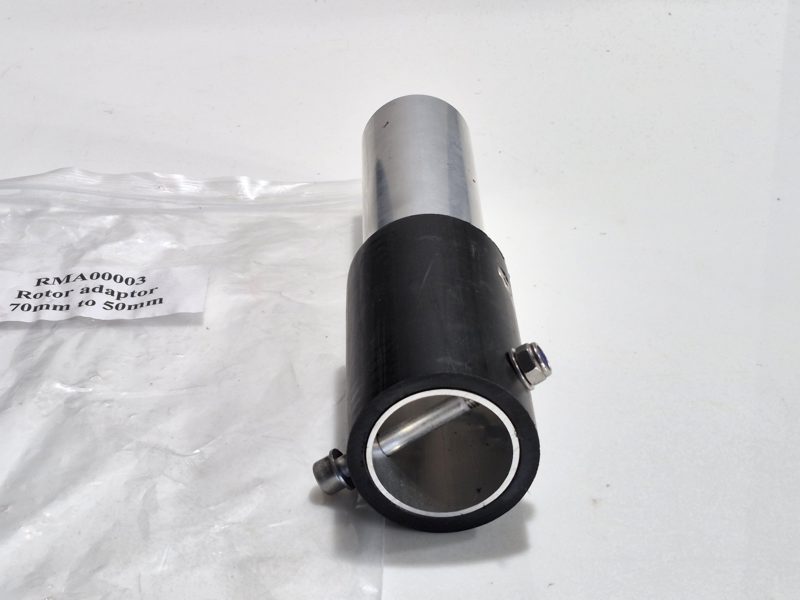

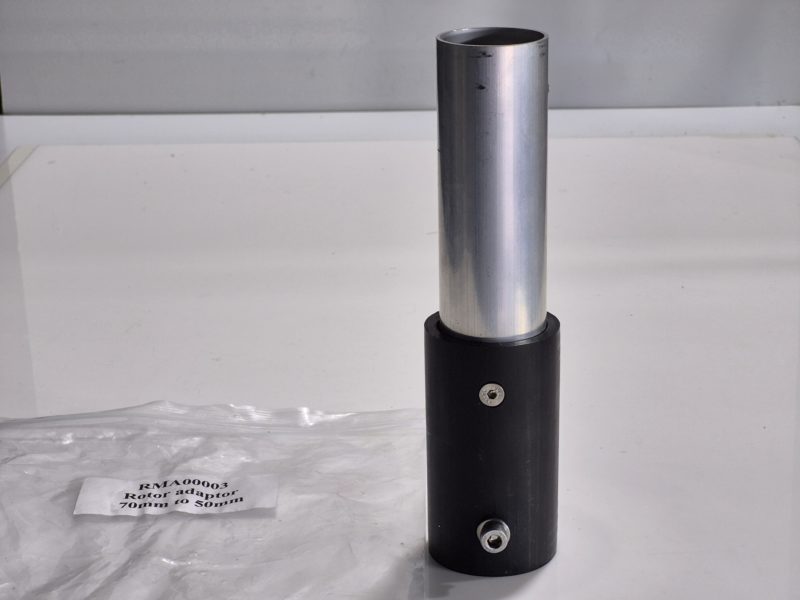

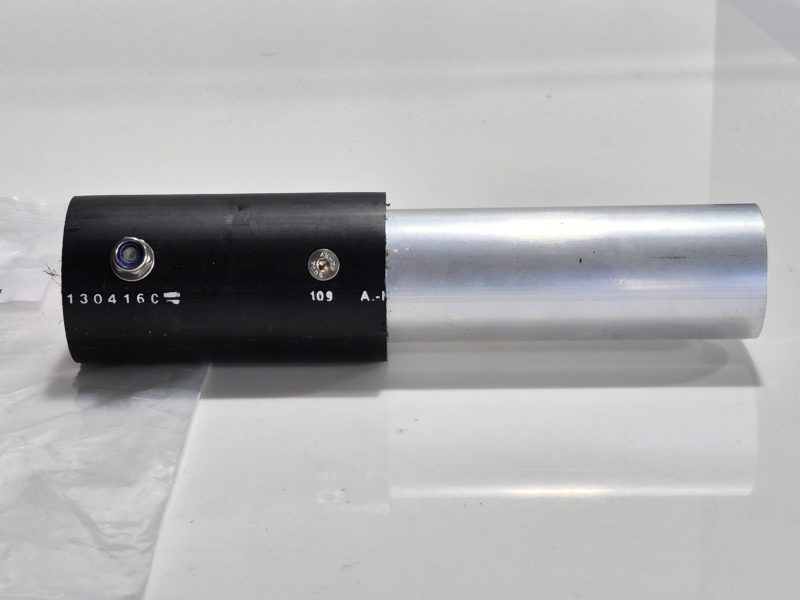

Adaptor 70mm-50mm: When installing our Spiderbeam Yagis or other directional antennas at the top of our aluminium push up masts, it makes a lot of sense to mount the rotator to the bottom of the mast, instead of at the top of the mast.
Keeping the rotator and rotator cable down on the ground reduces the weight and stress on top of the mast, and of course makes it a lot easier to push it up. Keeping the rotator on the bottom also reduces the stress on the rotator itself.
Some rotators are only accepting mast diameters up to 54mm diameter, however our 10m / 10m HD / 12.5m / 15m aluminium push up masts have a bottom diameter of 70mm, which is the reason why we have designed this adaptor piece.
All you have to do is drill a hole through the bottom of your mast, insert the 65mm part of the adaptor into the mast, then put the bolt through the hole in the mast and the adaptor and tighten the nut.
Then you can insert the 50mm diameter tube into your rotator and start turning the mast.
Tubes: Aluminium.
Bolts & nuts: stainless steel
Outer diameter of the top tube: 63-64mm
Outer diameter of the main tube: 50mm
Length: 250mm
Weight: 0,4 kg
