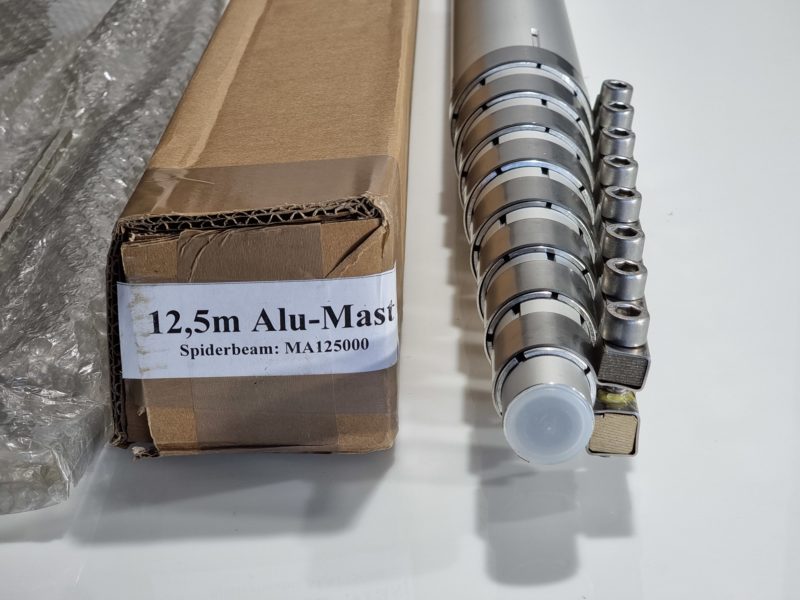

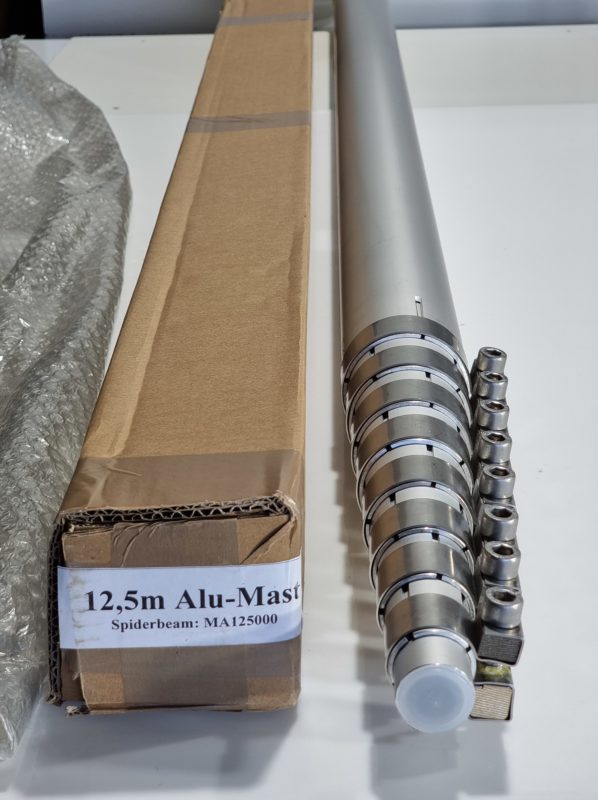

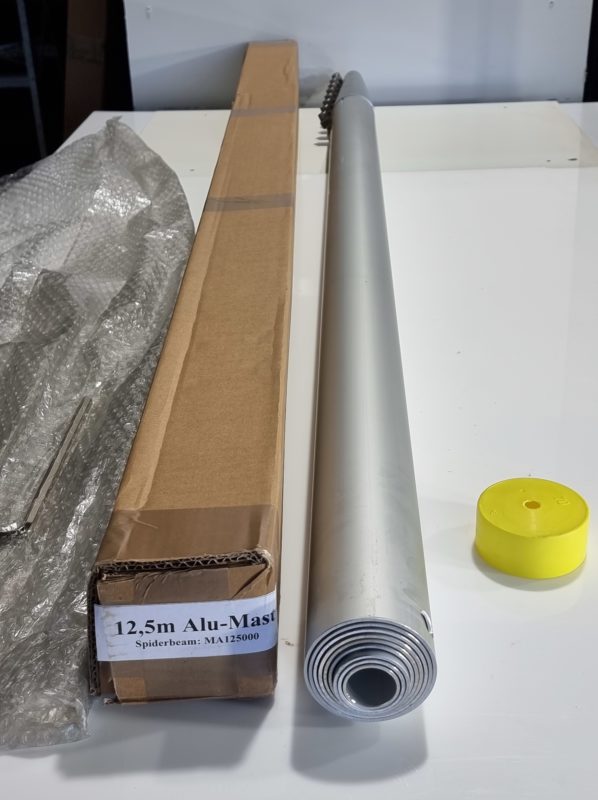

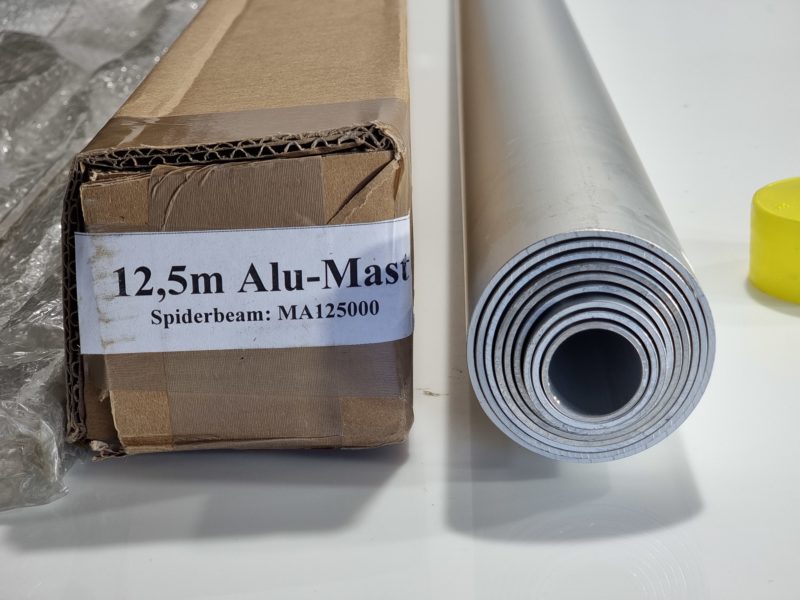

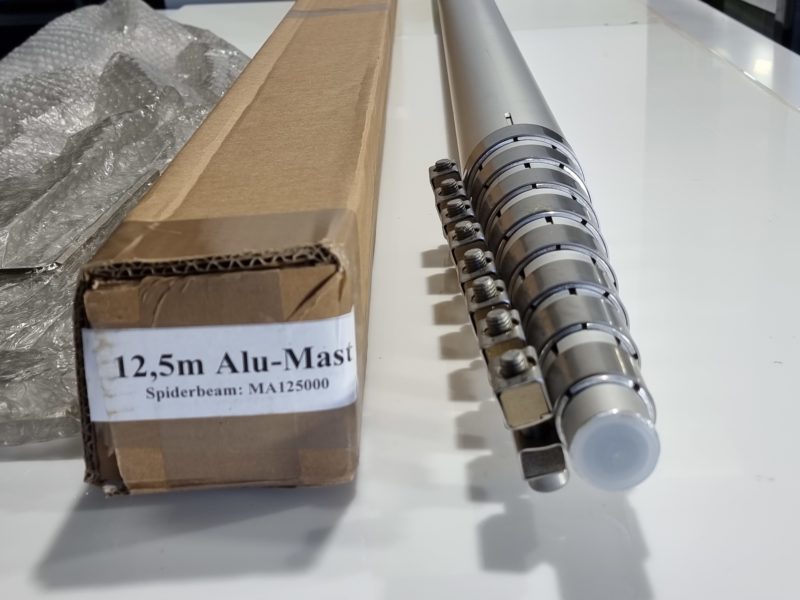

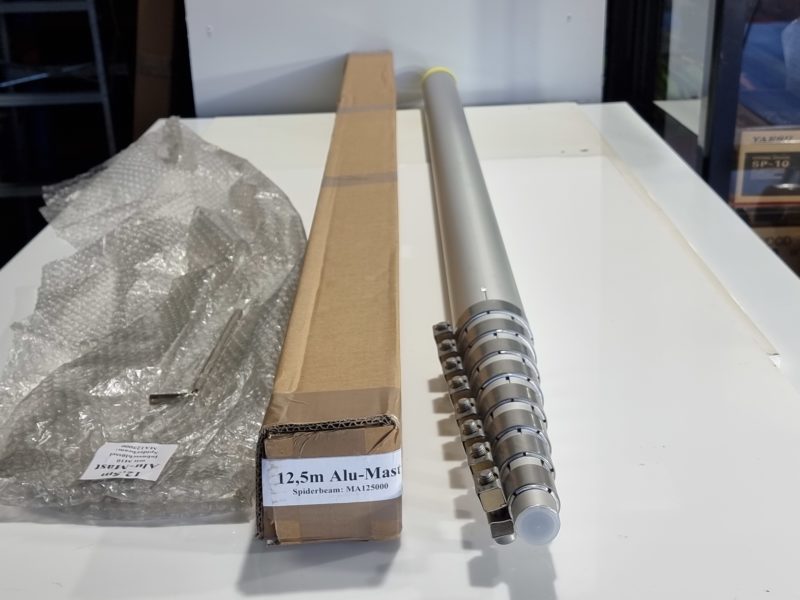

Spiderbeam 12.5m Aluminium Telescopic Mast.




Aluminum 12.5m: This mast was developed for all types of portable operations & DX-pedition’s. With a transportation length of 165cm it is easy to transport by car and can be carried on most airplanes. At its full height of 12.5m it will easily carry a portable Spiderbeam Yagi. The mast can be rotated by hand, or a rotator (e.g. KR-450 or KR-650) can be placed at the bottom and turn the whole mast including the Spiderbeam.

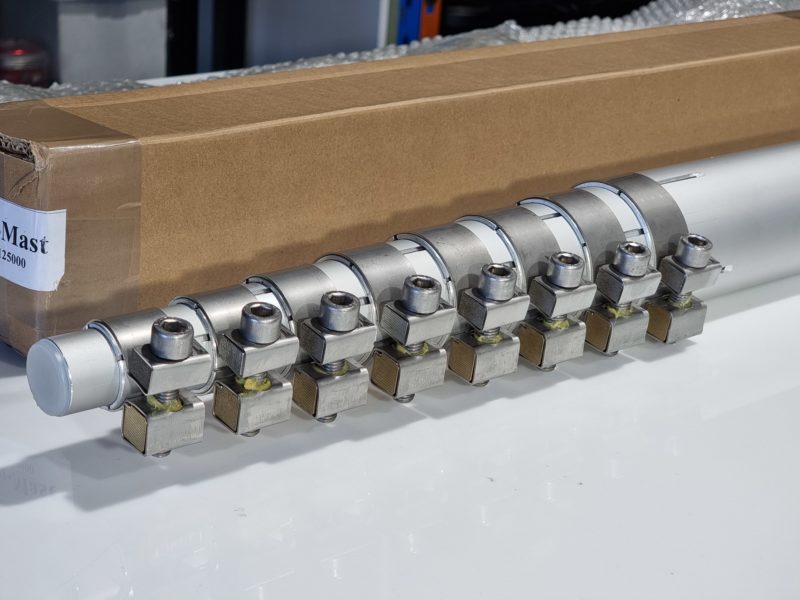

The individual sections are interlocked with strong high quality stainless steel clamps with allen screws. An allen wrench is supplied with the mast and no further tools are necessary. The mast should be guyed at one or two levels.
Very well suited mast for Field day and DX-pedition’s – small and lightweight!

12.5m high aluminum telescopic push-up mast.
Fully extracted length (height):12.5m (41ft)
Transport length: 1.65m (5ft 5″)
Bottom diameter: 70mm (2 3/4″)
Top diameter: 30mm (1 1/6″)
Number of segments: 9
Wall thickness: 2mm (1/12″)
Weight: 12.0kg (26lbs)
