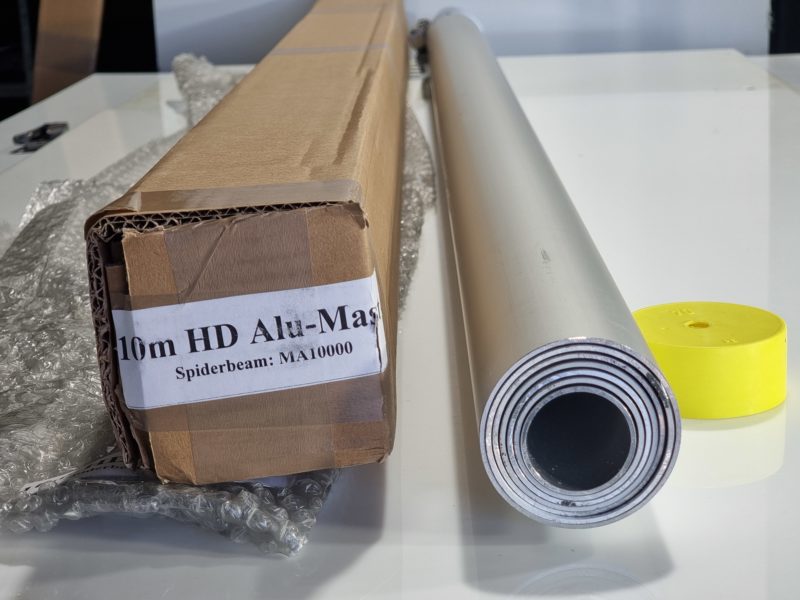

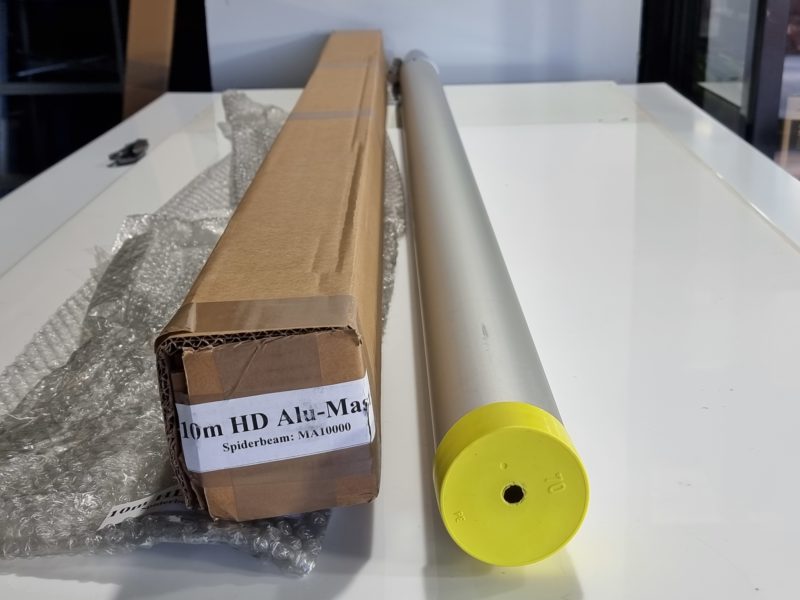

Spiderbeam 10mHD Aluminium Telescopic Mast

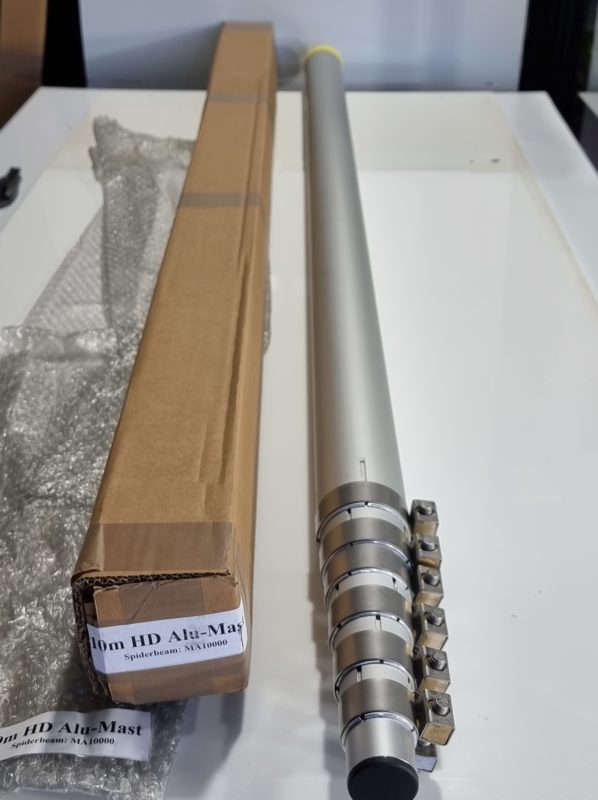

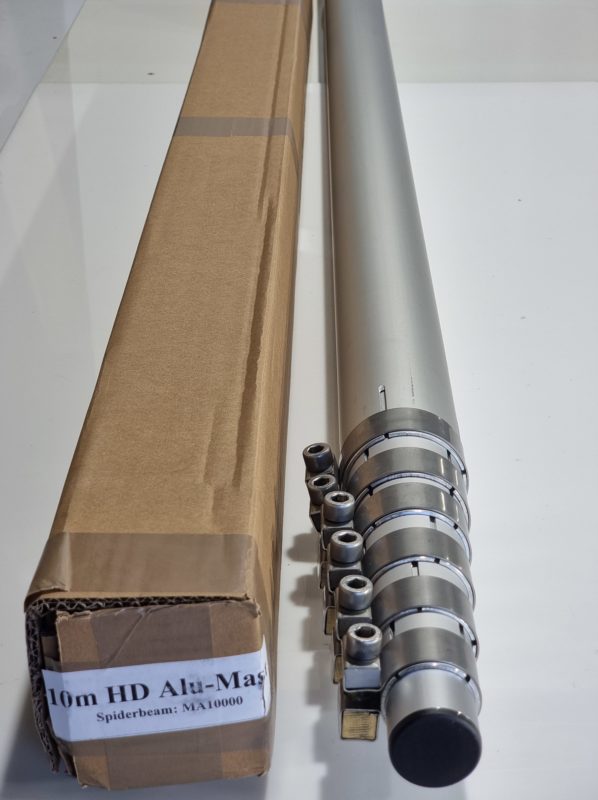

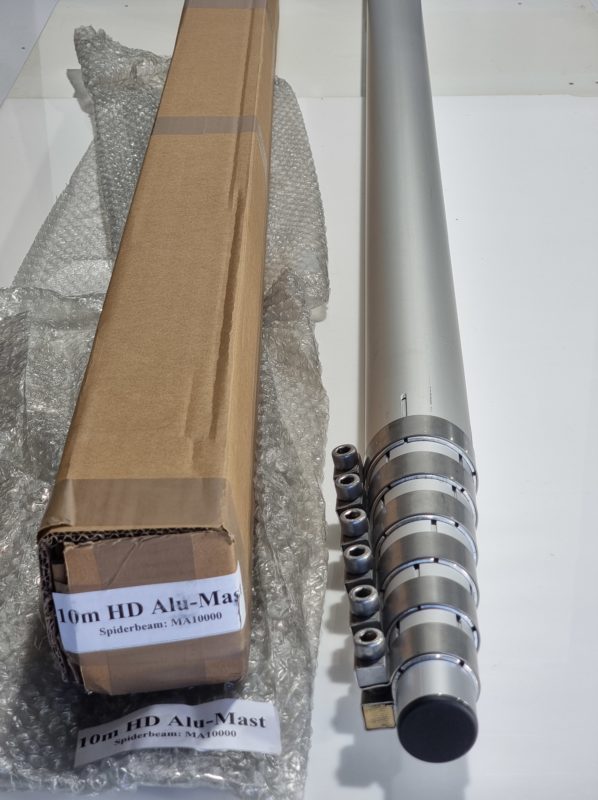

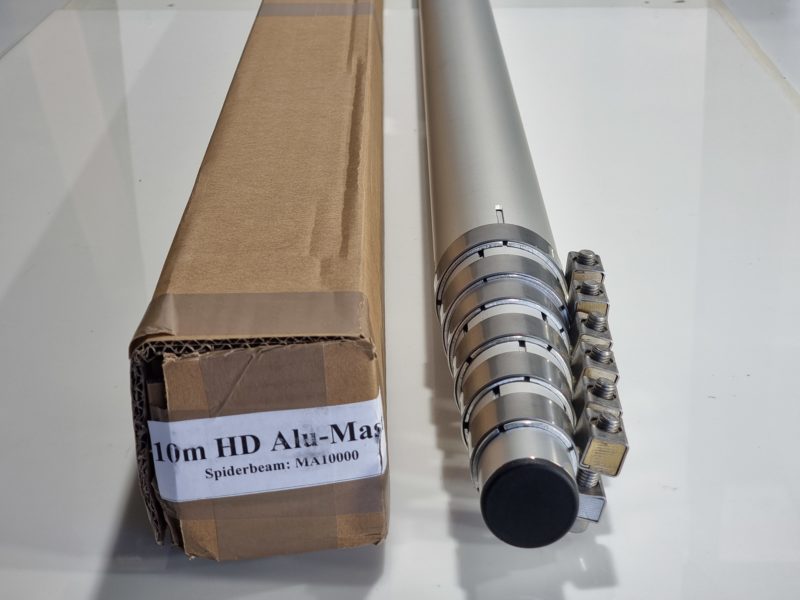

10mHD: The individual sections are interlocked with strong high quality stainless steel clamps with Allen screws. An allen wrench is supplied with the mast and no further tools are necessary. The mast should be guyed at one or two levels. Robust mast for permanent installation. Mount your HD Spiderbeam at full height! This mast was developed especially for our Heavy Duty Spiderbeams. It can be rotated by hand, or a rotator (e.g. KR-450 or KR-650) can be placed at the bottom and turn the whole mast including the antenna.

Specifications: Maximum useable heights.
Mast tube thickness: 2mm (1/12″)
Fully extracted length: 10m (height) (33ft)
Transportation length: 1.70m (5ft 7″)
Bottom diameter: 70mm (2 3/4″)
Top diameter: 40mm (1 1/2″)
Number of segments: 7
Maximum useable heights: Extend mast to maximum height of 10m (33ft)
Weight: 10.5kg (23 lbs)
Pole material: High quality anodized aluminum, strong interlock clamps made from stainless steel.
